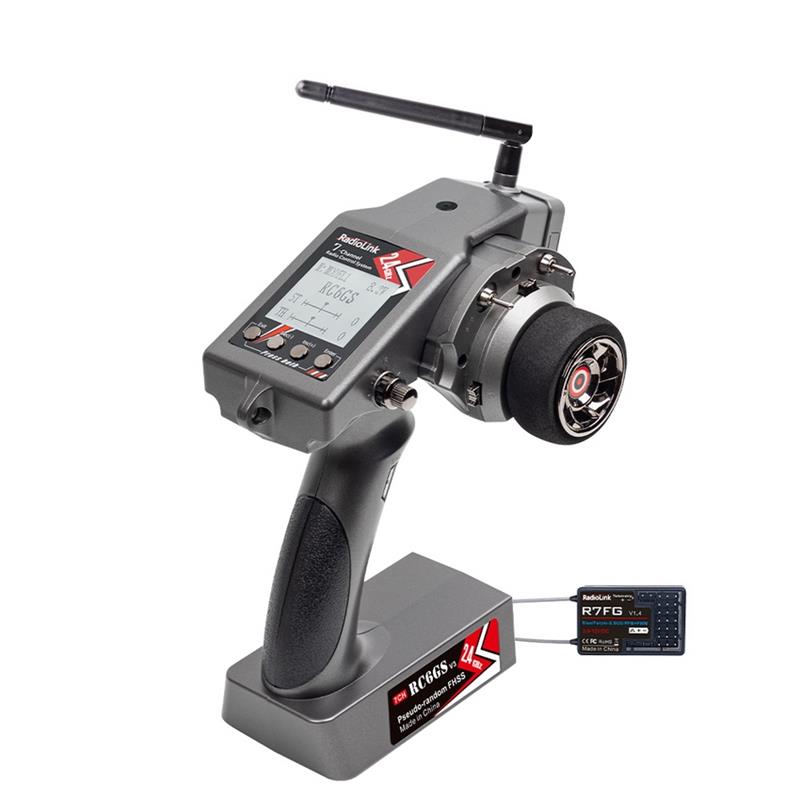

Radiolink RC6GS V3 7CH Radio Transmitter Gyro Integrated For RC Vehicles Car Boat Model Parts

Radiolink RC6GS V3 7CH Radio Transmitter Gyro Integrated For RC Vehicles Car Boat Model Parts
RC6GS V3 Specifications
Brand:Radiolink
Item Name:RC6GS V3 7CH Transmitter
Dimension:174.8*116.4*224.2mm (6.88’*4.58’*8.83)
Weight:319g (11.25 oz)
Channels:7 channels
Battery Case Dimension:89*59*25mm (3.5?? *2.32?? *0.98)
Frequency:2.4GHz ISM band(2400MHz~2483.5MHz)
Applicable Model Types:Crawlers, Tanks, Caterpillars, Remote Controlled Lifebuoy, and other types of RC cars or boats, Robots
Modulation Mode:GFSK
Spread Spectrum Mode:FHSS&67-channel pseudo-random frequency sequence hopping
Memory:30 models
Antenna Length:106mm (4.17??)
Control Range:600m(1968.5ft) (Maximum range tested in unobstructed areas free of interference)
LCD Screen:128*64 resolution, LCD backlight
Operating Voltage:4.8-16.8V, 6pcs of AA batteries or 2S-4S LiPo battery
Operating Current:80-120mA
RF Power:<20dbm
Channel Resolution:4096 with regular jitter of 0.5us
Low Voltage Alarm:Yes, when less than 7.2V or customize on 2S-4S battery, low voltage alarm can be set for each model
Low RSSI Alarm:Yes
Low Model Battery Voltage Alarm:telemetry of maximum 8S (33.6V) model battery voltage
Compatible Receivers:R7FG (std), R6F, R6FG, R8F, R8EF, R4F, R4FGM
CRSF Protocol Supported:is compatible with TBS Crossfire by connect the TBS Crossfire to the DSC port of the RC6GS V3
FPV Head Track Function:Support
Simulator Function:Support
Timer Function:Support
R7FG Specifications
Dimensions:35*22*13 mm??1.37*0.86*0.5′??
Weight:6g (0.21 oz)
Antenna Length:205mm(8.07′)
Channel quantity:7 channels
Signal Output:PWM&PPM/PWM&SBUS
Model Application:Cars/Boats/Robots
Frequency:2.4GHz ISM band(2400MHz~2483.5MHz)
Spread Spectrum Mode:FHSS, 67-channel pseudo random frequency hopping
Voltage Range:3~12V
Operation Current:30mA (base on power voltage)
Control Distance:600 meters on the ground
Real-time Telemetry??The model voltage will display by connecting the wire to the ESC, battery, and Telemetry port of receiver R7FG, no extra module needed.Telemetry of maximum 8S(33.6V) battery supported.
Gyro Mode:Receiver built-in gyro
Compatible transmitter:RC6GS V3/RC6GS V2/RC4GS V2/RC6GS (3-position switch version), RC4GS (version with P.D AFTER 180101)/T8S/T8FB
Features:
7 Channels for Cars, Boats, Lifebuoy, Tracked Robots
600 Meters Control Distance
30 Models Storage, Cruise Control System
Gyro Integrated and HV Servo Supported
Timer and FPV Head Track Function
Telemetry of Maximum 8S Model Battery Voltage
A switch can be set to active D/R
Package Included:
1* RC6GS V3 7CH Transmitter
1* R7FG Receiver
1* Model Battery Voltage Telemetry Module Cable
1* Lanyard
1* Instruction Manual
1* Packing Box
