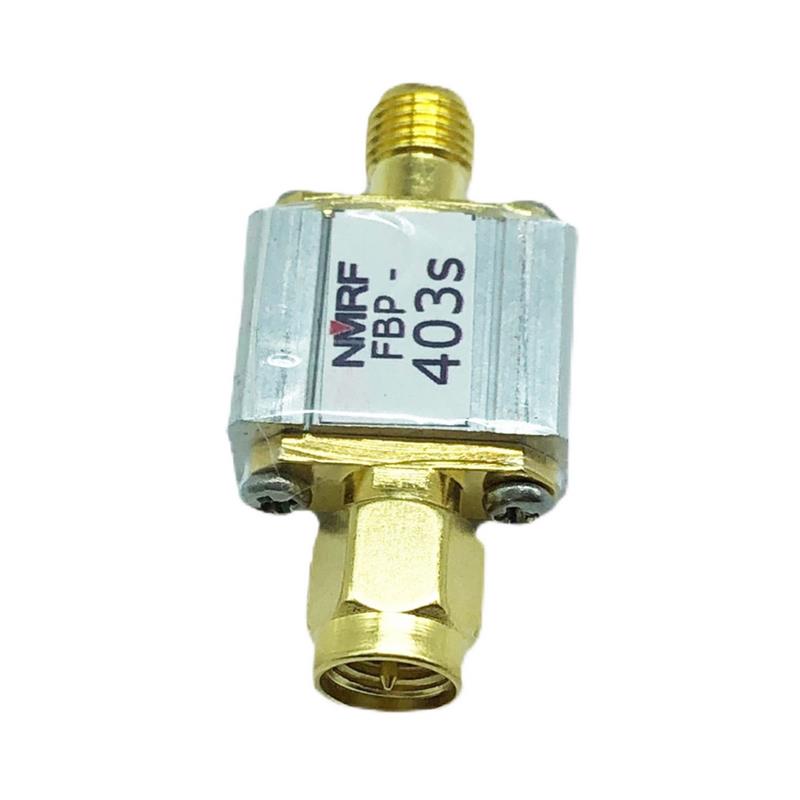

FBP-403s 403MHz SAW Bandpass Filter Band Pass Filter 1dB Bandwidth 4MHz for HAM Radio Amplifier Receiver
Feature:
The filter has low insertion loss and steep cut-off characteristics. It is specially designed for the performance optimization of 403MHz receiving equipment. It can effectively filter out out-of-band signals, reduce noise and increase dynamic range. This product is made of ultra-thin PCB board, which still has excellent restraint ability to the out-of-band remote signal, and its performance is much better than that of the products made of bare PCB board. The product is made of aluminium alloy shielding shell with anti-interference, no stray response outside the band, compact and firm, and easy to use.
Specification:
Model:FBP-403s
Impedance:50 Ohms
Central frequency:403 MHz
Passband:400-406 MHz
Insertion loss:<2.5dB@401-405 MHz
Maximum load capacity:100mW (20 dBm)
Frequency response diagram:
Package includes:
1 x Bandpass Filter
Additional information
| Weight | 0.01 kg |
|---|
