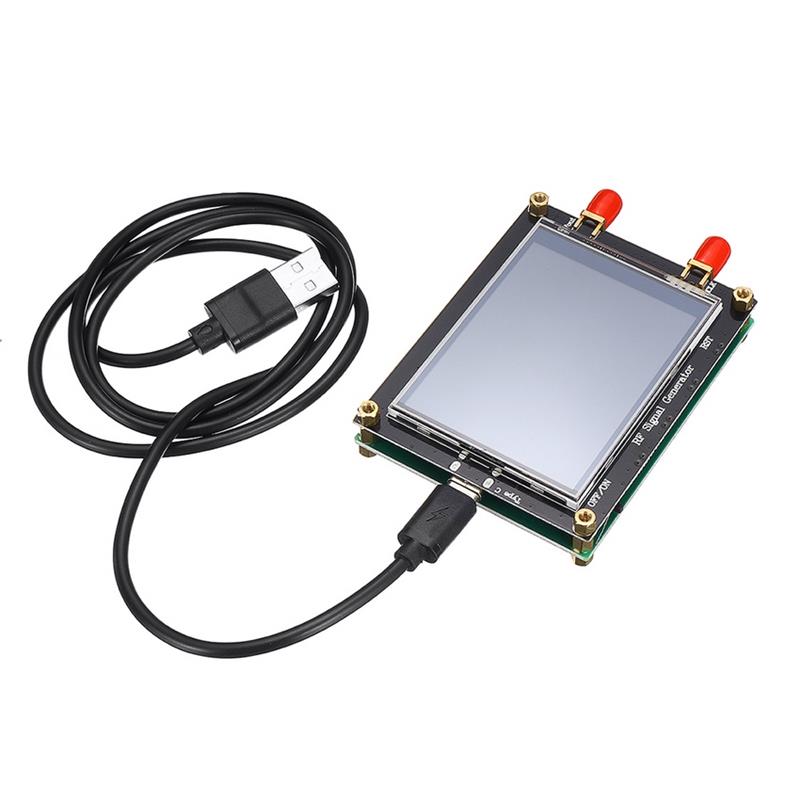

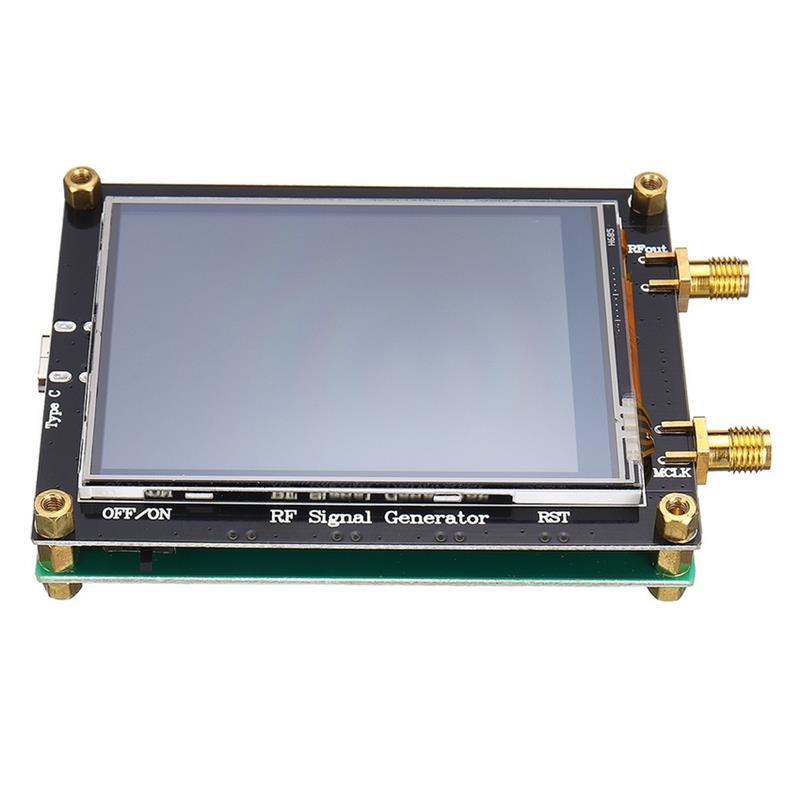

23.5-6000M RF Signal Source 0.5PPM High Stability and Low Noise Frequency Sweep Full Touch Screen PC Controllable

SKU: HA1924910

Original price was: $108.67.Current price is: $73.43.

-32%
Shipping fast worldwide
  • Dispatch:Usually will be shipped in 24 hours
  • Shipping Time:Expedited Express 6-8 business days
  • Secure Payment:Paypal,VISA,MasterCard
Guaranteed Safe Checkouttrust pay
23.5-6000M RF Signal Source 0.5PPM High Stability and Low Noise Frequency Sweep Full Touch Screen PC Controllable
$108.67 Original price was: $108.67.$73.43Current price is: $73.43.

23.5-6000M RF Signal Source 0.5PPM High Stability and Low Noise Frequency Sweep Full Touch Screen PC Controllable
Feature:

Module Parameters
Parameter name Parameter value Remark
Module model MAX2870
Module type Integer-N Frequency Synthesizer
Module power supply ??5V
Module current 0.2A
Module communication protocol SPI
Output amplitude -4-5dBm
Module output frequency range 23.5MHz-6000MHz
Input channel 1 channel
Output channel 1 channel
Range of working temperature -40??~+85??
Module power supply interface Type-C
Module output signal Sine wave
Module input and output interface SMA 24-hour salt spray anti-oxidation
Module application Wireless infrastructure, test and measurement, satellite communications, wireless LAN/CATV, Junshankou Hangzhi Aerospace, PMAR/LMAR/public safety radio, clock generator
Module weight 65.5g Weight
Module specifications 81.5*62.85*8.26 Length*width*height-PCB(mm)
Module interface type SMA signal output and external clock input, Type-C 5V power supply interface

Module Features:
Module power supply:5V@0.2A
Output and external clock interface:SMA- (inner screw inner hole)
On-board default high-precision 25MHz 0.5ppm TCXO (can also be replaced by yourself or an external crystal oscillator)
Output frequency range:internal VCO fundamental frequency is 3-6GHZ, below 3GHz is obtained by fundamental frequency division. Full touch screen frequency input
Output amplitude:-4 to 5dBm, 4 levels of touch screen control
Output frequency mode:point frequency, sweep frequency optional touch screen control
Module Description:
1. The MAX2870 is an ultra-wideband phase-locked loop (PLL), integrated voltage-controlled oscillator (VCO), and can work in integer and fractional-N frequency division modes.
2. With external reference clock oscillator and Huna filter, MAX2870 can form a high-performance frequency synthesizer to generate a clock in the frequency range of 23.5MHz to 6000MHz, and can maintain excellent phase noise and spurious indicators. The internal coverage of 3000MHz to 6000MHz range The multi-channel integrated VCO and 1-128 output frequency divider are used to achieve an ultra-wide frequency range clock output. Compatible with 1.8V control logicc.
3. The characteristic of the RF signal source module is that the onboard default high-precision 25MHz 0.5ppm TCXO, the internal VCO base frequency output frequency range is 3-6GHZ, and the base frequency touch is below 3GHz.
4. This RF signal source module is a full touch screen frequency input, the output frequency mode is dot frequency, and the sweep frequency is optional.
5. The RF signal source adopts a lead-free, RoHS-compliant 5mmx5mm, 32TQFN package, and the operating temperature range is extended to 40??C to 85??C.
6. It can be controlled by PC, output amplitude:-4~5dBm, 4-level touch screen control.
Chip Features:
– Integer/fractional N division mode
– Manual or automatic selection of VCO
– 23.5MHz to 6000MHz base frequency VCO
– Output binary buffer/driver for expanding frequency range
1/2/4/8/16/32/64/128
23.5MHz to 6000MHz
– High performance PFD
105MHz in integer-N frequency division mode
In fractional-N mode, 50MHz
– Up to 200MHz reference clock frequency
– +3.0V to +3.6V power supply
– Two programmable amplitude outputs -4dBm to +5dBm
– Analog and digital lock detection indication
– Hardware and software shutdown control
– Compatible with 1.8V control logicc
Package includes:
1 x Module
1 x Cable
