[US DIRECT] New ATOMSTACK P7 M40 Portable Laser Engraving Machine Cutter Wood Cutting Design Desktop DIY Laser Engraver New Eye Protection Design Upgrated Ultra-Fine Laser Focal Area
Specification:
| Item Model Number | ATOMSTACK P7 M40 |
| Print Size | Recommend Print Size 200*200mm |
| Engraving Materials | Wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel; |
| Cutting Materials | Cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather; |
| Laser Output Power | 4.5-5.5W |
| Wave Length | 445 ?? 5nm |
| Engraving Accuracy | 0.01mm |
| Focusing Method | Fixed focus laser, no need to focus |
| Laser Protective Cover | Protect the user’s eyes and prevent pets from grabbing the laser spot. |
| Operating Software | LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system. |
| Input Format | NC, BMP, JPG, PNG, DXF, etc. |
| Data Transmission Method | USB Connection |
| Input Voltage | AC100-240V, 50/60Hz |
| Output Voltage | DC12V, 5A |
| Certification | CE FCC RoHS FDA PSE |

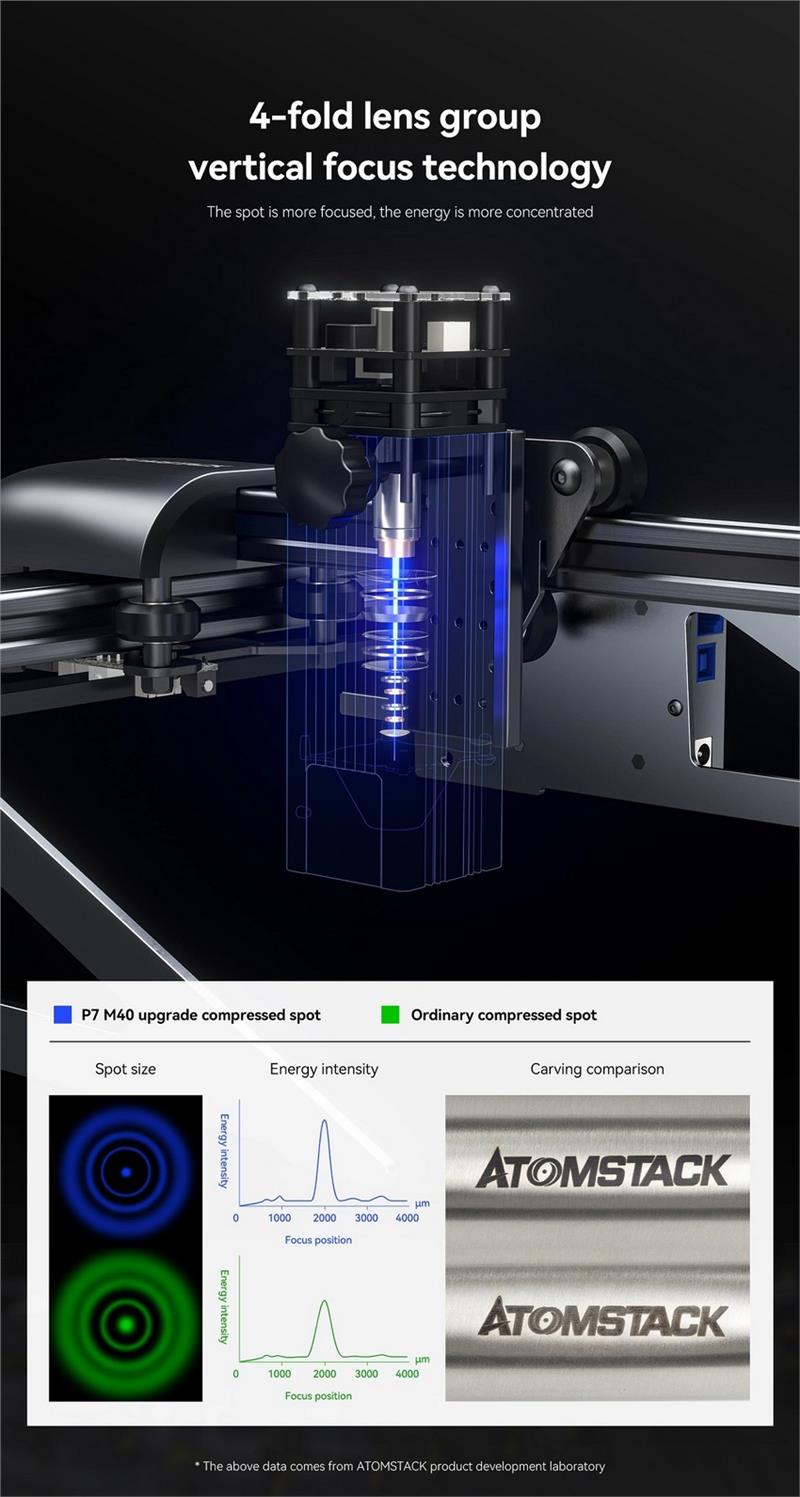

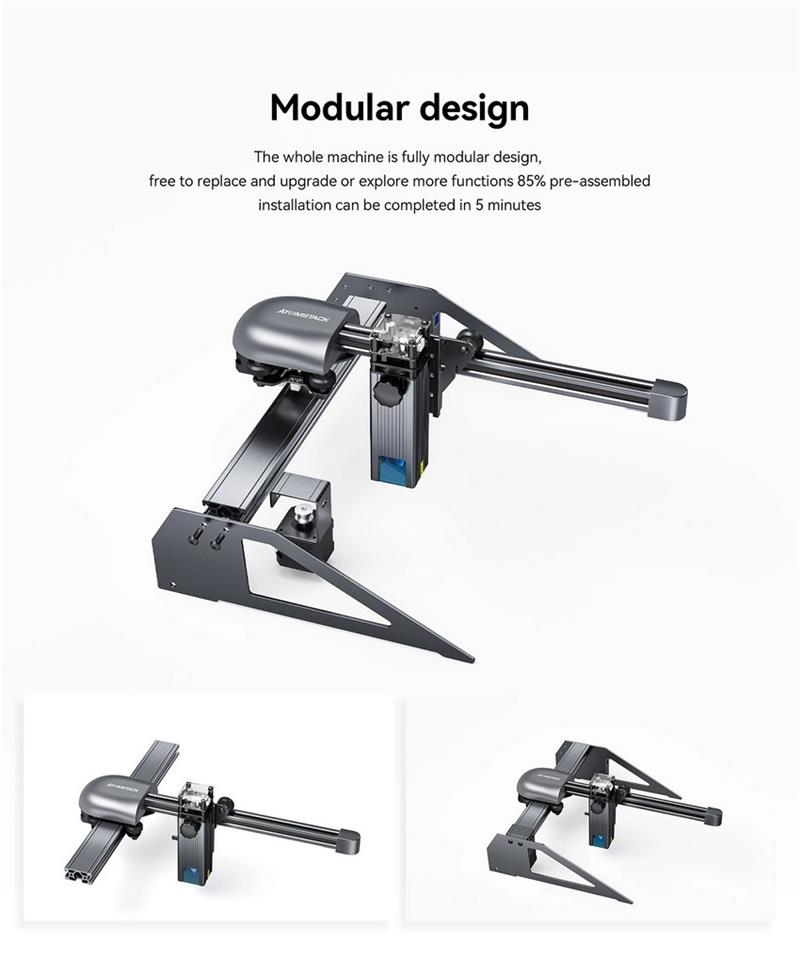

| Features | 1. Eye-protection flame-retardant filter panoramic glass:The flame-retardant filter panoramic glass can filter 97% of the ultraviolet light, which plays a very good role in protecting your eyes. You and the people around you do not need to wear goggles, you can also clearly Watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles. The glass is flame retardant and safer to use. 2. Robust and easy-to-install structure design:The all-aluminum alloy anodized structure design makes the machine more durable and improves the accuracy of engraving. The portable all-metal structure, 85% pre-assembly, can be installed in 5 minutes. 3. Upgraded version of high-performance fixed-focus laser:Engraving can be done without adjusting the focal length; the newly upgraded compressed spot increases the energy concentration by 200%, and the spot size is only 0.02mm2, which can take into account both precision engraving and high-energy cutting. At the same time, the laser power of fixed-focus laser is more stable than that of zoom laser. 4. Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support Apple system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc. 5. Precise scale lines axis:There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 200*200mm large area engraving interval can meet your various engraving needs. 6. Newly upgraded ultra-fine compression laser:The laser adopts 4-fold lens group collimation and focus technology, the optical power is 4.5~5.5W, the laser focus area is reduced to 0.02mm2, the high-density laser can easily cut 10mm thick wood boards and 6-8mm black acrylic ; Can directly engrave mirror stainless steel metal and ceramics. 7. Integral screw rod:The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable. 8. New laser with knob:It is more convenient and quick to adjust the height of the laser. 9. The new laser is equipped with a horizontal gyroscope:It stops working immediately when it is tilted to ensure your safety 10. Colorful gift box packaging:More beautiful and more convenient to give gifts. |
| Recommend Match | ATOMSTACK R3 24W Automatic Rotary Roller:Click Here ATOMSTACK Laser Cutting Honeycomb Board:Click Here |
| Note | When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles. Please do not touch the laser emitter with your hand, or it may burn your hand. Please avoid strong impact on the machine. Children under 14 are not allowed to use this product and children over 14 need adult supervision. The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser. |
Package Included:
| 4x | Assembly block |
| 1x | Laser |
| 1x | Laser Slide |
| 4x | Foot pad foam |
| 1x | USB Cable |
| 1x | Open Wrench |
| 1x | Y-axis belt assembly |
| 1x | Marker |
| 5x | Cable Tie |
| 4x | Screw |
| 2x | Hexagonal Wrench |
| 3x | Wood Chips |
| 1x | Fixed focus film |
| 3x | Acrylic sheet |
| 1x | Cutting pad |
| 1x | Lower support foot |
| 1x | Upper support foot |
| 1x | Control box |
| 1x | X axis assembly |
| 1x | Y axis assembly |
| 1x | Power adapter |
| 1x | Power cord |
More Details:
Additional information
| Weight | 5 kg |
|---|
