ATOMSTACK M4 Desktop Fastest Engraver 12m/s Handheld High Precison High Speed 10W Optical Power End Pump Fiber Marking Machine

ATOMSTACK M4 Desktop Fastest Engraver 12m/s Handheld High Precison High Speed 10W Optical Power End Pump Fiber Marking Machine
Upgrade version ID:1973105(click to check)
ATOMSTACK M4 Desktop Fastest Engraver 12m/s Handheld High Precison High Speed 10W Optical Power End Pump Fiber Marking Machine Most Safe Machine
??Industrail-grade Fiber Laser Marking??High-voltage pulse 10W optical power enables ATOMSTACK M4 fiber laser engraver to achieve industrial-grade marking effect. Combines galvanometer technology and light shaping technology, the marking speed is greatly improved to 720000mm/s and the mark accuracy reaches 0.001mm. The unique 1064nm wavelength cold light laser is safer and will not burn human body.
??Desktop and Handheld 2 in 1??Not only supports the usual desktop laser engraving and marking, ATOMSTACK M4 laser engraver also supports handheld laser marking. Equipped with a handle, built-in TF card, and the engraving head weighs only 5kg, it can be easily held to engrave more items, getting rid of the shackles of computer and desktop.
??Easy to Use and Smart Design??ATOMSTACK M4 laser engraving and marking machine has a full-metal sturdy structure and adopts smart designs. In 70x70mm engraving area, it adopts double red light positioning and one-key marking function to simple the operation.
??Applicable Materials and Ranges??ATOMSTACK M4 fiber engraving marking machine can engrave common metals and alloys, rare metals and alloys, metal oxides , special surface treatment, ABS material, ink, epoxy resin, Leather, wood (lacquered), ceramic (lacquered), stone, etc. It is ideal for both people and factory which runs engraving and marking business and people who enjoys the fun of engraving.
??Suitable Software and File Format??ATOMSTACK M4 fiber laser marking machine supports SeaCAD5.1(free) operating software; supports Windows XP, Windows VISTA, Windows 2003, Windows 7 and Windows 10; support PLT, DXF, BMP, JPG, JPEG and other image files; support Code39, EAN, PDF417, DM and other 1D barcodes and 2D barcodes; support marking dynamic files; If you have any questions, please feel free to contact us.

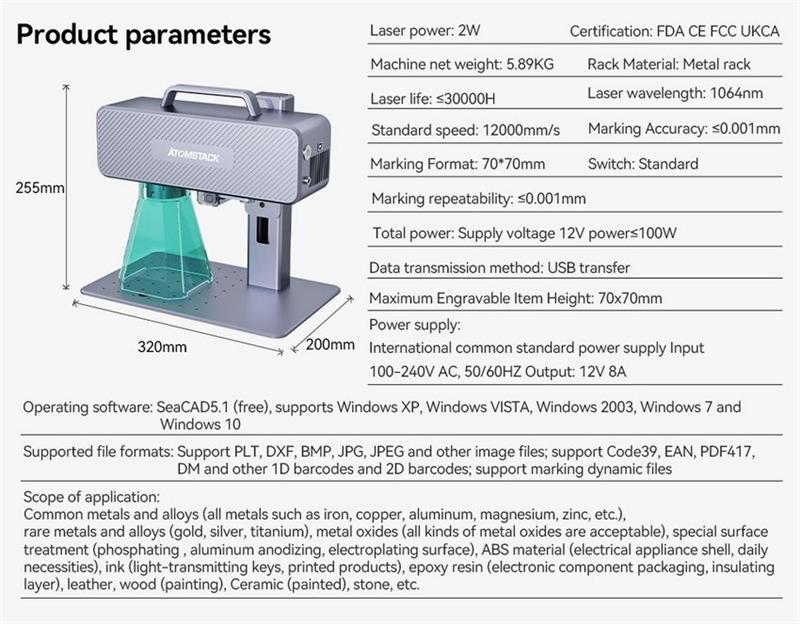

Product DescriptionSpecification
Equipment weight:6.77KG (gross weight), 5.89KG (net weight)
Marking range:70*70mm
Marking accuracy:??0.001mm
Marking repeatability:??0.001mm
Marking speed:72000mm/s
Marking line width:The minimum line width is about 0.03mm, and the minimum character is about 0.06mm*0.15mm (focusing film test results)
Marking depth:0.015-0.2mm
Laser power:5W
Laser service life:??30000H
Laser wavelength:1064nm
Ambient temperature:0-35??
Cooling method:built-in fan
Machine power:supply voltage 12V, power ?? 100W
Operating software:SeaCAD5.1 (free), supports Windows XP, Windows VISTA, Windows 2003, Windows 7 and Windows 10
Supported file formats:Support PLT, DXF, BMP, JPG, JPEG and other image files; support Code39, EAN, PDF417, DM and other 1D barcodes and 2D barcodes; support marking dynamic files;
Height adjustment scale:standard
Rack material:metal rack
Data transmission method:USB transmission
Power supply:International common standard power supply
Input:100-240V AC, 50/60HZ
Output:12V 8A
Power switch:Standard
Certification:FDA CE FCC UKCA
Application range:common metals and alloys (all metals such as iron, copper, aluminum, zinc, etc.), rare metals and alloys (gold, silver, titanium), metal oxides (all kinds of metal oxides are acceptable), special surface treatment (phosphating, aluminum anodizing, electroplating surface), ABS material (electrical appliance shell, daily necessities), ink (light-transmitting keys, printed products), epoxy resin (encapsulation of electronic components, insulating layer), leather, wood (upper lacquer), ceramic (painted), stone, etc.
Equipment size:320*200*255mm (L*W*H)
