25.5×25.5mm Happymodel X12 5in1 AIO Flight Controller 1-2S Built-in 12A ESC 5.8G 48CH OPENVTX Receiver for Bassline Mobula8 FPV RC Racing Drone
At present, the stock of ELRS Version are new ELRS V2.1 Version.
Introduction:
The world first 5-IN-1 AIO flight controller, OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently.
It comes with onboard SPI ELRS receiver which support ELRS TX module 2.x firmware, and also provide other receiver option like SPI Frsky receiver which support Frsky D8/D16 , REDPINE and SFHSS.
This is an amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.
Specifications:
Brand Name:Happymodel
Item Name:X12 AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX
Betaflight firmware target:
ELRS Version:CRAZYBEEF4SX1280
FRSKY Version:CRAZYBEEF4FR
PNP Version:CRAZYBEEF4DX
LITE Version:CRAZYBEEF4SX1280
VTX antenna:U.FL
Weight:5.1g
Support 1-2S Lipo/LIHV battery
Size:30mm*30mm*8mm

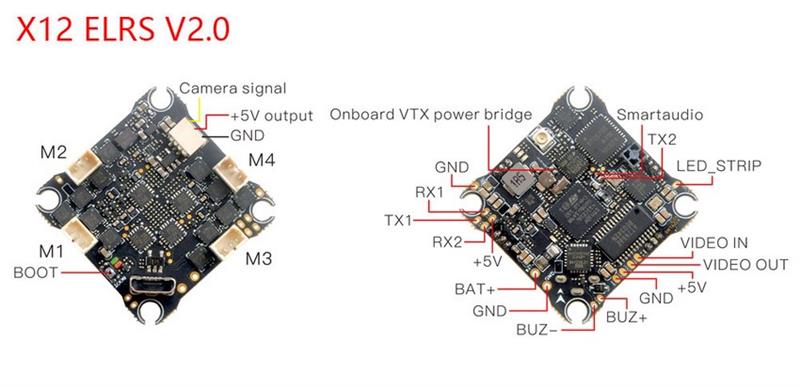

| Flight controller | X12 ELRS V2.0 flight controller built-in ELRS 2.4G receiver Target:CRAZYBEEF4SX1280 X12 Frsky V1.0 flight controller built-in FRSKY 2.4G receiver Target:CRAZYBEEF4FR X12 PNP V1.0 flight controller without onboard receiver Target CRAZYBEEF4DX X12 LITE V1.0 flight controller built-in ELRS 2.4G receiver Target:CRAZYBEEF4SX1280 MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor:MPU6000 or ICM20689 or BMI270(SPI connection) Mount hole size:25.5mm*25.5mm Power supply:1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw Built-in ExpressLRS 2.4G,Frsky D8/D16 Built-in voltage meter sensor , voltage meter scale 110Built-in current meter sensor , current meter scale 470 |
| Onboard 4in1 ESC | Power supply:1-2S LiPo/LiPo HV Current:12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware:Z_H_30_REV16_7.HEX Default protocol:DSHOT300 Support Bluejay firmware When use Blujay firmware with 48khz, should set startup power to 1100/1200 |
| Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option:50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version:V2.0 RF Frequency:2.4GHz Antenna:SMD antenna Telemetry output Power:<12dBm Receiver protocol:SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn??t flash separately ExpressLRS firmware |
| Onboard Frsky SPI D8/D16 receiver Version | SPI BUS receiver CC2500 RF Compatible Non EU transmitter D8 model Channels:8ch No ground interference ( Transmitter and receiver 1 m from the ground):200meterFailsafe support Support Frsky D8/ D16 , Redpine , SFHSS |
| Onboard 5.8g OPENVTX | Firmware version:OPENVTX Smartaudio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power:0/RCE/25mw/100mw/400mw Power supply:DC 5V Current (5v):<650ma (400mw) Antenna connector:U.FL |
Package Included:
1x Happymodel X12 5in1 AIO Flight Controller
Additional information
| Weight | 0.01 kg |
|---|---|
| Receiver: No selection | ELRS Version, Frsky Version, Lite Version, PNP Version |
