1.6MHz-30MHz 0.1W-11W QRP SWR Mini Desktop Shortwave Power Standing Wave Meter Built-in 400mAh Lithium Battery

1.6MHz-30MHz 0.1W-11W QRP SWR Mini Desktop Shortwave Power Standing Wave Meter Built-in 400mAh Lithium Battery
Description:
This shortwave standing wavemeter is designed base on G8GYW open source, and this power standing waves meter is designed for shortwave radio. Built-in large capacity battery to supply long working time. If you are looking for this product, come and have a try, it will not let you down.
Features:
This shortwave standing wavemeter is designed base on G8GYW open source.
This power standing waves meter is designed for shortwaves radio.
Portable size and easy to carry, you can take it or store it easily.
Built-in large capacity lithium battery to provide a long service time and you can recharge it in time.
Applicable frequency ranges is 1.6MHz-30MHz and power measurement ranges is 0.1W-11W.
Support serial communication, serial calibration, USB firmware upgrade.
You can write the firmware and host computers by yourself, and expand the alarm output.
The power measurement and standing wave measurement keep one decimal place by default, and the communication data are two decimal places.
Specification:
Applicable frequency range:1.6MHz-30MHz
Power measurement range:0.1W-11W
Power measurement accuracy:better than ??5% (the data is under the default ambient temperature of 22 degrees; the error will change with temperature changes)
Standing wave measurement range:1.0-19.9
Insertion loss:<0.15dB
Insert VSWR:<1.02@50??

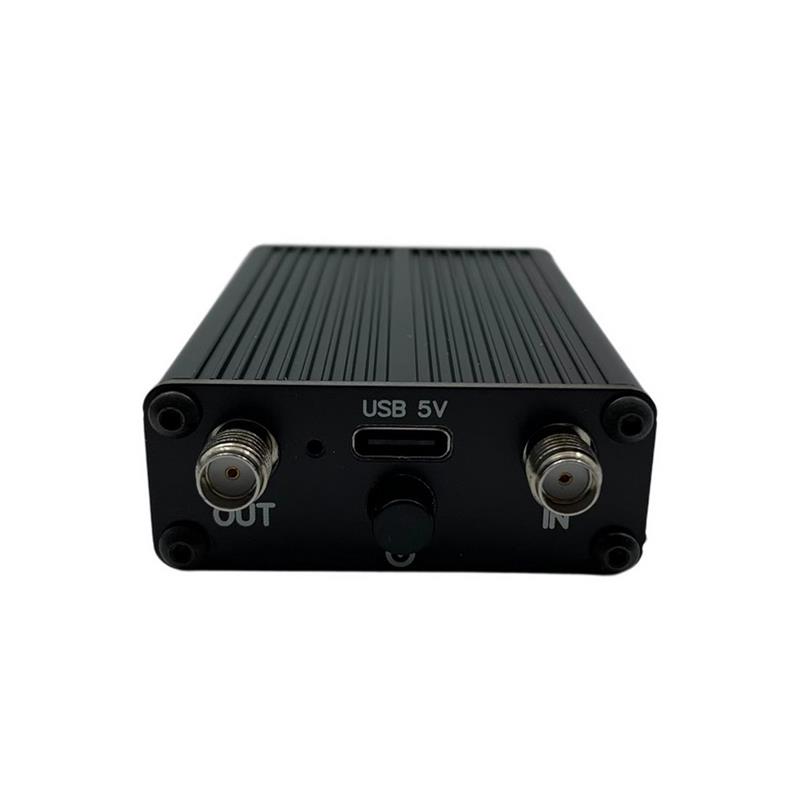

RF interface type:SMA (external screw and inner hole)
Communication and charging interface type:type-c
Shell size:63mm x 46mm x 19mm (excluding protruding parts)
Built-in lithium battery capacity:400mAh (can be used continuously for more than 30 hours)
Instructions for use:
1) The red light is displayed when charging, and the light is off when fully charged;
2) The version information and battery voltage information will be displayed after booting, the power standing wave measurement interface will be displayed after 2 seconds, and the battery level will be displayed in the lower right corner;
3) A programmer is required to upgrade the firmware of the regular version.
Package included:
1 x Main unit
1 x Type-c data cable
2 x SMA to BNC adapters
