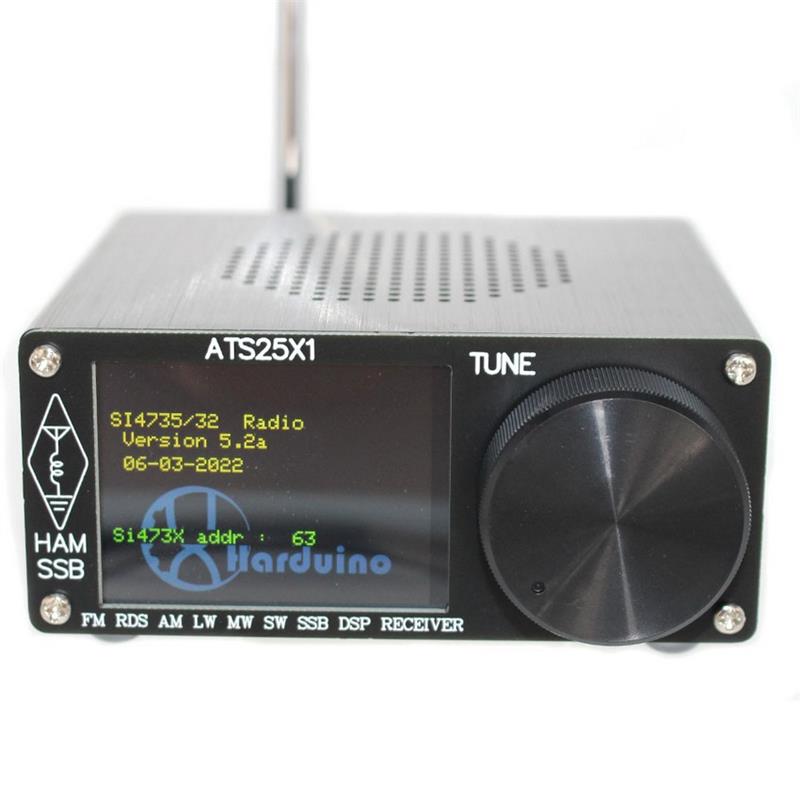

Upgraded ATS25X1 2.4Inch Touch Screen Si4732 Chip All Band Radio Receiver DSP Receiver FM LW MW and SW SSB
ATS25X1 is an upgraded version of ATS-25+.
The upgraded version adds the following 5 functions.
1. Spectral scanning function
2. Backlight adjustment
3. Backlight off
4. Battery voltage
5. Battery percentage
Description:
This all-band radio receiver with powerful functions, with 2.4inch touching screen for you to read more clearly, also support 3.5mm stereo audio output and with built-in battery.
Features:
With 2.4inch touching screen, so you can read the data more clearly, and give you a better using experience.
Built-in large capacity lithium battery, you do not need to worry about sudden power outages affecting your use.
Support TYPE-C interface to upgrade program, and 3.5mm stereo audio output, also support 3.5mm audio jack FM antenna.
With the radio search function and input frequency directly on numeric keypad, also with the HAM band quick channel.
Comes with pull rod antenna, cover and data cable for you to use together.
Portable size and easy to carry, you can take it with you or share it with your families and friends.
Specification:
Material:aluminium Alloy
Color:black
Frequency:
FM:64~108MHZ/RDS function
LW:153~500KHZ
MW:520~1710KHZ
SW:1730~30000KHZ
SSB:1730~30000KHZ
Antenna interface:BNC
Support AM bandwidth ranges:1~6K
Support SSB bandwidth ranges:0.5~4K
Output audio power:1.5W
Battery:1 x lithium battery, 2000mAh (included)
Shell size:120 x 115 x 48mm (excluding protruding parts)
Package size:140 x 115 x 55mm / 5.5 x 4.5 x 2.2in
Package weight:500g / 1.1lb
Package included:
1 x ATS-25 Radio Receiver
1 x Antenna
1 x Type-c Cable
1 x Mirror wipe
1 x 3 in 1 screwdriver
Additional information
Weight | 0.507 kg |
---|
