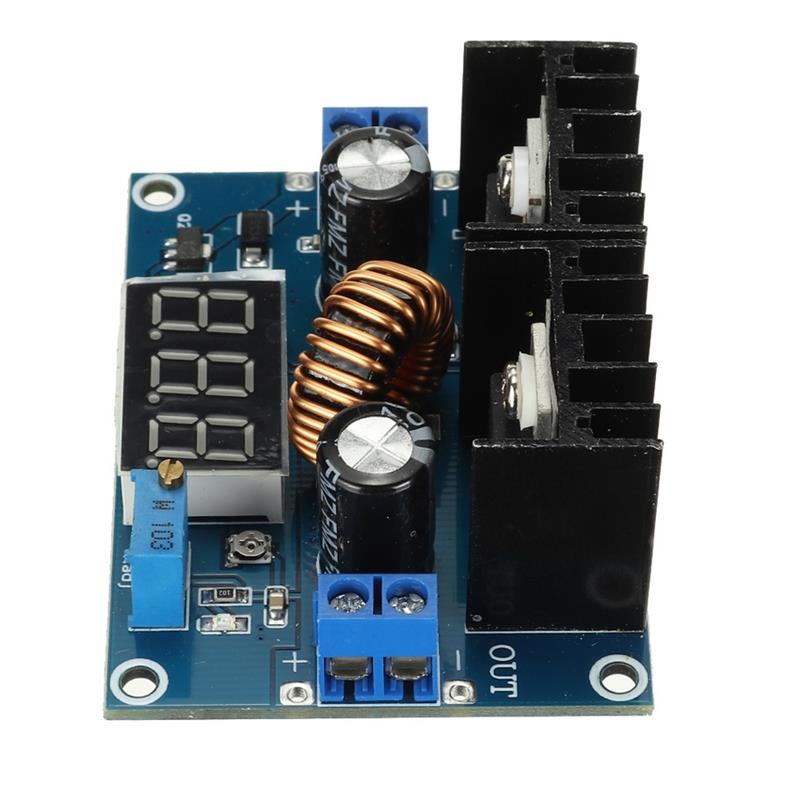

XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustabl DC-DC Step Down Voltage Regulator DC XL4016E1
Feature:
1. The input voltage range of 4-40V, the output voltage range of 1.25-36V.
2. The digital display is the output voltage.
3. Adjust the potentiometer knob:clockwise to adjust the output voltage is increased; counter-clockwise, the output voltage is reduced; after re-regulate the voltage connected load and prevent damage to the load.
4. more than 5A current, please enhance heat dissipation.
5. The low voltage display precision 0.01V, high-voltage display accuracy 0.1V
Specification:
Product Name:DC voltage regulator module.
Product Type:XH-M404.
Voltage mode:PWM modulation.
Input voltage:DC 4-40V.
Output voltage:DC 1.25 ~ 36V.
Maximum current:8A (long work proposals 5A).
Maximum power:200W.
Conversion efficiency:94%.
Switching Frequency:180KHz.
Protection:short circuit protection, input reverse polarity protection, over-temperature protection (over temperature cut off the output).
Package Included:
1 x XH-M404 DC 4-40V 8A Voltage Regulator Module
Additional information
Weight | 0.048 kg |
---|
