FNIRSI 1013D 7-inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800×480 Resolution Capacitor Screen Touch + Gesture Operation Oscilloscopes

FNIRSI 1013D 7-inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800×480 Resolution Capacitor Screen Touch + Gesture Operation Oscilloscopes

Description:

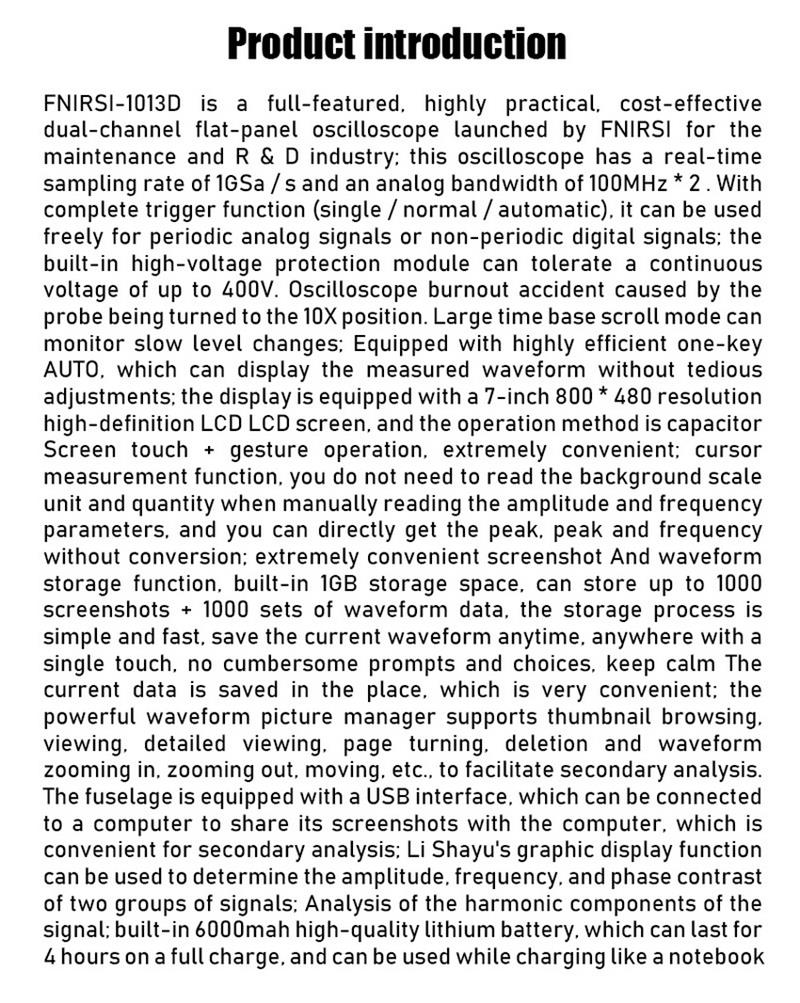

FNIRSI-1013D is a full-featured, highly practical, cost-effective dual-channel flat-panel oscilloscope launched by FNIRSI for the maintenance and R & D industry; this oscilloscope has a real-time sampling rate of 1GSa / s and an analog bandwidth of 100MHz * 2 . With complete trigger function (single / normal / automatic), it can be used freely for periodic analog signals or non-periodic digital signals; the built-in high-voltage protection module can tolerate a continuous voltage of up to 400V.
Features:
1:Intelligent anti-burnX Can withstand up to 400V withstand voltage
200MHz analog bandwidth @ 1GSa/s sampling rateX = 5MHz0X = 100MHz/span>
3:Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast
4:Capacitive touch screen, the same as the touch mode of modern mobile, is not a resistive touch screen with ancient nail operation
5:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V00X can measure 0 ~ 4000V
6:Up to 12 parameters measurement:VPP??VP??Vmax??Vmin??Vavg??Vrms??Frequent??Duty+??Duty-??Time+??Time-??Period
7:Cursor measurement function, it is convenient to manually measure the period and frequency and voltage
8:Complete triggering function (single, normal, automatic)
9:At any time, the waveform display (suspend function) is frozen

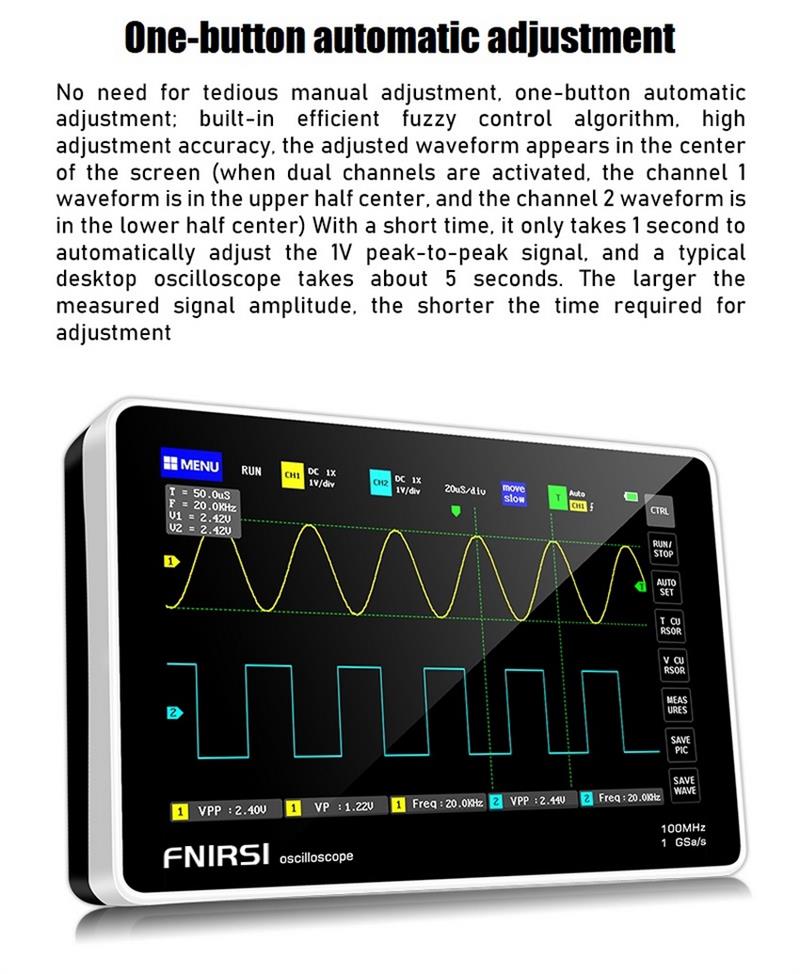

10:Equipped with high efficiency One-button AUTO
11:One-button waveform storage and screenshot
12:Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data
13:Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
14:Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis
15:Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals
16:FFT display function, can analyze the spectral characteristics of the signal
17:Built in 6000mAh rechargeable lithium battery??Fully charged for 4 hours of continuous use at the highest screen brightness
18:Memory compression technology, waveform refresh screen does not flicker
19:Screen brightness adjustment
20:Background grid brightness adjustment
21:Ultra thin, easy to carry
Specification:
Analog bandwidth:100MHz * 2
Number of channels:2 channels
Maximum real time sampling rate:1GSa/s
Vertical sensitivity:50 mV/div ~ 500 V/div
Horizontal time base range:50S/div ~ 10nS/div
Maximum test voltage:40 V (1X probe), 400 V (10X probe)
Storage depth:240Kbit
Input resistance:1M
ADC precision:8bits
Coupling mode:AC/DC
Trigger mode:Single, Normal, Auto
Trigger edge:Rising edge/Falling edge
External trigger voltage 0 40 V
Display:7 inch – 800*480
Operating:Capacitive touch screen + gesture
Extension portsfont color=’#ff0000’>USB picture export
Power supply:6000 mAh lithium battery
Size:184mm x 124mm x 50mm
Total weight:650g
Package Includes:
1 x FNIRSI-1013D Oscilloscope
2 x Matching 100MHz ProbeX and 10X/span>
1 x 5V/2A Charger??Include USB data line/span>
1 x User Manual (English)
Details Picture:
