3Pcs 5S High Current Ternary Polymer Lithium Battery Protection Board 20A 40A

3Pcs 5S High Current Ternary Polymer Lithium Battery Protection Board 20A 40A

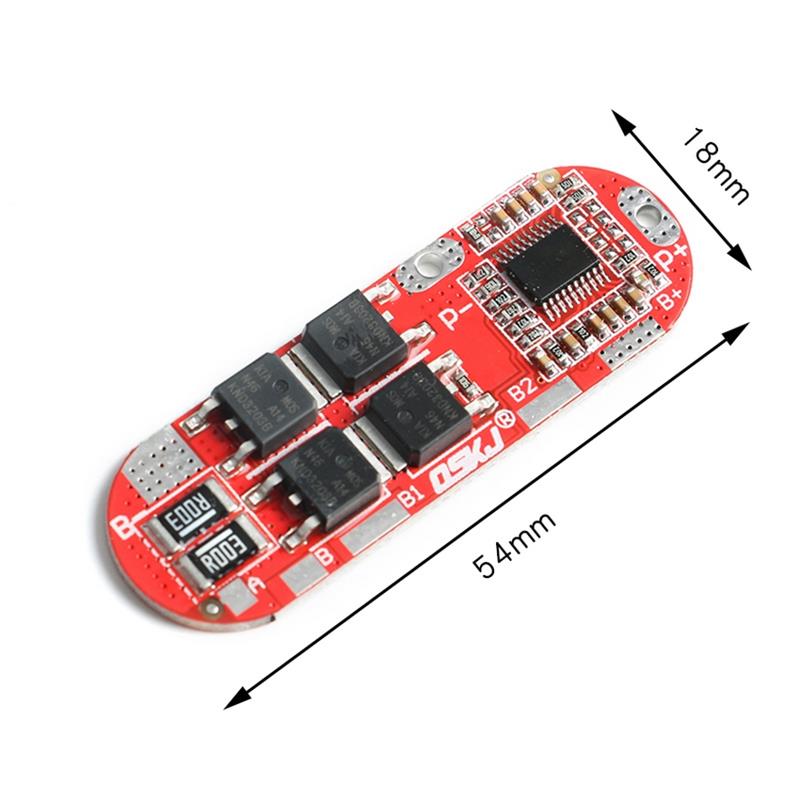

20A 5S Lithium Battery Protection Board
FOR Li-POLYMER LiMnO Protect Parameter (3.6V / 3.7V)
Single Cell overcharge protect voltage:4.23-4.28V
Single Cell overcharge rotect recover voltage:4.08-4.18
overcharge protect delay:0.5-1.5S
Single Cell over-discharge protect voltage:2.72-2.88V
Single Cell over-discharge rotect recover voltage:2.9-3.1V
overcharge protect current:60A
over-discharge protect current:60A
over-discharge protectdelay:0.5-1.5S
temperature protect:YES
disconnect protect:YES
shortage protect:YES
shortage delay:100-600??S
shortage protect recover:YES
Charging current:25A
discharging current:25A
charging voltage:21V for 5S BMS board

Package included:
3 x 5S Lithium Battery Protection Board
