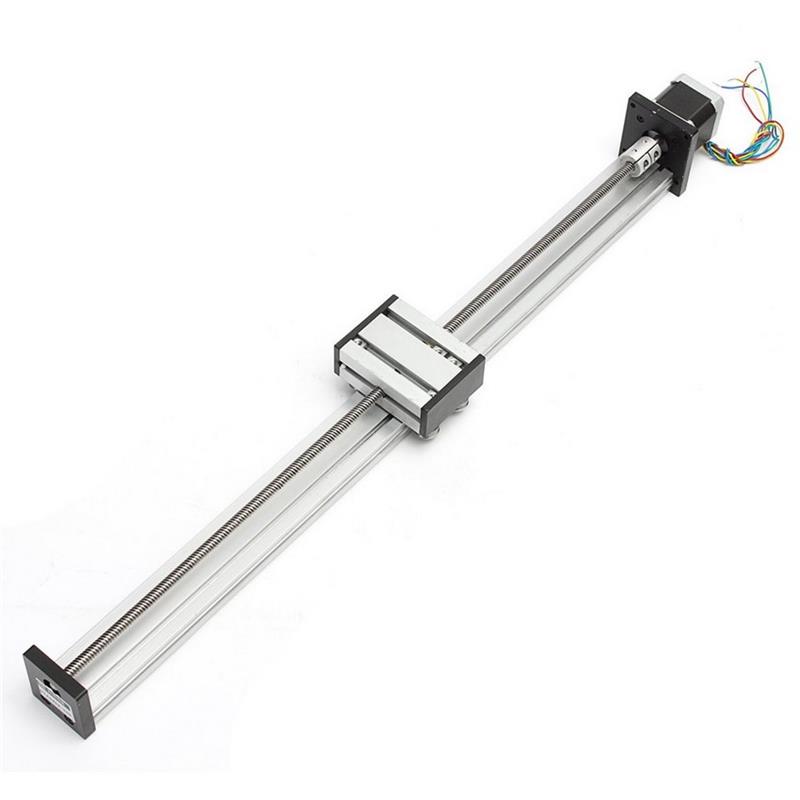

Machifit 100-500mm Stroke Linear Actuator CNC Linear Motion Lead Screw Slide Stage with Stepper Motor
Description:
100-500mm Stroke Linear Actuator CNC Linear Motion Lead Screw Slide Stage with Stepper Motor
Specifications:
| Product Name:Stroke Actuator | |||||
| Material:Aluminum Alloy | |||||
| Size | 270*50mm | 350*64*50mm | 450*64*50mm | 550*64*50mm | 650*64*50mm |
| Slide Width | 40mm | 78mm | 78mm | 78mm | 78mm |
| The Number of Slider | 1 | ||||
| Horizontal Load | 20kg | 56kg | 56kg | 56kg | 56kg |
| Vertical Load | 8kg | 15kg | 15kg | 15kg | 15kg |
| Current | 1.2A | ||||
| Voltage | 12V | ||||
| Resistance | 3.2ohms | ||||
| Step Angle | 1.8?? | ||||
| Torque | 45N.cm | ||||
| Accuracy | 0.01mm | ||||
| Round Trip Accuracy | 0.05-0.08mm | 0.1-0.5mm | 0.1-0.5mm | 0.1-0.5mm | 0.1-0.5mm |
| Ambient Temperature | -10-50/td> | ||||
| Slide Stroke | 0-100mm | 0-200mm | 0-300mm | 0-400mm | 0-500mm |
| Quantity | 1 Pc ?? Stroke Actuator |
Features:
-Horizontal load 56KG, vertical (pull) load 15KG.
-High precision, heavy load resistance.
-Long life, low coefficient of friction, versatility.
-The ball screw consists of a screw, nut and ball. The rotation movement into a linear motion, with a small frictional resistance.
Package Included:
| 1 Pc ?? | Stroke Actuator (100/200/300/400/500mm Optional) |
More Details:
Additional information
| Weight | 0.42 kg |
|---|---|
| Length: No selection | 100mm, 200mm, 300mm, 400mm, 500mm |
