IPC9800ADHSCPlus+ 7inch 4K Camera Tester Engineering Treasure Video Surveillance Tester for CFTV IPC Tester Poe Testers Camera Tester
Product Introduction:
Model:IPC9800ADHSCPlus+?? IPC9800ADHSCPlus+=8MP TVI/ CVI 5MP AHD 1080P SDI HDMI in/output +cable tracer??
7 inch IPS touch screen, 1280*800 resolution
4K H.265 H.264 video display via mainstream.4K IP Camera test;
RJ45 cable TDR test, cable quality test.
POE, DC 12V power voltage test, HDMI input,1080P.
TesterPlay:Tester, android version mobile phone, PC display at the same time.
Batch activate Hik camera.
Language support:English, Chinese, Korean, Russian, Italian , Polish ,Spanish, French or Japanese;
Features:
1. New 7 inch IPS touch screen cctv tester,1280*800 resolution.
2. New- H.264 and H .265 ,4K video display via mainstream
3. IP & CVBS camera test, PTZ controller

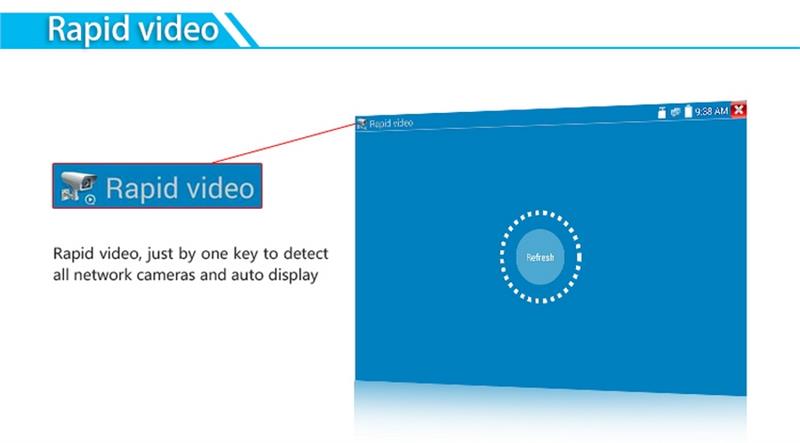

4. New- Rapid video, just by one key to detect all network cameras and auto display

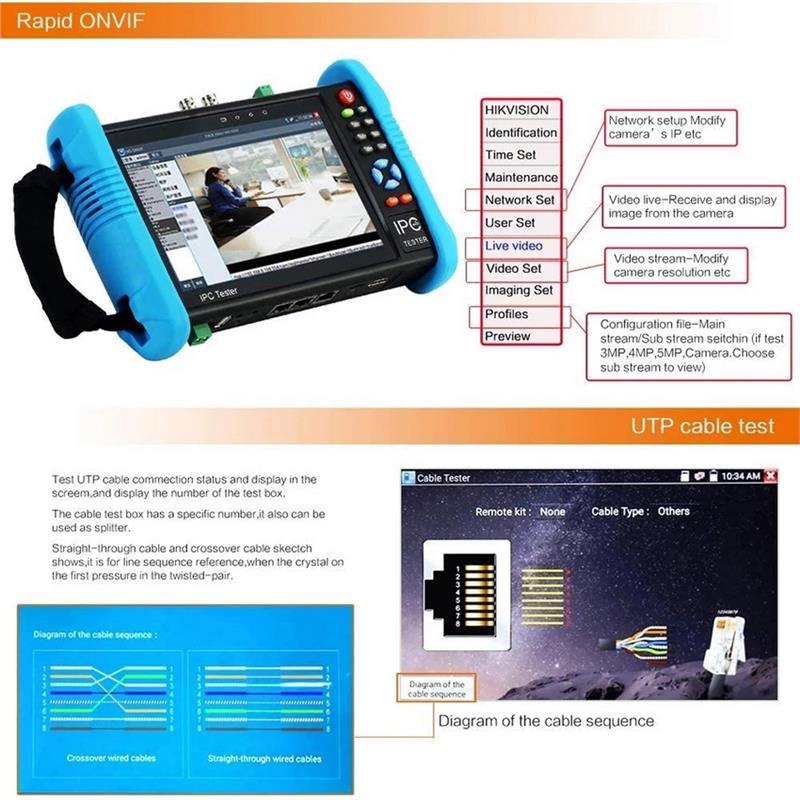

5. Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report
6. New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS
7. New- Screen management, change function’s icons order, create new directory
8. New- Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch, HDMI IN functions etc in any interface
9. Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
10. New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
11. TesterPlay(screen projection):tester, android version mobile phone and PC display at the same time
12. New- Screen lock, password lock and pattern lock are optional
13. New- HDMI signal input,720??480p /720??576p /1280??720p /1920??1080p /1024??768p/1280??1024p /1280??900p /1440??900p display image ,record.
14. HDMI output ,support 1080P
15. New- CVBS loop test , the tester send and receive generator signal ,to check BNC cable
16. New- Traffic monitoring of the tester ‘LAN port’, display network port or WIFI connection real-time upload and download speeds and other network parameters
17. New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc
18. ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)
19. Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot
20. New- 4K video files and MKV/MP4 media files play
21. PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank
22. New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable
23. 8GB SD card including
24. IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address
25. Display its genuine resolution of the IP camera images
26. Supports more than 30 protocols such as PELCO-P, PELCO-D.
27. Enhanced generator, PAL/NTSC multi-system video generator
28. POE voltage measurement, PING test ,IP address scan, port flashing etc
29. Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools
30. 7.4 V /5400mAh Lithium Ion Polymer Battery, after 5~6 hours charging , working time lasts 10 hours.
Package included:
1 x IPC9800ADHSCPlus+ Camera Tester
1 set of Accessories??We will send you the suitable adapter according to your location??
Details Pictures:
Additional information
Weight | 2.237 kg |
---|
