PWM 10A 12V/24V Auto Solar Panel Solar Charge Controller Battery Charge Adapter LCD USB

PWM 10A 12V/24V Auto Solar Panel Solar Charge Controller Battery Charge Adapter LCD USB
Specifications:
Name:10A 12V/24V LCD Display PWM Solar Panel Charge Controller
Model:C11471
Rated voltage:12/24V AUTO
Charge current:10A
Discharge current:10A
Max.PV input power:130W(12V),260W(24V)
Max solar input:
12V battery,the highest 23V
24V battery when the highest 46V
Equalization:14.4V
Float charge:13.7V (defaul,adjustable)
Discharge stop:10.7V(defaul,adjustable)
Discharge reconnect:12.6V(defaul,adjustable)
Charge reconnect:13V
Voltage of open light:Solar panel 8V(Light lights delay)
Voltage of close light:Solar panel 8V(Light off delay)
USB output:2 way USB output,5V/2A(Max.)
Self-consume:<10mA
Operationg temperature:-35-60??
Color:Black
Size:133.5mmx70mmx35mm
Feature
Build-in industrial micro controller.
Big LCD display,all adjustable parameter.
Fully 3-stage PWM charge management.
Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
Dual USB output,the maximum current of 2.5A,to support mobile phone charging.
Dual mosfet reverse current protection,low heat production.

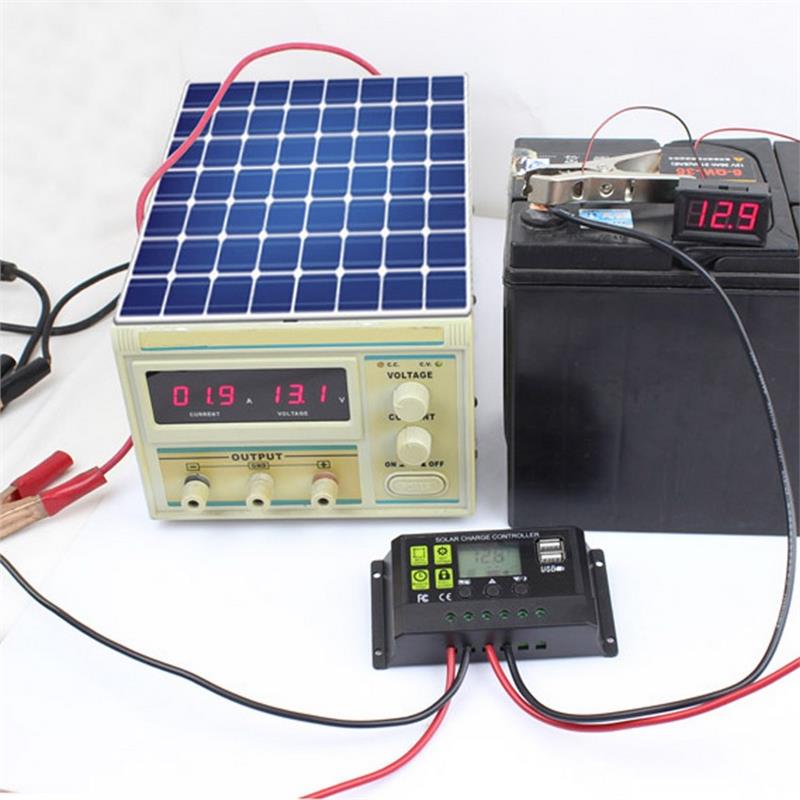

System connection
1.Connect he battery to the charge regulator-plus and minus.
2.Connect the photovoltaic module to the regulator-plus and minus.
3.Connect the consumer to the charge regulator-plus and minus.
Package included:
1x 10A PWM Solar Charge Controller
1x Manual
