Eachine ET8 Horizontal Hit and Miss Complete Gas Adjustable Speed Double Valve Engine Model STEM Upgrade Engine Toys

Eachine ET8 Horizontal Hit and Miss Complete Gas Adjustable Speed Double Valve Engine Model STEM Upgrade Engine Toys
Description:
Brand:Eachine
Name:Eachine ET8 Horizontal Hit and Miss Complete Gas Engine Model
Size:180125*125MM
Flywheel diameter 56mm, thickness 15mm
Displacement:6CC.
Cylinder diameter:22MM
Itinerary 20MM
Weight:1610G
Material:Brass And Stainless Steel
This is a miniature engine. It is made of brass, aluminum alloy and stainless steelWater-cooled cooling structure. A carburetor with adjustable speed is used. Thegnition device is powered by a 4. 5V power supply. The most interesting feature is that the speed can be adjusted.
Its starting method:manual start by external force.
Note:We will test and package each engine after it works normally. Its carburetor isdebugged to the best working position. So it is not recommended to make largeadjustments!
Features:
Engine startup steps:
1.Check the wiring of the engine from the board, connect the fuel tank pipeline, andinstall three No 5 batteries( 4. 5v).
2. Add water to the engine water tank. Use gasoline(95#)to fill the fuel tank. After thefilling is completed, turn the flywheel clockwise on the right side of the engine formany turns. Its function can make the mixed fuel fully enter the cylinder. Make surethe fuel pipe No air can be generated.

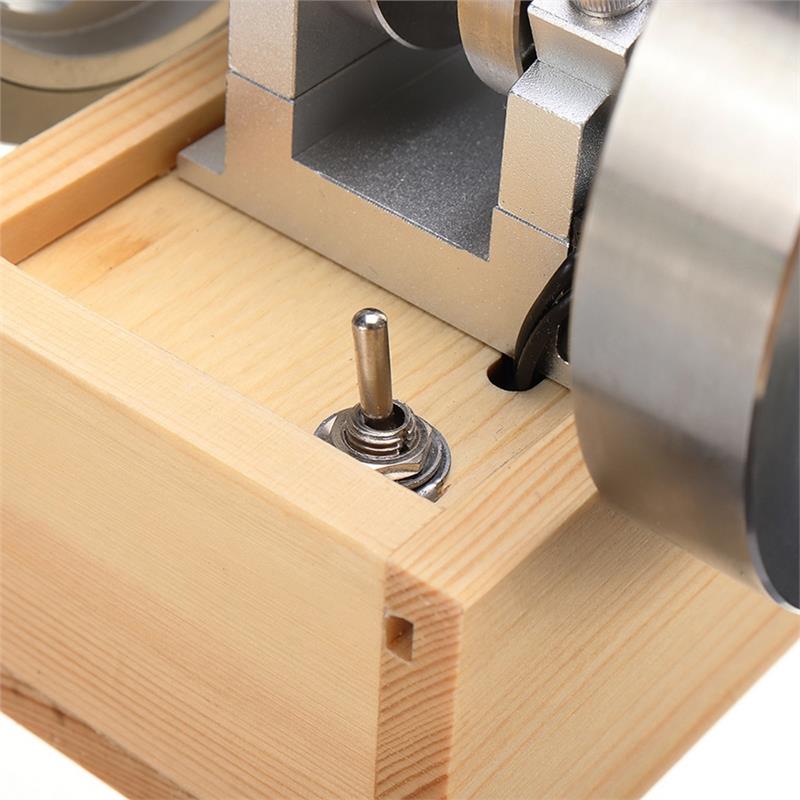

3. Turn on the power switch and quickly rotate the flywheel clockwise on the right sideof the engine to start the engine.
Precautions:
1. If the ignition device is normal and the cylinder compression is normal, if themachine cannot start normally, it is very likely that the carburetor oil needle needs tobe adjusted.
2. After tightening the main oil needle on the carburetor, loosen 1/4 turn and start theflywheel, so that the mixing ratio of gasoline and air can reach the normal workingmixing ratio.
3. When the machine is stopped, the power switch should be turned off. The cooling.
Note:
1.Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
2.Please allow little differs due to manual measurement.
3.Kids should be accompanied by adult.
Package Included:
1x Eachine ET8 Model
1x Engine Spare Parts Start Device
