30.5*30.5mm RUSHFPV RUSH BLADE F722 FC & Sport Edition 50A ESC & RUSH Tank VTX & RUSH PFB Stack/Combo
The RUSH BLADE F722 Stack for analog by RUSHFPV features the RUSH TANK II 5.8GHz VTX, RUSH BLADE F722 Flight Controller, RUSH BLADE 50A 3-6S BLHeli_32 4-in-1 ESC (Sports Edition), and the RUSH Power Filter Board (PFB), which can handle up to 6S input voltage and push your FPV racer to the max.
Specifications:
RUSHFPV RUSH TANK II 5.8GHz VTX w/ Smart Audio:
Item Name:Rush Tank II
Input Voltage:7-36V DC
Output Voltage:5V 1A
12V Input Current:40mA@Pitmode, 95mA@25mW, 185mA@200mW, 250mA@500mW, 380mA@800mW
Channels:48CH RaceBand / LowRace
Power:PIT/25/200/500/800 mW
Audio:Support audio input
Dimensions:36*36*4.5 mm
Weight:6.8g(including cable)
RUSHFPV RUSH BLADE F722 Flight Controller For Analog:
MCU:216MHz
GYRO:MPU6000
OSD:Onboard OSD
Input Voltage:3-8S
BEC:5V/5A
Mounting Holes:30.5mm x 30.5mm
Firmware:betaflight_4.2.0_RUSHFC_8f2d21460

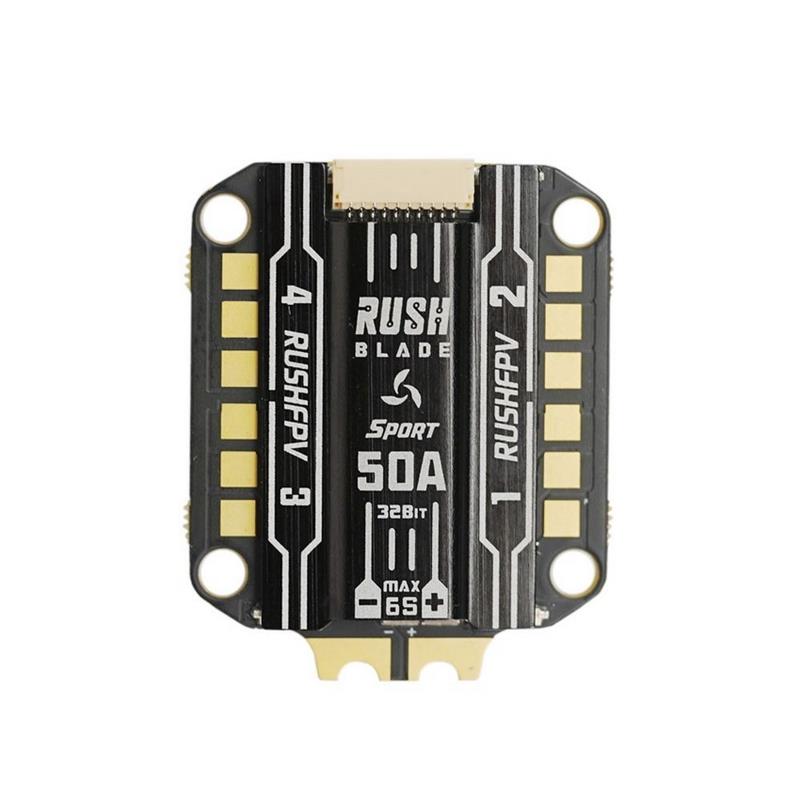

RUSHFPV RUSH BLADE 50A 3-6S BLHeli_32 4-in-1 ESC – Sport Edition:
Rated Current:50A
Peak Current:60A
Input Voltage:3-6SLipo
MCU:F051 48MHz
PWM FREQ:48K
LED Color:Blue
Weight??16.2g
Dimension:45*36.5*7.5mm
BL32 FW:RUSH_BLADE_SPORT
RUSH PFB Power Filter Board
The 4 in 1 ESC can not achieve complete filtering due to its compact structure and high power. Excessive voltage peaks can cause interference to other components. Current surges generated during crashes can also have a strong impact on the MOSFET’s and the power supply and can cause damage.
The RUSH PFB is small in size and can be installed at the tail of the ESC as a supplementary device for the filter. It is equipped with two 35V 330uF high-speed solid capacitors, and the parallel ESR is very low 5 m0 (TEST FREQ @10KHz)! It has a good filtering effect on high-frequency interference generated by ESC.
There are 3 high-power TVS diodes on board, which can cut voltage peaks at ns speeds, and absorb high-voltage surges caused by collisions of the propeller during a crash in time to protect the field-effect tube and other components from the surge. We recommend installing it in a high-power 6S brushless system.
Package Included:
1 x RUSHFPV RUSH TANK II 5.8GHz VTX w/ Smart Audio
1 x RUSHFPV RUSH BLADE F722 Flight Controller For Analog
1 x RUSHFPV RUSH BLADE 50A 3-6S BLHeli_32 4-in-1 ESC – Sport Edition
1 x RUSH PFB Power Filter Board
Additional information
| Weight | 0.09 kg |
|---|
