01Studio pyIOT- GPS Beidou BDS Daul-mode Module Flight Control Satellite Positioning Navigator ATGM336H MicroPython Develop
Description:
pylOT-GPS ATGM336H is a simle-easy-to-use UART-GPS(Beidou) module, it has a GPS module ATGM336H. You can obtain GPS+Beidou dual-mode data through UART. So as to build your own IOT products applications quickly.
We provide the python library and learning resource for this module, you can develop easily with the Micro-Python development Board.
Support BDS/GPS/GLONASS satellite navigationsystem
UART voltage 3.3V or 5V Adaptive
Wireless configuration
Built-in antenna detection and antenna short circuit protection function wireless configuration

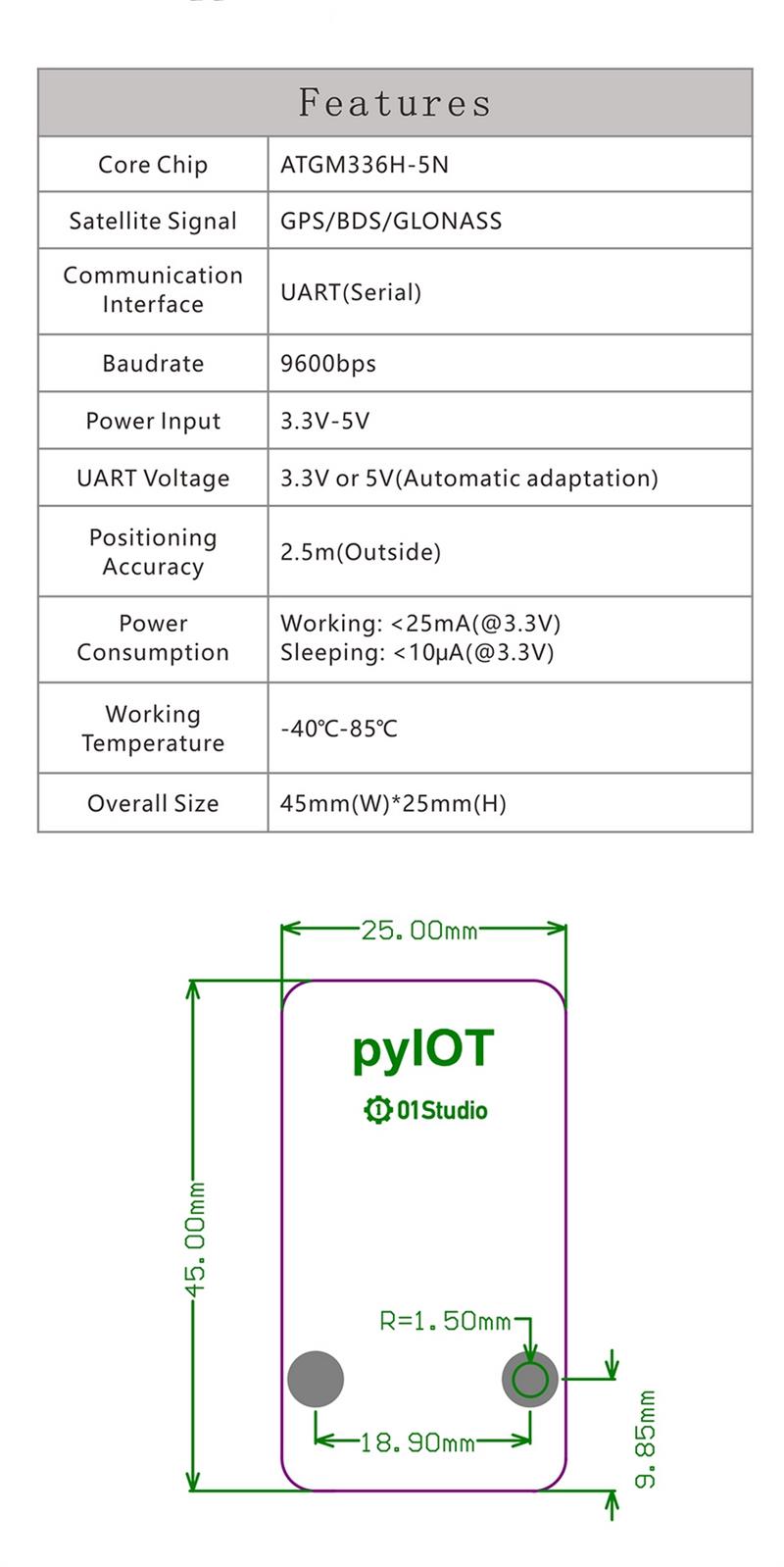

Specification:
| Core Chip | ATGM336H-5N |
| Satellite Signal | GPS/BDS/GLONASS |
| Communication Interface | UART(Serial) |
| Baud rate | 9600bps |
| Power Input | 3.3V-5V |
| UART Voltage | 3.3V or 5V(Automatic adaptation) |
| Positioning Accuracy | 2.5m(Outside) |
| Power Consumption | Working:<25mA(@3.3V) Sleeping:<10uA(@3.3V) |
| Working Temperature | -40??~85?? |
| Overall Size | 45mm(W)*25mm(H) |
Package included:
1 x ATGM336H MicroPython Development module
Additional information
| Weight | 0.01 kg |
|---|
