Eachine EM1 Micro Engine Model Brass Double Piston Complete STEM Engine Toys Collection Gifts

Eachine EM1 Micro Engine Model Brass Double Piston Complete STEM Engine Toys Collection Gifts
Description:
Brand:Eachine
Name:EM1 Engine Model
Size:104*99*70MM
Displacement:1.9cc.
Cylinder diameter:13MM
Itinerary:16MM.
Veight:1200G

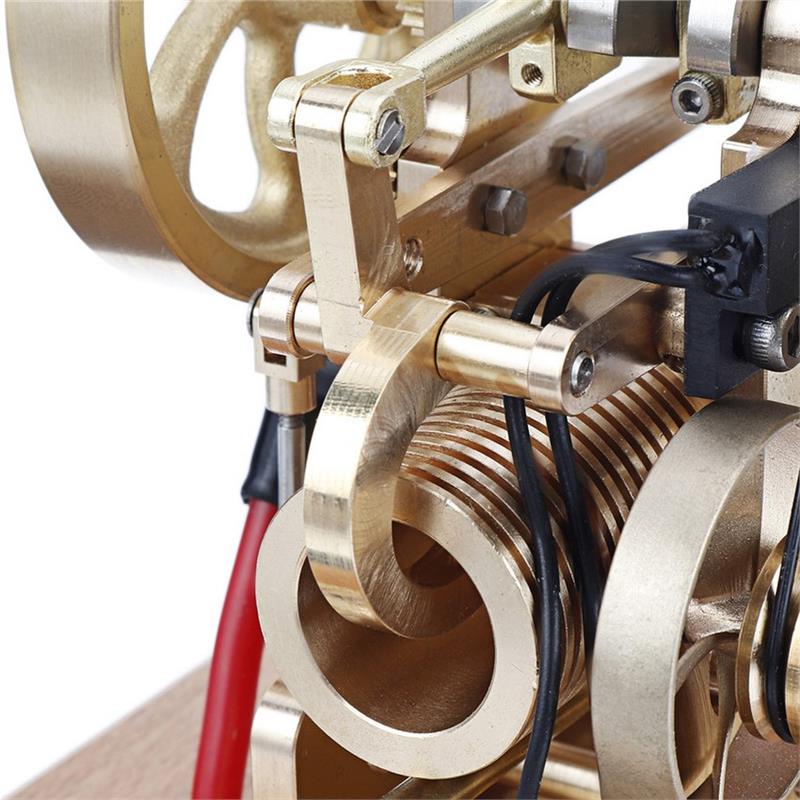

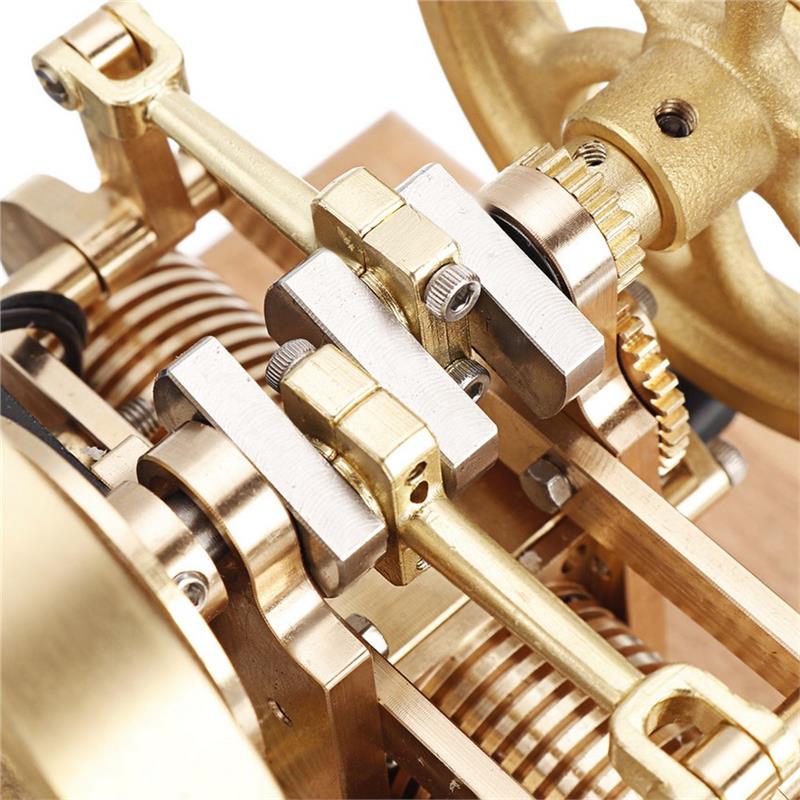

This is a micro engine. It is made of brass and stainless steel Air-cooledcooling structure. The ignition device is powered by a 4.5V power supply.It starts with external force (electric drill).
Features:
Engine startup steps
1. Check the wiring of the engine from the bottom plate and install three AA batteries( 4.5V)
2. Use gasoline(95#)to fill the fuel tank. When the filling is completed,press the carburetor port by hand on the right side of the engine(power switch surface), and turn the flywheel clockwise for many times. Its function can make the mixing Fuel fully enters the cylinder.

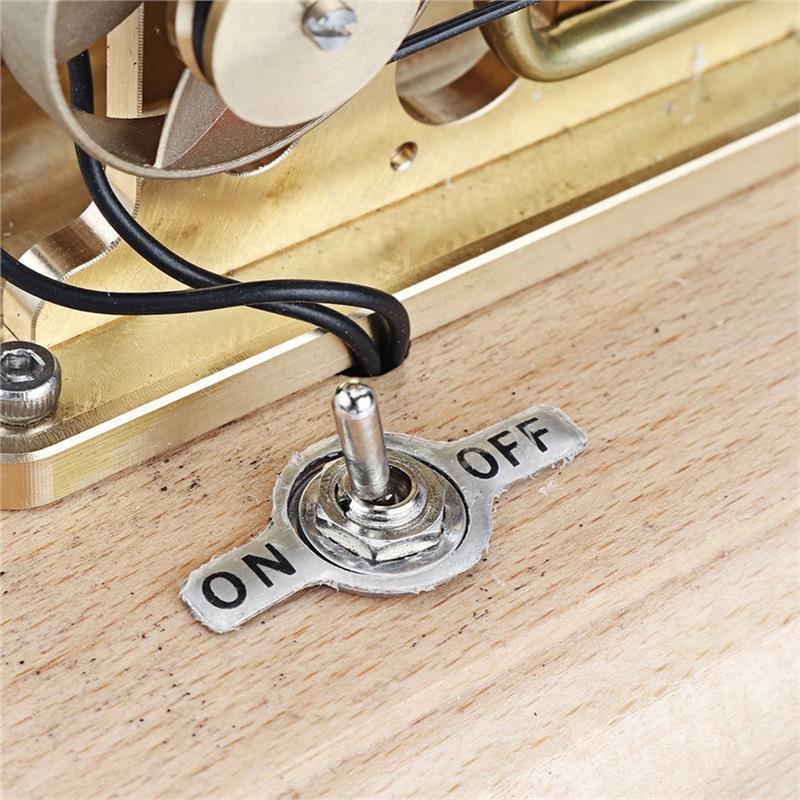

3. Turn on the power switch and quickly turn the flywheel clockwise to start the engine on the right side of the engine( power switch surface).
Precautions
1. When the ignition device is normal and the cylinder compression is normal, if the machine cannot start normally, it is very likely that the carburetor oil needle needs to be adjusted.
2. After tightening the main oil needle on the carburetor,loosen 1/4 turn and start the flywheel, so that the mixing ratio of gasoline and air can reach the normal working mixing ratio after seven times.
3. When the machine stops, the power switch should be turned off.
Note:
1.Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
2.Please allow little differs due to manual measurement.
3.Kids should be accompanied by adult.
Package Included:
1x Eachine EM1 Model
