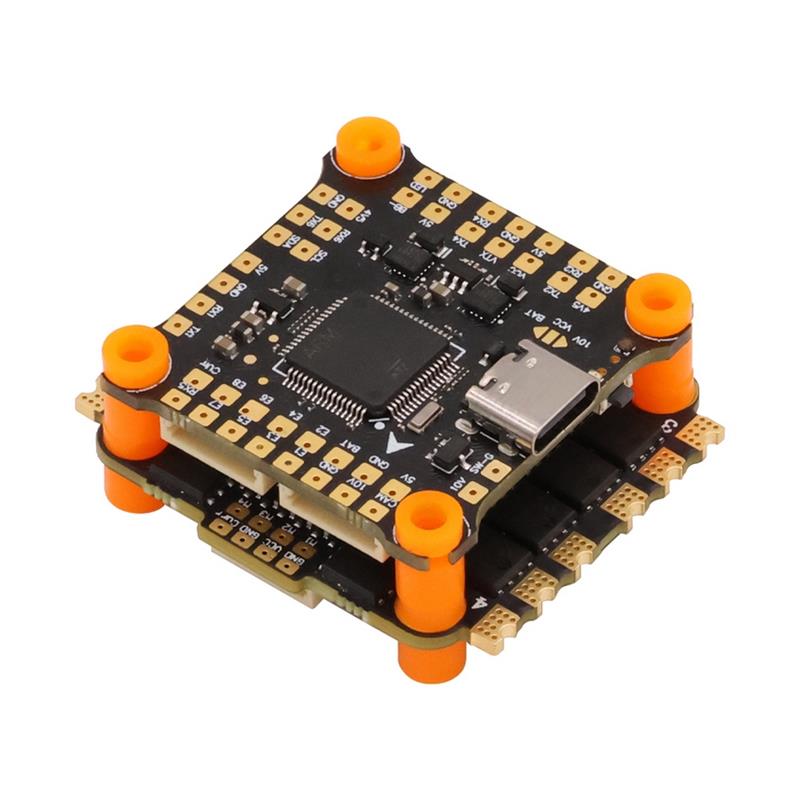

30.5×30.5mm HAKRC 45AF7 V2 Stack F7 Flight Controller Dual Gyro with 5V 10V BEC Output 45A BL_S 2-6S 4in1 ESC Flytower Support DJI O3 Air Unit for DIY RC FPV Racing Drone
Notice:Upgrade into new V2 Version like photos showed.
July 19th, 2023. BeiJing Time
Specification:
Brand:HAKRC
| New V2 Version | Old Version |
| Model:45AF7 V2 Stack Stack Net Weight:23g Packing Size:64x64x35mm Packing Weight:71.5g Flight Controller: Installation Hole Distance:30.5×30.5mm, ??4mm Processor:STM32F722RET6 Gyroscope:Dual ICM42688 BEC:5V/3A; 10V/2.5A Storage:16MB Input Voltage:2-6S Firmware:HAKRCF722V2 Uart serial port:6 FC Size:36x36mm FC Net Weight:8.5g ESC: Input Voltage:2-6S ESC Hole Distance:30.5*30.5/20*20mm, ??4mm Continuous Current:45A Maximum Current:50A (Sustainable 10S) Assistant Software:BLHeliSuite16.7.14.9.0.3 Current Scale:160 Drive Signal Support:Dshot150/300/600, Multishot, PWM, Oneshot42, Oneshot125. ESC Size:44x44mm ESC Net Weight:13.5g |
Model:F722 DJI 45A Stack Packing Size:??62*33mm Stack Weight:25g Packing Weight:30g Flight Controller: Installation Hole Distance:30.5*30.5mm, ??4mm Processor:STM32F722RET6 Gyroscope:MPU6500 BEC:5V/3A; 9V/2.5A Storage:16MB Input Voltage:3-6S Firmware:Betaflight_4.1.0_MATEK722se Uart serial port:5 FC Size:36x36mm FC Net Weight:8g ESC: ESC Hole Distance:30.5*30.5/20*20mm, ??3mm Continuous Current:45A Maximum Current:50A (Sustainable 10S) Assistant Software:BLHeliSuite Input Voltage:2S-6S Drive Signal Support:Dshot150/300/600, Multishot, PWM, Oneshot. ESC Size:44*44*5.5mm ESC Net Weight:14g |
Package Included:
1 x HAKRC F7 Flight Controller
1 x HAKRC 45A 4in1 ESC
8 x M3 Orange Shock Absorption
2 x 8p Cable
1 x 4p LED Cable
1 x 4P CRSF Receiver Cable
1 x 6P Cable for DJI Digital System
1 x Capacitor (35v470uf)
1 x XT60 Plug
1 x Red and Black Cable
4 x M3*25 Screws
4 x Black Nuts
Additional information
| Weight | 0.062 kg |
|---|
