Analog & Digital 52mm Car LED Turbo Boost EGT Exhaust Water Temperature Air Fuel Ratio Gauge

Analog & Digital 52mm Car LED Turbo Boost EGT Exhaust Water Temperature Air Fuel Ratio Gauge
Tachometer 001
Gas Temp 002
Air Fuel 003
Voltage 004
Oil Press 005
Oil Temp 006
Watertemp 007
Boost PSI 008
Specifaition:
Grades:Racing High Performance PM Motor high speed gauges
Size:52MM
Display Type:Both analog needle & digital numerical.
Material:Aluminum
Drive Voltage:DC 5V
Drive Current 30mA Max
Working Angle:340
Drive Mode 1/64 MICROSTEP
Application:12v vehicle
Operating Temp:-40 ~105 Humidity 20%~80%
Color Control:Botton switch

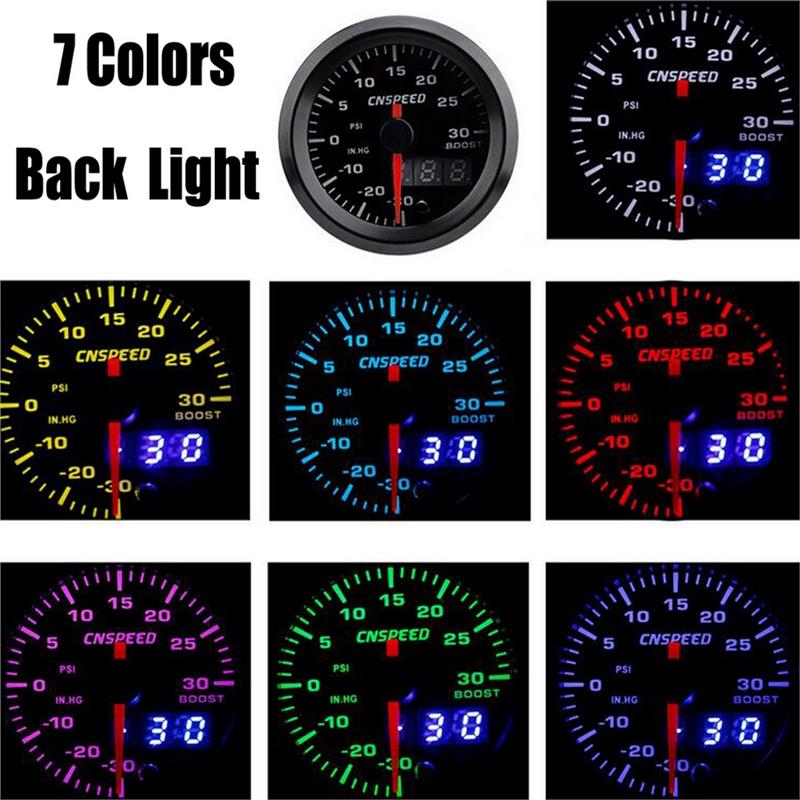

Backlight:White+ Red + Green + Yellow + Purple + Blue + Pale blue (Select The Color By Pressing The Button On Meter’s Surface)
Storage Temp:-40 ~150
Zero Position Accuracy:CCW:-1.5 ~0.5
Acoustic Noise:22db A MAX
Life:2000hr MIN
Quantity 1 sets(Boost/Water Temp/ Oil Temp/Oil Pressure/EGT Temp Comes With Sensors)
Feature:
With classic analog illuminated red needle and easy-to-read blue digital numerical readout .
Less parts, less friction, more durable and longer service life.
The use of gearless stepper motors is faster and more accurate than conventional gear motors
Gearless stepper motors , without acceleration, deceleration processing, self starting speed of 14rps, is 14 times the normal gear stepper motor.
Lower Acoustic Noise:PM Motor high speed gauges operation without gear friction drive, Lower noise, noise decibel is at least two times smaller than ordinary.
Packing included:
1 x Gauge (includ accessories)
1 x User Manual
