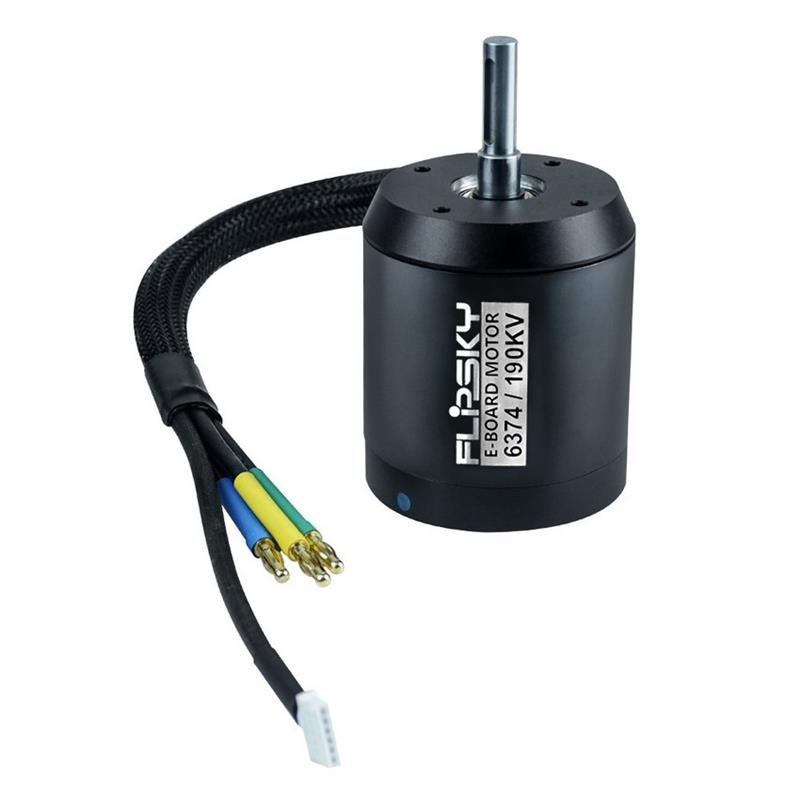

Flipsky BLDC Belt Motor Battle Hardened 6374 190KV 3500W Brushless for Electric Skateboard Spare Parts

Flipsky BLDC Belt Motor Battle Hardened 6374 190KV 3500W Brushless for Electric Skateboard Spare Parts
Description:
Item Brand:Flipsky
Item Number:6374 Battle hardened
Item Name:BLDC Belt Motor
Material:Metal
Color:Black
Motor Size:Motor diameter is 63mm,total length is 108mm?I0.5,shaft length is 34mm,shaft diameter is 8mm or 10mm
Net Weight:About 980g
Packaging Box Weight:Approx.1029g
Compatible:Electric Skateboard
Specification:
KV:190KV
Max Power:3500Watts
Max Current:85 Amps
Max Volts:12S
Max Torque:8Nm
Motor Resistance:0.05Ohm
Recommend ESC:3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)
The number of pole:14
Reference Information:
The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
Screws to mount the motor are not included with the motor.
If you choose round shaft motor, shipping includes the key for the keyway
If you choose the shipping comes with pulley, will come with 8mm steel material pulley.
Package Included:
1X 6374 BLDC Belt Motor
