Aluminum Alloy Pocket Hole Jig Kit with 9mm Step Drill Bit Wood Doweling jig Drilling Hole Guide Locator Tools for Carpentry
Description:
Aluminum Alloy Pocket Hole Jig Kit With 9mm Step Drill Bit Wood Doweling jig Drilling Hole Guide Locator Tools For Carpentry
Specifications:
Product Name | Pocket hole locator |
Material | Aluminum alloy |
Color | Gray |
Fixing Method | Screw tightening |
Sheet Thickness | 12-45mm |
Drill Specifications | ??4*??9*170mm |
Suitable Plug Diameter | 9mm |
Angle of Pocket Hole | 15?? |
Weight | 0.86kg |
Quantity | 1 Set ?? Pocket hole locator |
Features:
– Pocket Hole Jig
Pocket hole jig 6061 aluminum alloy body, not rust lightweight and strong ideal for furniture stitching, woodworking DIY.
– Larger Chip Removal Hole
Doweling jig with a larger chip evacuation, faster and smooth chip removal, drilling is more labor-saving.
– Accurate Scale

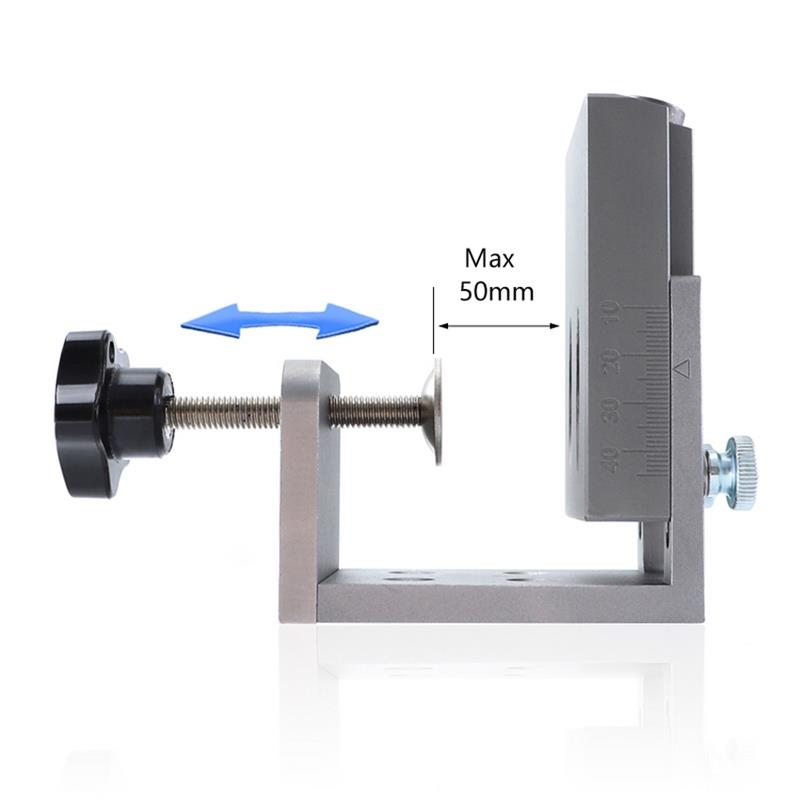

Drilling Hole Guide with a clear and precise scale, adjust the scale according to the thickness of the wood, accurate alignment, applicable wood thickness 12-45mm.
– Quick Clamping
Drilling Locator Guide with a quick gripper, fast and firm clamping, improve punching efficiency.
– Punch precision
Woodworking jig lengthened 36mm drill sleeve makes punching accurate 15 degree inclined hole, the splicing is stronger and firmer, applicable plug diameter 8.5mm.
– Improve Work Efficiency
If need to batch punched, you can purchase a plurality of pocket hole locator fix them on the table, batch drilling is more efficient.
Package Included:
2?? | drill bushing |
1?? | main body |
1?? | base support |
2?? | screw |
1?? | clamping plate |
3?? | hexagon socket screw |
1?? | 9mm step drill |
1?? | 9mm stop collar |
1?? | screwdriver |
2?? | hexagon wrenches |
1?? | manual |
Important Note:The Pocket Hole Jig Set Tips:Two styles will be shipped randomly, product and quantity is same, one type is pocket hole jig with silver drill, one type is pocket hole jig with gold drill, and we will send plug and screw randomly.
More Details:
Additional information
Weight | 0.85 kg |
---|
