Description:
This offline controller is designed for the use of Mini CNC router 1610/2418/3018 and even with more advanced function of tool set, limit switch supportive, Laser supportive; Offline and Bluetooth supportive.
Specification:
Firmware:GRBL 08, 09, 1.1 and so on
Input Voltage:DC 7V- 36V
Applicable CNC Router:3 Axis CNC router 1610; 2418; 3018
Features:
1. Support GRBL and benbox firmware. Support CNC 3-axis laser engraving machine.
2. The stroke length isn’t limited to 30×18 and 24×18, it can be setting other length. Please set the stroke in the command.
For example
3018, please set the stroke in the command, 30cm length and 18cm width;
2418, please set the XY stroke in the command, length 24cm, width 18cm.
Function:
1:Manual control:manually adjust the position of XYZ three axes as the carving starting point, and manually open or close the spindle.
2:File engraving:the offline board can be connected to the grbl control board for engraving after saving the file, and there is no need to connect to the computer.
3:Storage files:the offline version is identified as USB mass storage device after connecting to the computer, which can directly access engraving files.
Instructions:

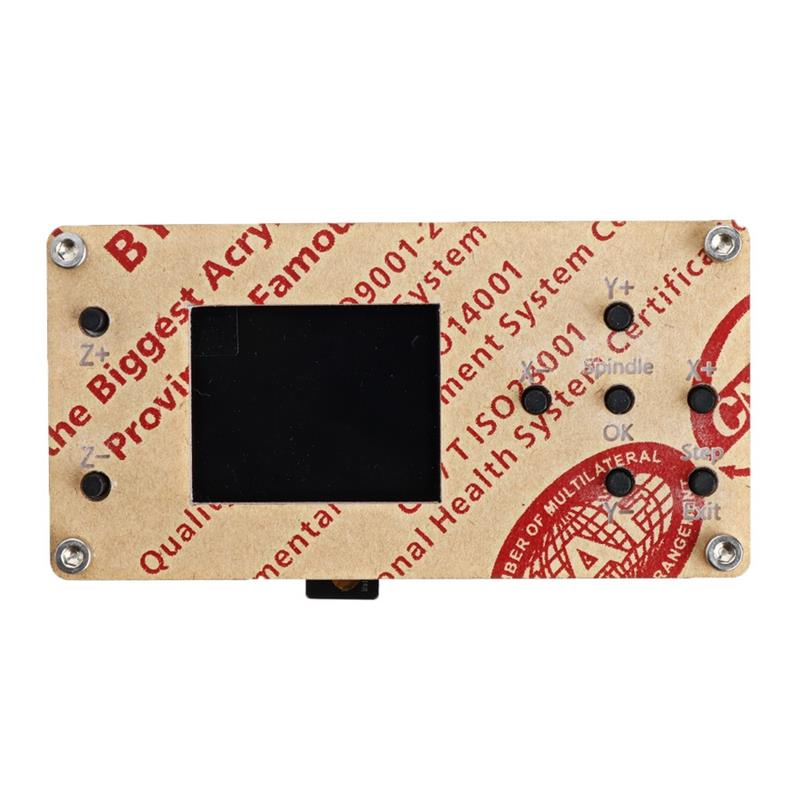

GRBL Off-line Controller
Press Z+ and Z- , the Z axis will move up and down.
Press X+ and X- , the X axis will move left and right.
Press Y+ and Y- , the Y axis will move Front and Back.
Press SPIN:Spindle on (Laser on ), Spindle off (laser off)
Press SMOD:return
Press Z+ for 5 seconds , change the Language to English.
SD Card:Included , you need a SD card reader to write into the root directory G-code files .
Notice:
The Laser Interface is 3 pin on this control board. Only support 42 stepper motor.
Package Included:
1 x LCD Screen GRBL Controller
1 x Cable for Spindle Connection
1 x SD Card
More Details:

Additional information
