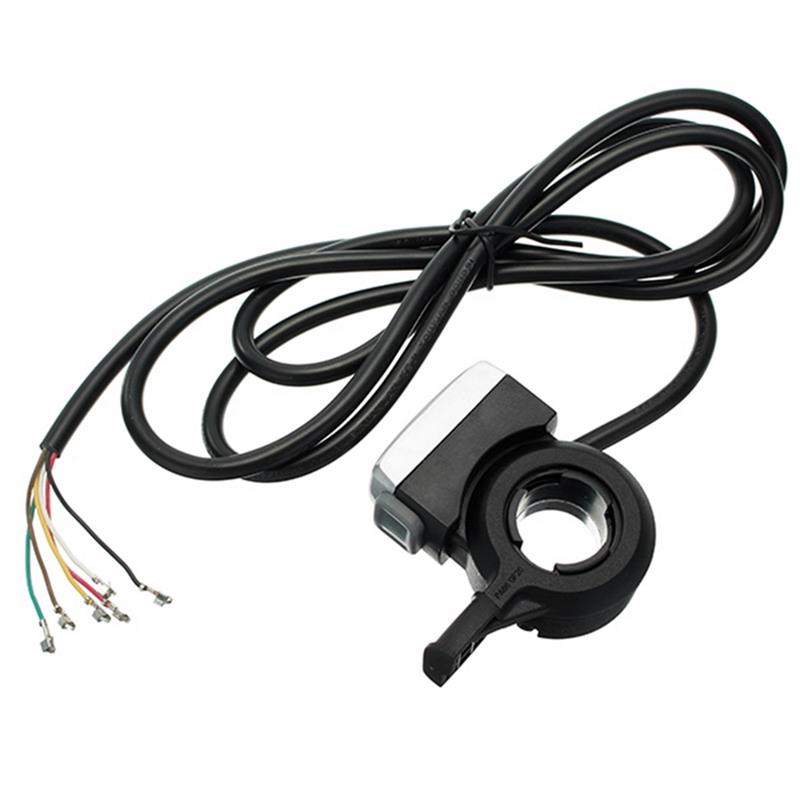

7/8 Inch Electric Bike Handlebar Speed Battery Indicator Thumb Scooter Throttle With Self Lock
Specification:
| Material | Plastic PA66 GF20 |
| Cable Length | Approx. 160cm / 62.9inch |
| Battery Indicator Voltage | 24V / 36V / 48V |
| Adjust speed Working Voltage | 5V |
| Adjust speed Output Voltage | 0.8-4.3V |
| Rotation angle | 0??—70?? |
| Operation temperature | -40?? ~ +80?? |
| Fitment | Fit for Handle bar is 22mm or 7/8 Inch Electric bicycle, Electric Scooter, MTV |
Function:
Battery Indicator(Green,Red,Yellow) + Self-Lock (The Red Button) + Adjust Speed (The Black Button)
Green Light =High Power
Yellow Light=Half Power
Red Light=Empty Power
Red ,Black and White wire— Adjust speed
Green wire—-Positive (Battery Indicator,
Yellow and coffee wire—Self-Lock/Switch on or off
Adjustable-Speed Button can be fit for this function,but your bike need to have this function. Cruise / Low Gear / High Gear /
Reversing Lamp switch / run at full speed Automatically / Handlebar Switch on or off / Low battery Keep working
Note:
Do Not touch the Adjustable-Speed Button before installation, because if you touch the Adjustable-Speed Button
before installation, the inside springs may be taken out, this item can not be used.
Package Included:
1 X Handlebar with Battery Indicator
Additional information
| Weight | 0.13 kg |
|---|---|
| Voltage: No selection | 24V, 36V, 48V |
