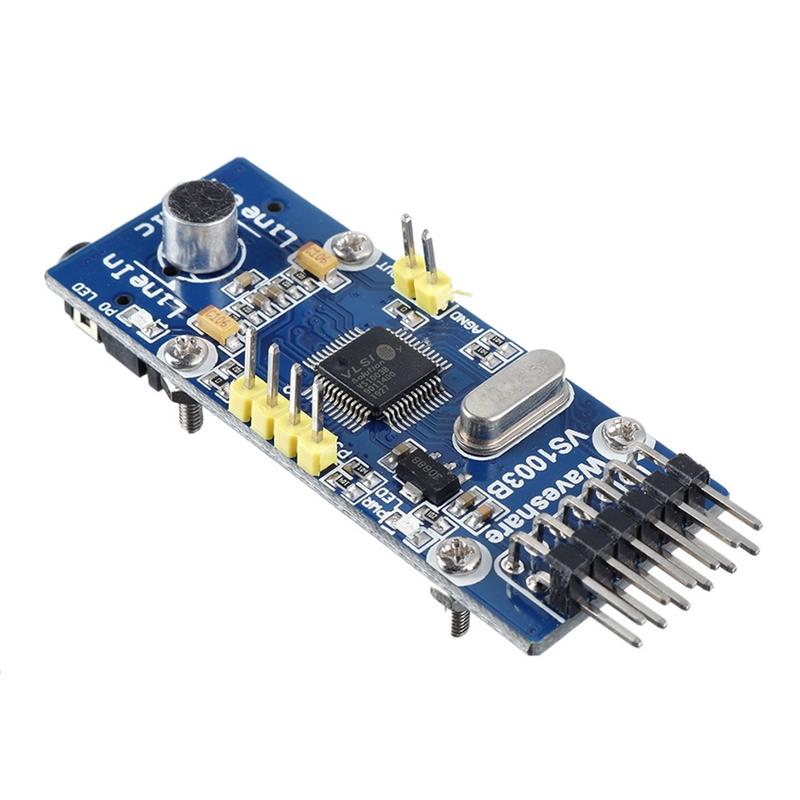

Waveshare VS1003B VS1003 MP3 Decoder Board WMA/WAV Audio Decoder Module

Waveshare VS1003B VS1003 MP3 Decoder Board WMA/WAV Audio Decoder Module
Feature:
Onboard VS1003BSPI interface, all control signal lines are led out
Support MP3 and WAV streaming
Audio decoding formats:MPEG, WMA, WAV, MIDI and SP-MIDI
Recording encoding format:IMA ADPCM (mono)
Input method:microphone and Line input
On-chip analog-to-digital converter (ADC):16-bit adjustable
High-quality stereo earbud driver:30 Euro
On-chip RAM size:5.5KB
Can control the volume
Clock multiplier with internal phase-locked loop
High-quality stereo digital-to-analog converter (DAC) without phase error between channels
Separate analog, digital and IO power supply
Low power operation
1 audio output interface (Line Out)
1 audio input interface (Line In)
1 microphone for recording
3.3V single power supply
Documents:
Schematic:Click here to open
Package includes:
1 x Audio Decoder Module
