WPL V3 Diesel Version Upgraded Sound System All-in-one Electronics 1/16 RC Car Spare Parts

WPL V3 Diesel Version Upgraded Sound System All-in-one Electronics 1/16 RC Car Spare Parts
Description:
Item Brand:WPL
Item Name:Engine sound system
Material:Plastic and electronic components
Color:As the picture shown
Product Size:

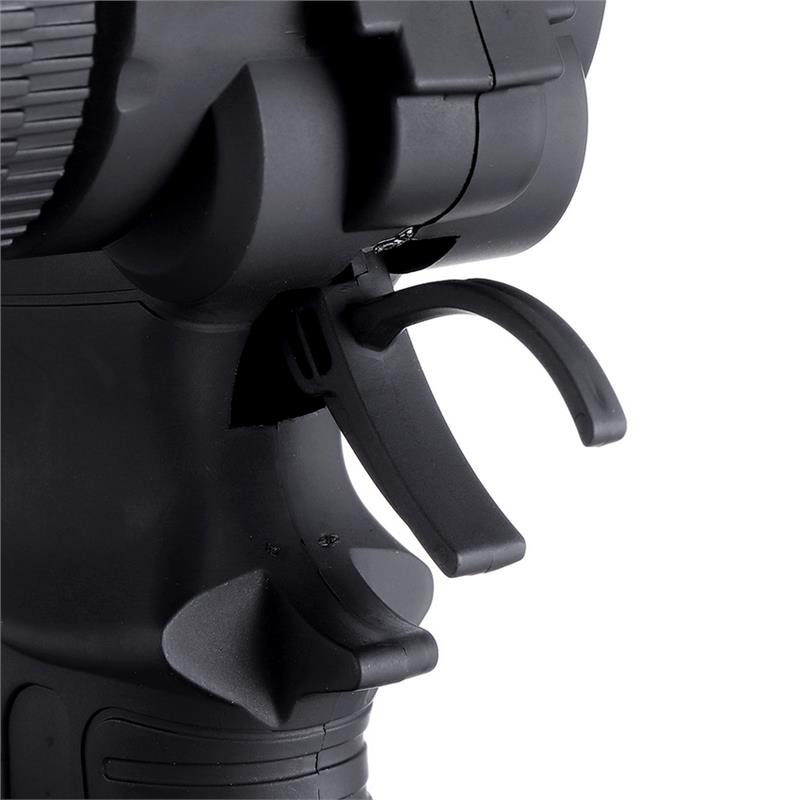

Remote Controller:190x75x120mm
Circuit Board:49X28x9.8mm
Horn:28X28X25mm
Packaging Weight:About 223g
Compatible:WPL 1/16 rc car,should have upgraded 370 motor and 7.4v battery

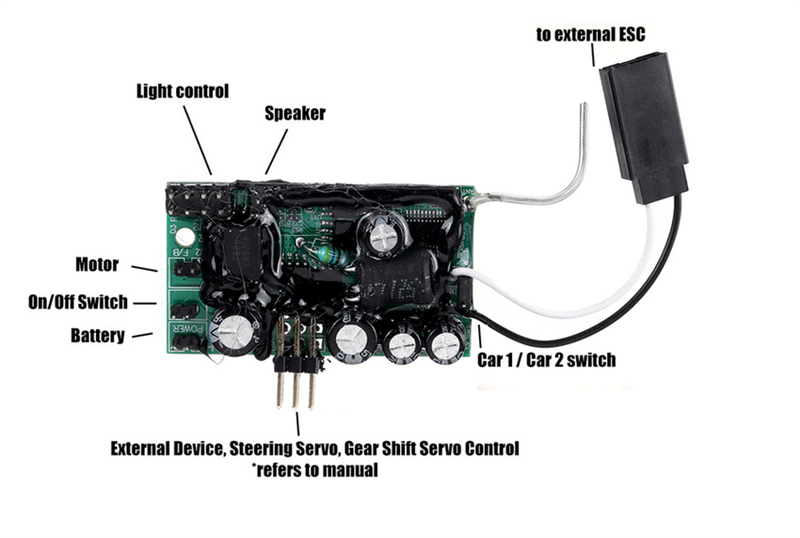

All-in-one Functions:
Receiver
Buit in ESC(14A)
Servo Control
Winch Control
Gear Shift
Sound Module
Light Control
Car 1/Car 2 Switch
Low voltage protection
Support 2-3 S
PWM output for External ESC
Auto Drag Brake at Low Gear
Diesel Sound
Low Voltage Protection:
2S-6V
3s-11V
Specification:
ESC max supported current:14A(under-load)
Requires two AA batteries for remote controller(not included)
What’s new in V3 vs V2:
PWM output for external ESC
Added Auto Drag brake at low gear(manual braking at high gear)
Impoved/Fixed:
Doubled the ESC amp output
Triple radio signal
Even better throttle modulation
Gear shift now starts at high gear
Tips:
Not recommended to use on 130/180 size motor without 104 capacitor,cause interference to sound.370 motor is fine
Not backward compatible with V2 sound system
The set doesn’t come with any plug/battery connector,you may use your own that fits
Doesn’t work with the yellow color 6v 700mah Ni-cd battery
If you’re an single speed gear,gear shift button becomes the on/off for auto drag brake
Actual receiver may look a little different but function is the same
Recommended to use on WPL’s 370 motor,the 130/180 tend to have interference issue unless 104 caps added
Package Included:
1X Remote Controller
1X Cicuit Board
1X Horn
1X Manual
1X Sticker Sheet
5X Resistances
