30.5×30.5mm GEPRC TAKER F405 HD V2 F4 OSD Flight Controller with 5V 9V BEC & 50A BL_S 3-6S 4in1 Brushless ESC Stack for RC Drone FPV Racing
Summary:

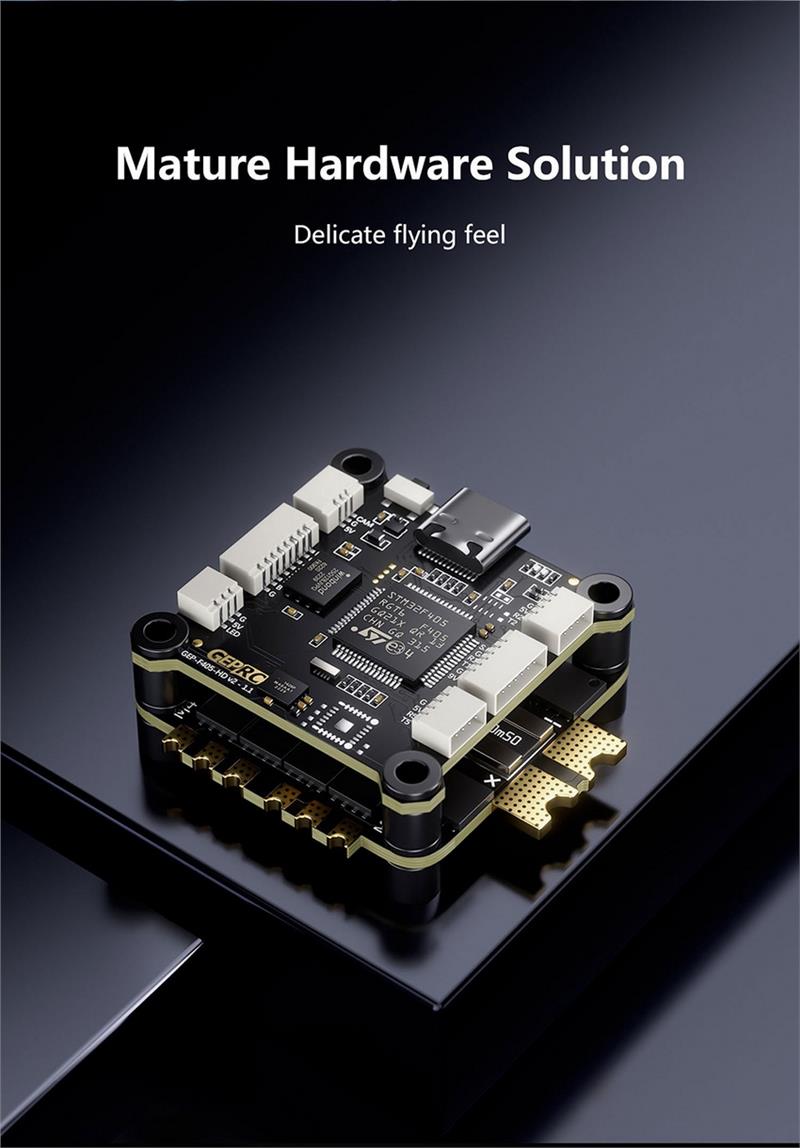

GEPRC TAKER F405 BLS 50A STACK is a plug-and-play stack system specially designed for DJI Air Unit. Use STM32F405 chip, ICM42688-P gyroscope, integrated 16M black box, and GEP-BLS50A-4IN1 ESC to have a more delicate hand feeling experience.
The GEPRC TAKER F405 BLS 50A STACK can be directly plugged into the DJI Air Unit, which can save the trouble of soldering. Upgrade the type-C USB connector, which greatly improves the service life of the socket and reduces the risk of poor contact. 9V 2.5A + 5V 3A dual independent BEC, more stable power supply for external devices.
Features:
Use mainstream STM32F405 chip
Equipped with the latest 42688-P gyroscope
16M black box storage
Integrated LC filter
Upgrade type-C USB interface
Directly plugged into the DJI Air Unit
With GEP-BLS50A-4IN1 ESC, the flying feel is silky
Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
9V 2.5A + 5V 3A dual independent BEC
Specifications:
Brand:Geprc
Model:TAKER F405 BLS 50A STACK
| GEP F405 HD v2 Flight Controller | MCU:STM32F405 IMU:ICM42688-P(SPI) Air Unit Connection:Direct plugging into DJI Air Unit Black Box:16M onboard USB Connector:Type-C OSD:BetaFlight OSD w/ AT7456E chip BEC:5V,9V dual BEC Firmware Target:GEPRCF405 Size:36.8?36.8mm, hole 30.5?30.5mm????4mm hole becomes ??3mm after using a silicone shock-absorbing circle. Input Voltage:3-6S LiPo UART:6 Power Filter:Integrated LC filter Weight:7.7g |
| GEP BLS50A 4IN1 ESC | Input Voltage:3-6S Lipo Galvanometer:Support Continuous Current:50A Burst Current:55Aι5s?@ Support Protocol:Oneshot125/Oneshot42/Mulishot modes/Dshot 150/300/600 Size:42.9?39.7mm, hole30.5?30.5mm????4mm hole becomes ??3mm after using the silicone shock-absorbing circle. Weight:13.7g Target:G_H_30 |
Package Includes:
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*24 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
Additional information
| Weight | 0.0138 kg |
|---|---|
| Model: No selection | FC&ESC |
