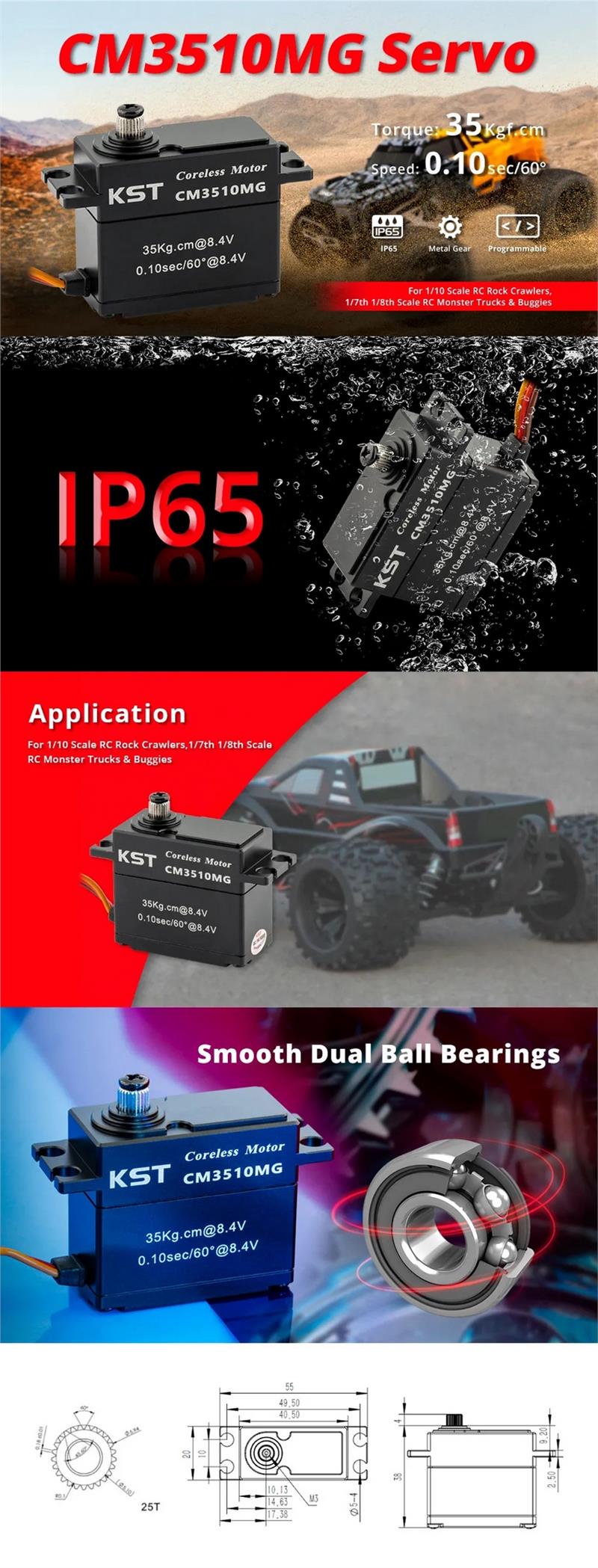

KST CM3510MG Coreless DC Motor Metal Gear Servos IP65 Waterproof 35Kgf.cm 0.10sec for 1/10 Scale RC Rock Crawler and 1/7th 1/8th Scale RC Monster Truck
Specifications:
Item:CM3510MG Servo
Rated Voltage:DC7.4V
Voltage Range:DC4.8V-8.4V
Torque:20Kgf.cm@4.8V / 25Kgf.cm@6.0V / 30Kgf.cm@7.4V / 35Kgf.cm@8.4V
Speed:0.20sec/60ɳ@4.8V / 0.15sec/60ɳ@6.0V / 0.13sec/60ɳ@7.4V / 0.10sec/60ɳ@8.4V
Stalling Current:2.10A@4.8V / 2.90A@6.0V / 3.30A@7.4V / 3.65A@8.4V
Working Frequency:1520us/333Hz
Default Travel Angle:?W50ɳ =100ɳ Total
Temperature Range:-10??????+65??
Soft Start:Yes
Programmable:Yes
Case Material:Aluminum Alloy
Motor Type:Coreless DC Motor
Gear Set Material:Metal gear
Position Sensor:Potentiometer
Ball Bearing:2BB
Waterproof:IP65
Case Dimensions:40.5mm*20mm*38mm?W0.2mm
Weight:70g?W10%
Features:
Boasts an ultra-high torque of up to 35Kgf.cm and a speedy 0.10sec/60ɳ response time.
Certified with IP65 waterproofing, designed to thrive in challenging conditions.
Equipped with a high-performance coreless DC motor and durable metal gear set.
CNC Aluminium casing ensures enhanced durability and longevity.
Perfectly compatible with 1/10 Scale RC Rock Crawlers, 1/7th, and 1/8th Scale RC Monster Trucks & Buggies.
Package Included:
1 x CM3510MG Servo
3 x Plastic Servo Horn
1 x Servo Horn Screw
4 x Grommet
4 x Eeylet
5 x Mounting Screw
