Nextion Enhanced NX8048K070-011C 7.0 Inch HMI Intelligent Smart USART UART Serial TFT LCD Screen Module Display Capacitive Multi-Touch Panel with Enclosure
Specification:
Display Function:GraphicsTube Chip Color:Full ColorUsage:IndoorModel Number:NX8048K070-011CBrand Name:NEXTIONResolution:800*480/480*800Touch type:CapacitiveBacklight lifetime (Average):>30,000 HoursLayout size:181mm(L)*108mm(W)*9.3mm(H)Visual Area:154.08mm(L)*85.92mm(W)Power Supply Recommend:5V, 2.0A, DCSD card socket:Yes (FAT32 format), support maximum 32G Micro SD CardSerial Port Mode:TTLRTC:Built-in RTC Support (Battery type:CR1220 not includes)Serial Port:4Pins 2.54mmExtended IO:8 Digital extended GPIO
Features:

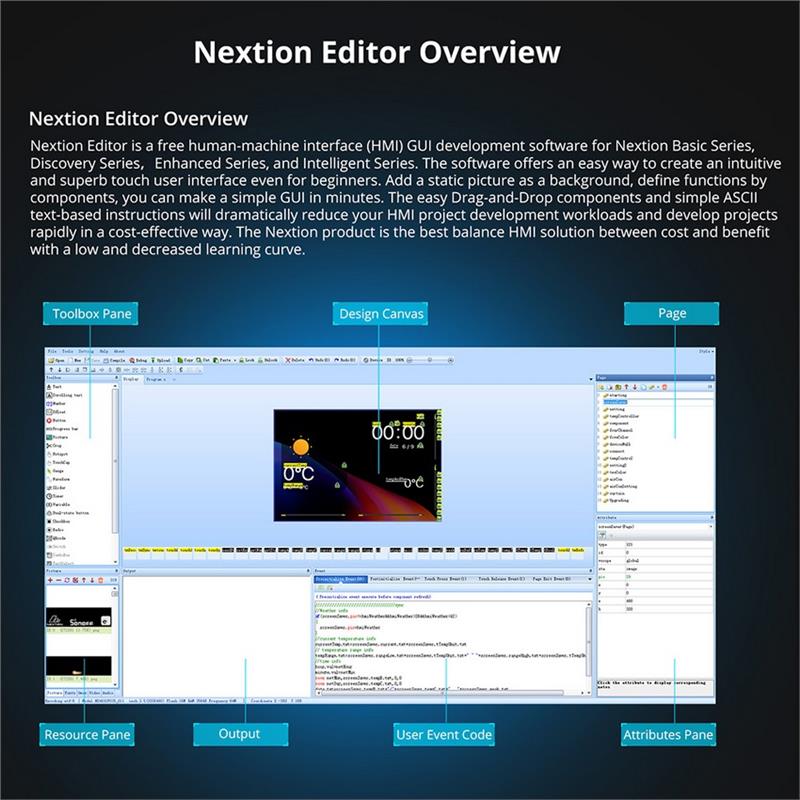

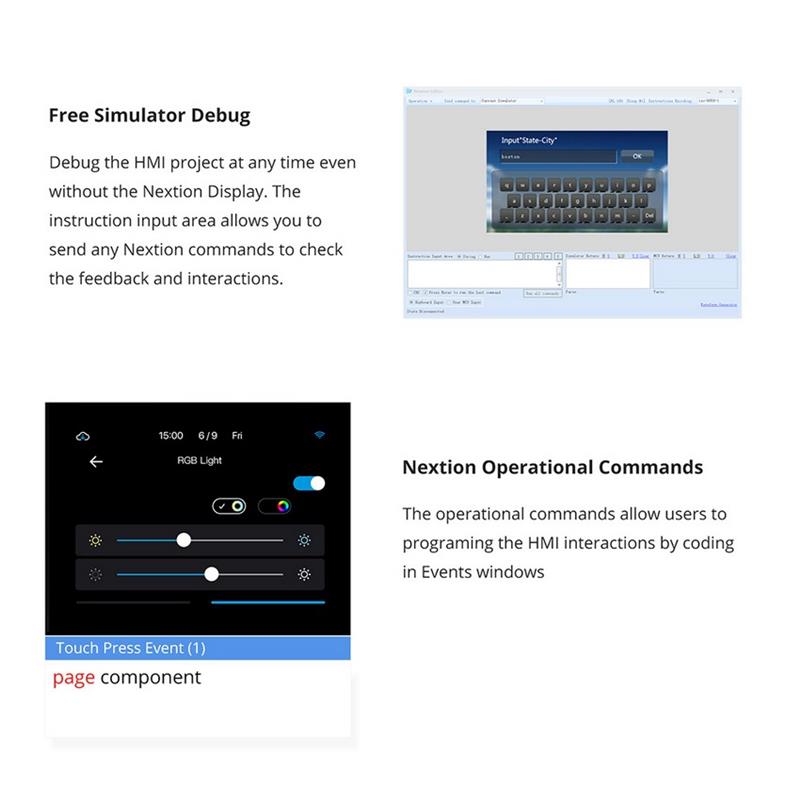

NEXTION is a Human Machine Interface ??HMI?? solution combining a TFT touch display with an onboard processor and memory, developing by a free and downloadable NEXTION Editor software. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. With just 2 wires (RX,TX), NEXTION display quickly connects to MCU via 5V TTL Serial to provide event notifications that MCU can act on, and utilizes simple ASCII text based instructions so the MCU can easily provide progress and status updates back to your HMI user.
The 7.0″ enhanced Nextion HMI resistive/ capacitive touch display with an enclosure. Nextion screen is an upgraded LCD panel with more powerful features. The NX8048K070_011C is a powerful 7.0″ HMI TFT capacitive multi-touch display with enclosure. Integrate with 32MB Flash data storage space, 1024 byte EEPROM, 8192 byte RAM, and with GPIO supported.Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as:supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacitive and larger CPU clock.
Package Include:
1x NX8048K070-011C HMI Display
1x XH2.54 4P Wire
1x Power Supply Test Board
Additional information
| Weight | 0.58 kg |
|---|
