20W 0-750MHz Wolf All Mode DDC/DUC Transceiver Mobile Radio LF/HF/6M/VHF/UHF Transceiver for UA3REO with WIFI

SKU: HA1995889

Original price was: $1,431.92.Current price is: $1,084.79.

-24%
Shipping fast worldwide
  • Dispatch:Usually will be shipped in 24 hours
  • Shipping Time:Expedited Express 6-8 business days
  • Secure Payment:Paypal,VISA,MasterCard
Guaranteed Safe Checkouttrust pay
20W 0-750MHz Wolf All Mode DDC/DUC Transceiver Mobile Radio LF/HF/6M/VHF/UHF Transceiver for UA3REO with WIFI
$1,431.92 Original price was: $1,431.92.$1,084.79Current price is: $1,084.79.

20W 0-750MHz Wolf All Mode DDC/DUC Transceiver Mobile Radio LF/HF/6M/VHF/UHF Transceiver for UA3REO with WIFI
Features:
1. DDC/DUC technology and 0-750MHz full mode reception.
2. The most powerful FPGA! 3D spectrum and waterfall chart.
3. Large 7-inch capacitive touch screen enables multi-point touch. Support display in sunlight!
4. Built-in CW decoding and FT8 codec (no other equipment required).
5. Built-in wifi! Online radio display available after networking!
6. Built-in 16G TF card ! Multiple recordings and playback! Record and call. 5 recordings in CW mode.
7. OTA online upgrade! Or flash and upgrade via TF card.
8. Multi-scene mode selection! Fully open source software and hardware can be modified as needed.
9. Built-in USB sound card makes it convenient to connect.
10. All aluminum shell anodized.
11. With wifi, no tuner
Specifications:
– Receiving frequency:0MHz-750MHz
– Transmission frequency:0MHz-200MHz (amateur transmission) and 360Mhz-480Mhz (frequency multiplier)
– Transmit power (QRP++DB5AT version):20W (shortwave) and 7W (VHF)

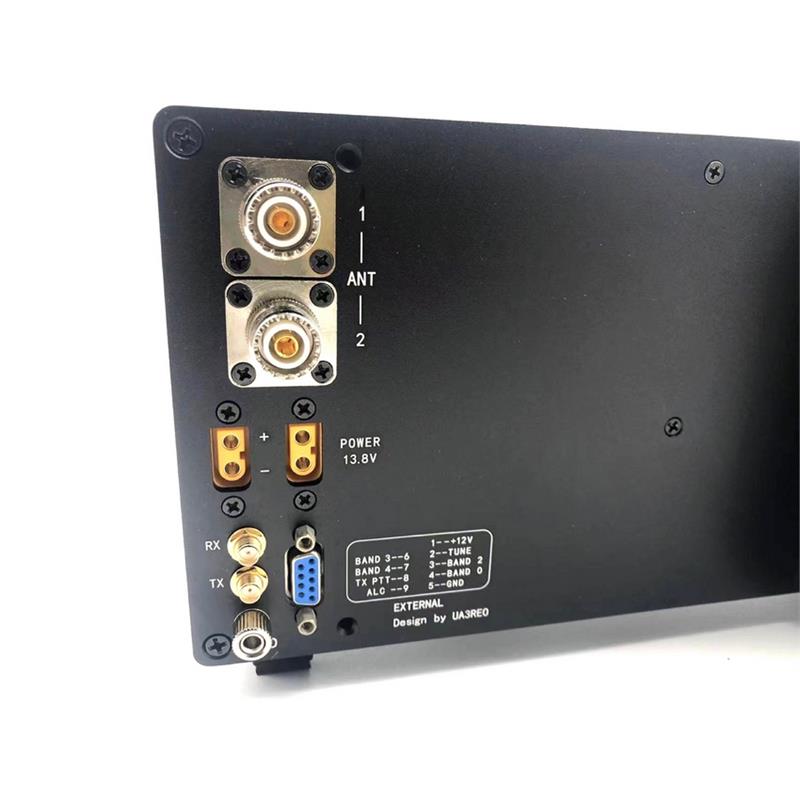

– Antenna type:Support two antennas to input
– Modulation type (TX/RX):CW, LSB, USB, AM, FM, WFM and DIGI
– Low noise amplifier (LNA)
– Adjustable attenuator:0-31dB
– Band-pass filter
– ADC dynamic range (16-bit):~100dB
– Supply Voltage:13.8V (with over-voltage and reverse polarity protection)
– Receiving current:~0.7A (3’2 QRP) and 0.9A (7′ BIG)
– Transmitting current:~2.5A+ (QRP) and 15A+ (BIG)
Package Included:
1 x Transceiver
1 x Handheld Mh-48 Microphone
1 x Power Cable
mso-bidi-font-family:’Times New Roman’;font-size:10.5000pt;mso-font-kerning:1.0000pt;’>
Ha1995889
Ha1995889 1
Ha1995889 2
Ha1995889 3
Ha1995889 4

Additional information

Weight 3.6 kg
