MONSGEEK M1 Aluminum DIY Kit 75% Layout RGB Hot-swap Mechanical Keyboard Kit CNC Metal VIA/QMK Gasket-Mount
MONSGEEK M1 is a compact mechanical keyboard with a high-quality CNC machined 6 series aluminum alloy chassis. The keyboard has an 82-key arrangement and houses a multi-function knob for volume and brightness adjustment. In order to deliver a smooth typing experience with soft acoustics, the Monsgeek M1 keyboard has got a gasket-mounted structure design!
Specification:
| General | |
| Brand | MONSGEEK |
| Type | DIY Kit Barebone Keyboard |
| Model | M1 International Version |
| Number Of Keys | 75% 82-Key |
| Product Details | |
| Structure | Gasket-mounted |
| Tape | Y (not pre-installed) |
| Connection | Wired |
| Interface | USB Type C Coiled Cable |

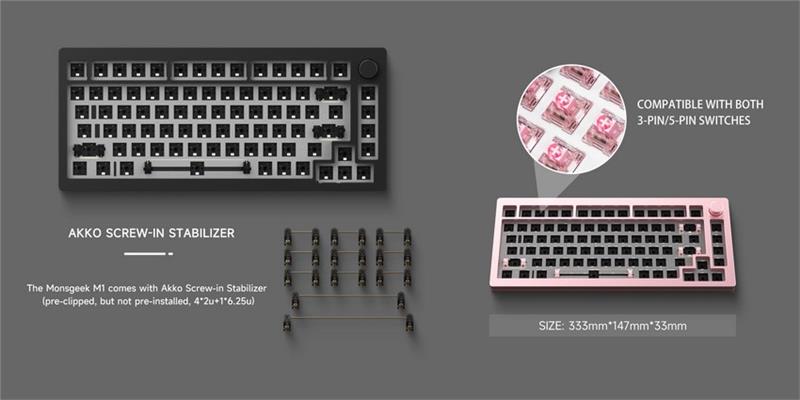

| Stabilizer | Akko Screw-in Stabilizer (pre-clipped, but not pre-installed, 4*2u+1*6.25u) |
| Software | VIA/QMK |
| Backlit | RGB Backlit(South facing) |
| Hot-Swappable | Yes |
| PCB Thickness | 1.2mm |
| Case Material | CNC Aluminum |
| Plate | PC |
| Plate Foam | Y (MonsGeek Custom Material) |
| Switch Pad | IXPE |
| Case Foam | Y (MonsGeek Custom Material 3mm) |
| Drying Agent | Y |
| Dimensions and Weight | |
| Case Technology | Black/Purple/Silver |
| Product weight | Approximately 1.7 KG |
| Package weight | Approximately 2.7 KG |
| Package size (L x W x H) | 46.3 x 20.1 x 8.1 cm / 18.23 x 7.91 x 3.19 inches |
| Package Contents | |
| Package Contents | 1 x M1 DIY Kit, 1 x Coiled Cable, 1 x User Manual |
Features:
1. M Series QC Guide
Learn about what to expect with the order. MonsGeek provides its standard on how we manage aluminum finishes during QC process.
Click here to download.
2. Exquisite Finish With CNC Machined Aluminum Frame:
-The Monsgeek M1 mechanical keyboard has got 6 series aluminum alloy frame made using a high-precision CNC machining process.The process of oxidation gives the keyboard case a better surface finishing and a silky-smooth texture. Not only are the resulting colors extremely long lasting, the process also strengthens the aluminum itself, making it durable, corrosion- and oxidation-resistant.(Only Black/Purple is Anodized)

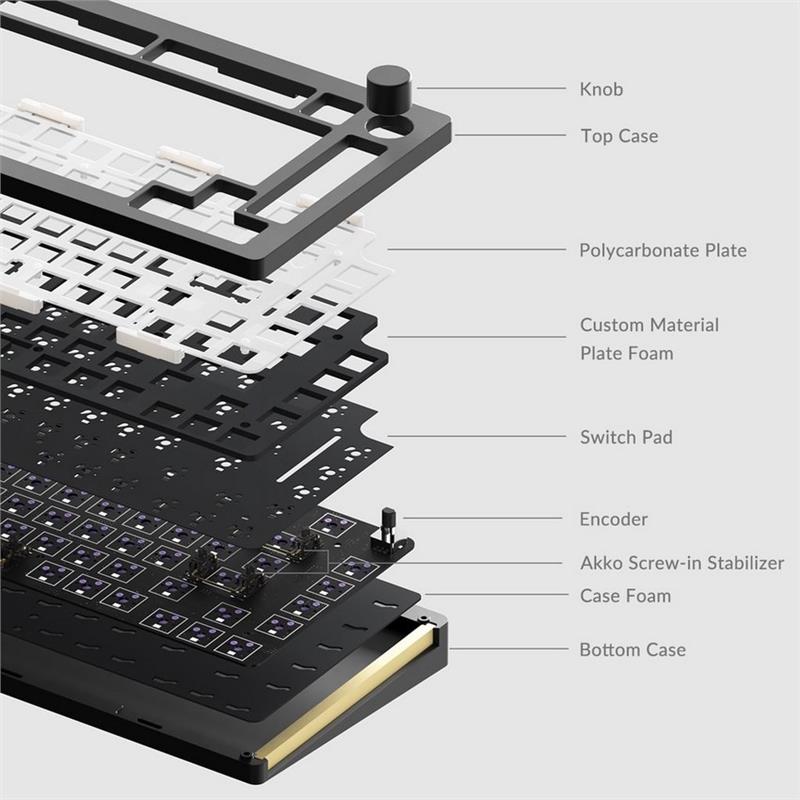

3. Gasket Mounted Structure Design:
-Pure key sound, restore the real feel of the keys.The keyboard has sandwich cotton layers between the PCB plates that effectively absorb the resonance sound inside the cavity and also absorb the keystroke??s pressure resulting in smooth and soft typing feedback.??Keycaps and switches are only for demonstration??
4. 5 Pin Hot-swappable:
-Monsgeek M1 supports 3-pin and 5-pin mechanical switches. Hot-swappable PCB is convenient for replacing other mechanical switches freely without soldering issue. By swapping the switches, you can build your own keyboard that fits your typing habits easily.
5. Multi-Function Rotary Knob:
-Akko Monsgeek M1 is designed with a multimedia knob. By simply rotating left or right and pressing, the keyboard can turn the system volume down, up, or completely muted. Repress the knob and it resumes the playing. The metal rotary knob enables a more efficient way of media control. With this feature, it is the ultimate keyboard for daily use.
6. RGB LED Backlight(South facing PCB):
-Akko Monsgeek M1 features its South facing backlight. With south-facing LEDs, the RGB lights show brighter and brings more fun for customization.(Keyboard is only for demonstration)
Package Included:
1* MONSGEEK M1 Aluminum DIY Kit
Note:- The actual color may be slightly different from the pictures due to the different settings of devices.
– Dissembling the keyboard will immediately void the warranty.
Additional information
| Weight | 2 kg |
|---|---|
| Color: No selection | Black, Purple, Silver |
