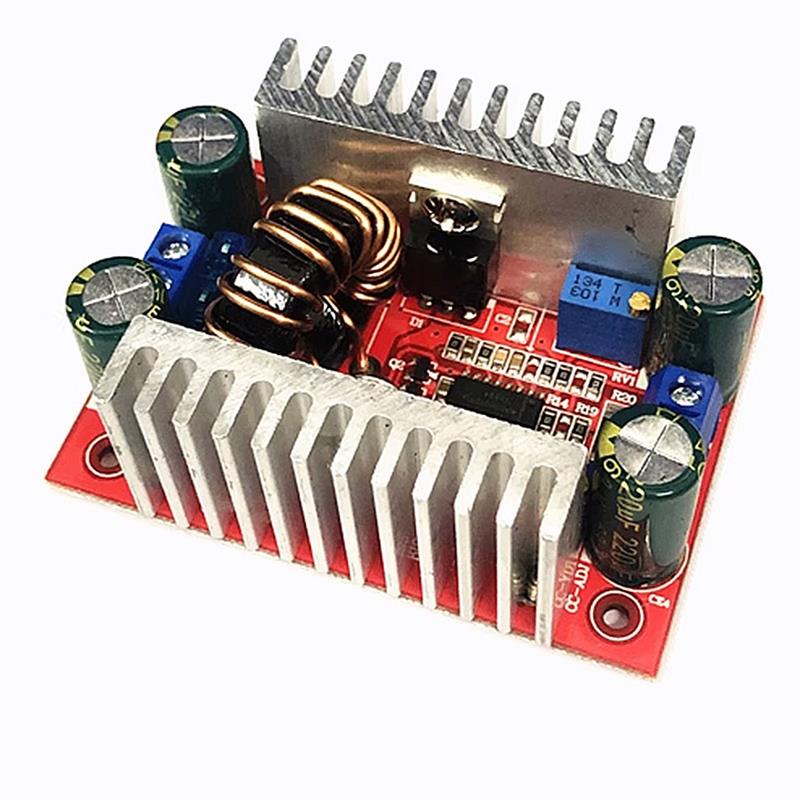

DC 400W 15A Step-up Boost Converter Constant Current Power Supply LED Driver 8.5-50V to 10-60V Voltage Charger Step Up Module
Specification:
Module Name:400W Boost Constant Current Module
Module Type:Non-isolated Step-up Module (BOOST)
Input Voltage:DC 8.5V – 50V
Input Current:Up to 15A (Note:Enhance heat dissipation for currents exceeding 8A)
Quiescent Current:10mA (Increases with higher output voltage)
Output Voltage:10V – 60V (Continuously Adjustable)
Constant Current Range:0.2A – 12A
Temperature Range:-40?FC to +85?FC (Enhance heat dissipation for high ambient temperatures)
Operating Frequency:150KHz
Conversion Efficiency:Up to 96%
Overcurrent Protection:Yes
Input Reverse Polarity Protection:No
Installation:4 mounting screw holes (2.55mm)
Connection Method:Output Connection
Module Size:67mm x 48mm x 28mm (L x W x H)
Weight:60g (Single Module)
Features:
1. Versatile Power Solution:This boost converter module allows you to create DIY power supplies or adapt existing systems with input voltages from 8.5V to 50V and adjustable output voltages from 10V to 60V.
2. Constant Current Output:The module features a wide constant current range of 0.2A to 12A, making it suitable for applications requiring steady and controlled current flow.
3. High Conversion Efficiency:With an impressive conversion efficiency of up to 96%, this module minimizes energy loss and maximizes power output, making it suitable for energy-sensitive projects.
4. Overcurrent Protection:Built-in overcurrent protection ensures the safety of your connected devices by preventing excessive current from damaging the module or connected components.
5. Robust Design:Designed for durability, this module operates within a temperature range of -40?FC to +85?FC. Its compact size and mounting screw holes simplify installation in various setups.
Package Include:
1x Power Supply Module
