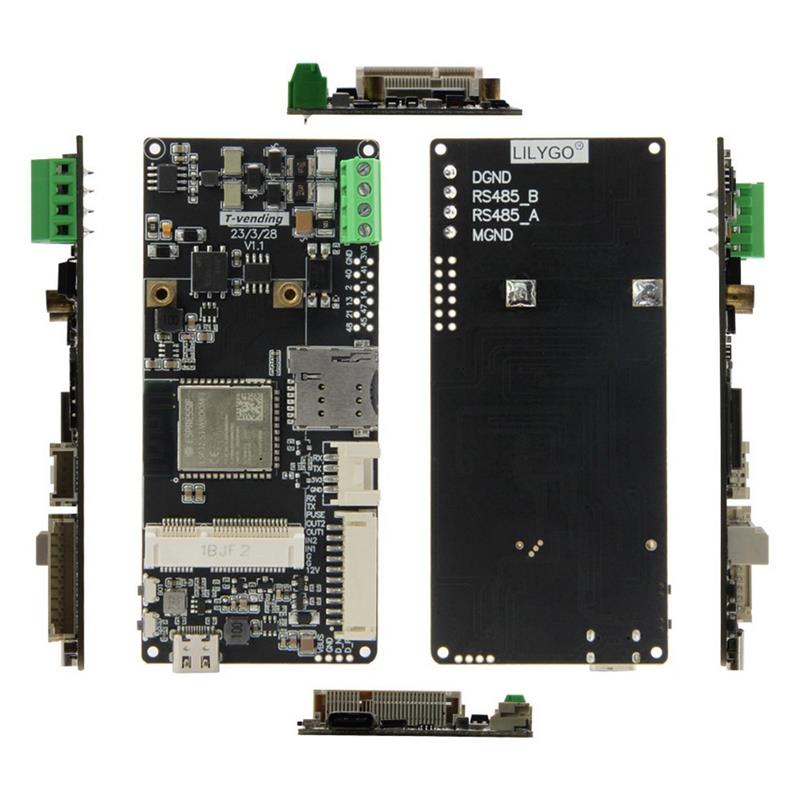

LILYGO T-Vending ESP32-S3 IOT Development Board Support T-PCIE SIM Module WiFi bluetooth RS485 Type-C USB Interface
More information:https://github.com/Xinyuan-LilyGO/T-Vendingspm=a2g0o.detail.1000023.9.5c373YGQ3YGQno
Specification:
MCU:ESP32-S3-WROOM-1 dual-core XTensa LX7 MCU
Wireless Connectivity:Supports 802.11 b/g/n Wi-Fi and bluetooth 5 (LE)
Programming Platforms:for Arduino-IDE, VS Code, ESP-IDF
On-board Features:Reset button, Boot button, Type-C USB for power supply and programming
Support for LILYGO T-PCIE SIM function module and Grove Seat
Full-duplex high-speed RS485 module
Module Name:RSM485MT5V
Port:TTL/RS485
Isolation Voltage:3000V
Isolated Output:5V/50mA 0.25W
Communication Speed:1200~128000bps
Features:
Versatile Connectivity: The LilyGO T-Vending ESP32-S3 IOT Development Board supports both Wi-Fi and bluetooth 5 (LE), enabling seamless connectivity to IoT devices and services.
Easy Programming: The board can be programmed using popular development platforms such as Arduin0-IDE, VS Code, and ESP-IDF, making it convenient for developers to create applications and integrate with various services.
SIM Functionality: With support for the LILYGO T-PCIE SIM function module and Grove Seat, the board can be used for IoT applications that require cellular connectivity, allowing easy access to mobile networks.
Robust RS485 Communication: The integrated RSM485MT5V module provides full-duplex high-speed RS485 communication, ideal for industrial applications that require reliable and noise-resistant data transmission.
Safe and Isolated Design: The board features 3000V isolation voltage, ensuring a high level of safety for sensitive electronic components. The isolated output of 5V/50mA allows for separate power supplies for different components, reducing the risk of interference.
Package Include:
1x T-vending
1x PH2.0 to 2.54 Dubont Wire(10Pin)
1x 2*6pin
2x 2.5*5 Screws
Additional information
| Weight | 0.04 kg |
|---|
