Overview:
The RadioMaster Pocket is a small, lightweight radio that packs a big punch. It is available in two versions, ExpressLRS and MPM CC2500, and both versions come preinstalled with EdgeTX firmware. The Pocket is also equipped with removable stick ends and a foldable antenna, making it easy to transport and store. It is compatible with 18650 batteries, which provide long battery life for hours of fun.In addition to the classic charcoal and transparent case colors, we have a range of optional color cases available in a selection of vibrant colors, including blue, pink, green, and orange. This allows you to personalize the radio to match your own unique style.The RadioMaster Pocket is a great choice for pilots who are looking for a small, lightweight radio with all the powerful features you have come to expect.
Description:Brand:RadioMasterItem:Pocket RadioPhysical dimensions:156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size?@Weight:288 gramsOperating frequency:2.400GHz-2.480GHzInternal RF Options:CC2500 multi-protocol / ELRS 2.4GHz (Optional)
Supported protocols:Module dependentRF power:CC2500:100mW Max (20dBm) / ELRS FCC:250mW Max (24dBm) / ELRS EU-LBT:100mW Max (20dBm)Operational voltage:6.6-8.4v DCControl distance:> 2km @ 20dBmOperating system:EdgeTXControl channels:Maximum 16 (Receiver dependent)Display:128*64 Monochrome LCDBattery:2pcs 18650 batteries (Not included)Charging:Built in USB-C QC3 ChargingUpgradable Firmware:Via USB or the included SD cardGimbal:Hall-effectModule bay:Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Cr0ssfire / Nano Tracer )Features:
* Available in ExpressLRS and MPM CC2500 versions;
* Preinstalled with EdgeTX firmware;
* 18650 Batteries, all the power you need for hours of fun (Batteries not included);
* Portable and lightweight design with removable stick ends and foldable antenna;
* Features hall effect gimbals as standard for smooth cantering & precise response;
* Built-in LED lights help visualize your switch inputs;
* Backlit LCD Screen offering a perfect balance of size and functionality;
* Trim buttons for easy channel trimming;
* External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Cr0ssfire/Nano Tracer;

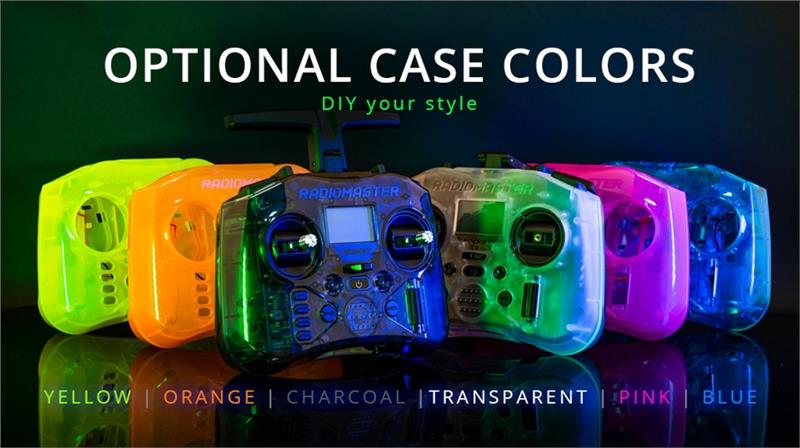

* 2 Stylish Colors of Charcoal & Transparent version and optional case colors in Blue, Pink, Green, and Orange to suit your style
Available with ExpressLRS and CC2500 Version
* CC2500 (standard) Version supports all CC2500 protocols
* ELRS (standard) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependent)
About LBT version
* CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
* ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Gimbal Adjustment
A L-RTo switch M1/M2. Turn clockwise to disable self-centering (Throttle). Turn counterclockwise to enable self-centering (Elevator).
B TTo adjust the throttle stick tension. Turn clockwise to increase stick tension. Turn counterclockwise to decrease stick tension.
C UP-DOWNTurn clockwise to increase vertical stick tension.Turn counterclockwise to decrease stick tension.
D LEFT-RIGHTTurn clockwise to increase horizontal stick tension.Turn counterclockwise to decrease stick tension.

Dimensions

Radio Overview
Package Included:1 * Pocket Radio1 * Custom Carry Pouch1 * USB-C Cable1 * Screen Protector1 * Sticker4 * Low Tension Springs1 * Manual

Additional information
