M0.6 Aluminum Alloy 13-33T Motor Reduction Gear For 1/10 RC Model Car 3.175MM Shaft Brushless Brushed Motor

M0.6 Aluminum Alloy 13-33T Motor Reduction Gear For 1/10 RC Model Car 3.175MM Shaft Brushless Brushed Motor
Specifications:
Name:Motor Reduction Gear
Material:7075 Aluminum Alloy
Color:Titanium Gold
Module:M0.6
Teeth:13T, 14T, 15T, 16T, 17T, 18T, 19T, 20T, 21T, 22T, 23T, 24T, 25T, 26T, 27T, 28T, 29T, 30T, 31T, 32T, 33T
Size:
13T:?3.175*?9*9mm RoHS
14T:?3.175*?9.6*9mm RoHS
15T:?3.175*?10.2*9mm RoHS
16T:?3.175*?10.8*9mm RoHS
17T:?3.175*?11.4*9mm RoHS
18T:?3.175*?12*9mm RoHS
19T:?3.175*?12.6*9mm RoHS
20T:?3.175*?13.2*9mm RoHS

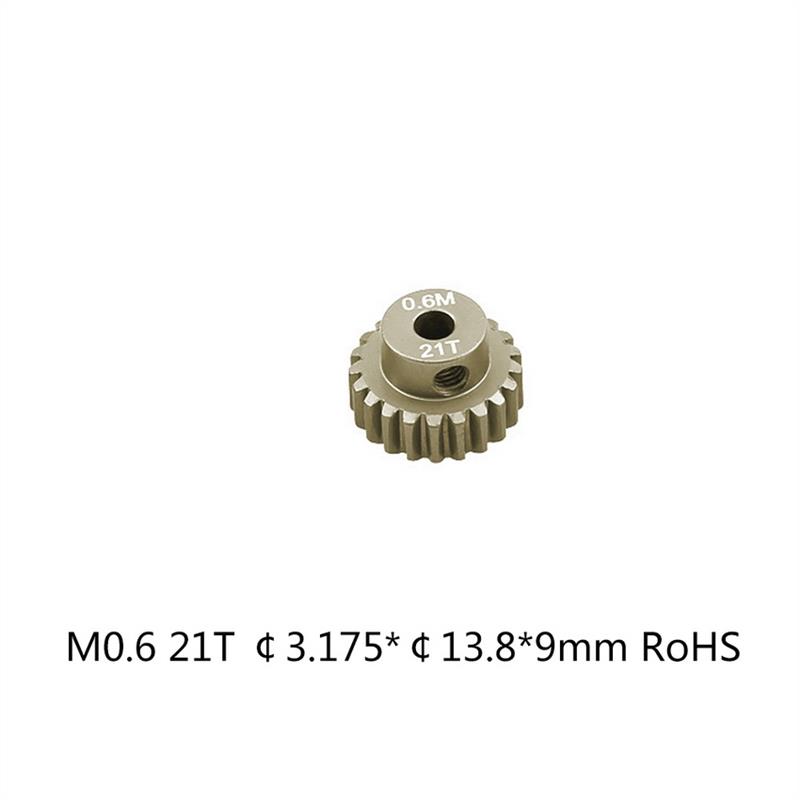

21T:?3.175*?13.8*9mm RoHS
22T:?3.175*?14.4*9mm RoHS
23T:?3.175*?15*9mm RoHS
24T:?3.175*?15.6*9mm RoHS
25T:?3.175*?16.2*9mm RoHS
26T:?3.175*?16.8*9mm RoHS
27T:?3.175*?17.4*9mm RoHS
28T:?3.175*?18*9mm RoHS
29T:?3.175*?18.6*9mm RoHS
30T:?3.175*?19.2*9mm RoHS
31T:?3.175*?19.8*9mm RoHS
32T:?3.175*?20.4*9mm RoHS
33T:?3.175*?21*9mm RoHS
Applicable Model:3.175MM spindle brushless brush motor for 1/10 RC Model car
Features:
Crafted from a 7075 aluminum alloy, providing exceptional durability and longevity.
The M0.6 module design delivers superior performance and precision.
Features a hard anodized surface and rustproof treatment for enhanced gear life and minimal wear and tear.
Boasts easy installation, with an M3 screw hole for firm and secure fit.
Versatility in application, suitable for 3.175mm shaft brushless brush motor in 1/10 RC Model car.
Package Included:
1x Motor Reduction Gear
