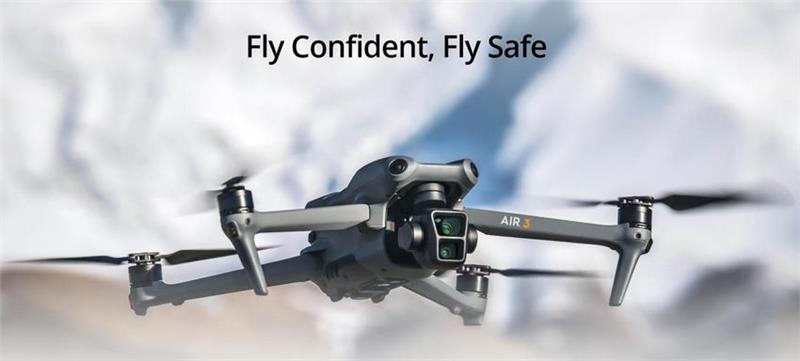

DJI AIR 3 O4 20KM FPV with 1/1.3 CMOS Medium Tele Wide-Angle Dual Primary Cameras 4K 60fps HDR Videos 46mins Flying RC Drone Quadcopter RTF
DJI AIR 3 O4 20KM FPV with 1/1.3?? CMOS Medium Tele & Wide-Angle Dual Primary Cameras 4K 60fps HDR Videos 46mins Flying RC Drone Quadcopter RTF
Specifications:
| Aircraft | Takeoff Weight | 720g |
| Dimensions | Folded (without propellers): 207?G100.5?G91.1 mm (L?GW?GH) Unfolded (without propellers): 258.8?G326?G105.8 mm (L?GW?GH) |
|
| Max Ascension Speed | 10 m/s | |
| Max Descent Speed | 10 m/s | |
| Max Horizontal Speed (at sea level, no wind) | 21 m/s 19 m/s in EU regions. |
|
| Max Takeoff Altitude | 6000 m | |
| Max Flying Time | 46 minutes | |
| Max Hovering Time | 42 minutes | |
| Max Flying Distance (no wind) | 32 km | |
| Max Wind Speed Resistance | 12 m/s | |
| Max Pitch Angle | 35?? | |
| Operating Temperature | -10?? to 40?? C (14?? to 104?? F) | |
| Hovering Accuracy Range | Vertical: ?I 0.1 m (with vision positioning) ?I 0.5 m (with GNSS positioning) Horizontal: ?I 0.3 m (with vision positioning) ?I 0.5 m (with high-precision positioning system) |
|
| Global Navigation SateIIite System | GPS + Galileo + BeiDou | |
| Internal Storage | 8 GB | |
| Camera | Image Sensor | Wide-Angle Camera:1/1.3-inch CMOS, Effective Pixels:48 MP Medium Tele Camera:1/1.3-inch CMOS, Effective Pixels:48 MP |
| Lens | Wide-Angle Camera FOV:82??Format Equivalent:24 mmAperture:f/1.7Focus:1 m to ?? Medium Tele Camera FOV:35??Format Equivalent:70 mmAperture:f/2.8Focus:3 m to ?? |
|
| ISO Range | Video Normal and Slow Motion:100-6400 (Normal)100-1600 (D-Log M)100-1600 (HLG) Night:100-12800 (Normal) Photo 100-6400 (12 MP)100-3200 (48 MP) |
|
| Shutter Speed | Wide-Angle Camera 12MP Photo:1/16000-2 s (2.5-8 s for simulated long exposure) 48MP Photo:1/8000-2 s Medium Tele Camera 12MP Photo:1/16000-2 s (2.5-8 s for simulated long exposure) 48MP Photo:1/8000-2 s |
|
| Max Image Size | Wide-Angle Camera:8064?G6048 Medium Tele Camera:8064?G6048 |
|
| Still Photography Modes | Wide-Angle Camera Single Shot:12 MP and 48 MPBurst Shooting:12 MP, 3/5/7 frames; 48 MP, 3 frames Automatic Exposure Bracketing (AEB):12 MP, 3/5 frames; 48 MP, 3 frames at 0.7 EV step Timed:12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s Medium Tele Camera Single Shot:12 MP and 48 MPBurst Shooting:12 MP, 3/5/7 frames; 48 MP, 3 frames Automatic Exposure Bracketing (AEB):12 MP, 3/5 frames; 48 MP, 3 frames at 0.7 EV step Timed:12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s |
|
| Photo Format | JPEG/DNG (RAW) | |
| Video Resolution | Wide-Angle Camera: H.264/H.2654K:3840?G2160@24/25/30/48/50/60/100*fpsFHD:1920?G1080@24/25/30/48/50/60/100*/200*fps2.7K Vertical Shooting:1512?G2688@24/25/30/48/50/60fpsFHD Vertical Shooting:1080?G1920@24/25/30/48/50/60fps Medium Tele Camera: H.264/H.2654K:3840?G2160@24/25/30/48/50/60/100*fpsFHD:1920?G1080@24/25/30/48/50/60/100*/200*fps2.7K Vertical Shooting:1512?G2688@24/25/30/48/50/60fpsFHD Vertical Shooting:1080?G1920@24/25/30/48/50/60fps |
|
| Video Format | MP4 (MPEG-4 AVC/H.264, HEVC/H.265) | |
| Max Video Bitrate | H.264/H.265:150 Mbps | |
| Color Mode and Sampling Method | Wide-Angle Camera Normal:8-bit 4:2:0 (H.264/H.265)HLG/D-Log M:10-bit 4:2:0 (H.265) Medium Tele Camera Normal:8-bit 4:2:0 (H.264/H.265)HLG/D-Log M:10-bit 4:2:0 (H.265) |
|
| Supported File Systems | exFAT | |
| Digital Zoom | Wide-Angle Camera:1-3x Medium Tele Camera:3-9x |
|
| Gimbal | Stabilization | 3-axis mechanical gimbal (tilt, roll, pan) |
| Mechanical Range | Tilt:-135?? to 70?? Roll:-50?? to 50?? Pan:-27?? to 27?? |
|
| Controllable Range | Tilt:-90?? to 60?? Pan:-5?? to 5?? |
|
| Max Controllable Speed (tilt) | 100??/s | |
| Angular Vibration Range | ?I0.0037?? | |
| Sensing | Sensing Type | Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft |
| Forward | Measurement Range:0.5-18 m Detection Range:0.5-200 mEffective Sensing Speed:Flight Speed ?P 12 m/sFOV:Horizontal 90??, Vertical 72?? |
|
| Backward | Measurement Range:0.5-18 m Effective Sensing Speed:Flight Speed ?P 12 m/sFOV:Horizontal 90??, Vertical 72?? |
|
| Lateral | Measurement Range:0.5-30 m Effective Sensing Speed:Flight Speed ?P 12 m/sFOV:Horizontal 90??, Vertical 72?? |
|
| Upward | Measurement Range:0.5-18 m Effective Sensing Speed:Flight Speed ?P 6 m/sFOV:Front and Back 72??, Left and Right 90?? |
|
| Downward | Measurement Range:0.3-14 m Effective Sensing Speed:Flight Speed ?P 6 m/sFOV:Front and Back 106??, Left and Right 90?? |
|
| Operating Environment | Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting (lux > 15) Downward: Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15) |
|
| 3D Infrared Sensor | Measurement Range:0.1-8 m (reflectivity > 10%) FOV:Front and Back 60??, Left and Right 60?? |
|
| Video Transmission | Video Transmission System | O4 |
| Live View Quality | Remote Controller: 1080p/30fps, 1080p/60fps |
|
| Operating Frequency | 2.4000-2.4835 GHz 5.170-5.250 GHz5.725-5.850 GHz |
|
| Transmitter Power (EIRP) | 2.4 GHz: < 33 dBm (FCC)< 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 33 dBm (FCC)< 30 dBm (SRRC)< 14 dBm (CE) |
|
| Max Transmission Distance (unobstructed, free of interference) |
FCC:20 km CE:10 kmSRRC:10 kmMIC:10 km |
|
| Max Transmission Distance (unobstructed, with interference) |
Strong Interference:urban landscape, approx. 1.5-4 km Medium Interference:suburban landscape, approx. 4-10 kmLow Interference:suburb/seaside, approx. 10-20 km |
|
| Max Transmission Distance (obstructed, with interference) |
Low Interference and Obstructed by Buildings:approx. 0-0.5 km Low Interference and Obstructed by Trees:approx. 0.5-3 km |
|
| Max Download Speed | O4: 10 MB/s (with DJI RC-N2 Remote Controller)10 MB/s (with DJI RC 2)Wi-Fi 5:30 MB/s* |
|
| Lowest Latency | Aircraft + Remote Controller:approx. 120 ms | |
| Antenna | 6 antennas, 2T4R | |
| WiFi | Protocol | 802.11 a/b/g/n/ac |
| Operating Frequency | 2.400-2.4835 GHz5.725-5.850 GHz | |
| Transmitter Power (EIRP) | 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC) 5.8 GHz: < 20 dBm (FCC/SRRC)< 14 dBm (CE) |
|
| Bluetooth | Protocol | Bluetooth 5.2 |
| Operating Frequency | 2.400-2.4835 GHz | |
| Transmitter Power (EIRP) | < 10 dBm | |
| Intelligent Flight Battery | Capacity | 4241 mAh |
| Weight | Approx. 267 g | |
| Nominal Voltage | 14.76 V | |
| Max Charging Voltage | 17 V | |
| Type | Li-ion 4S | |
| Energy | 62.6 Wh | |
| Charging Temperature | 5?? to 40??C (41?? to 104??F) | |
| Charging Time | Approx. 80 minutes (with DJI 65W Portable Charger) Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub) |
|
| Charger | Input | DJI 65W Portable Charger: 100-240 V (AC), 50-60 Hz, 2 A DJI 100W USB-C Power Adapter: 100-240 V (AC), 50-60 Hz, 2.5 A |
| Output | DJI 65W Portable Charger: USB-C5 V, 5 A9 V, 5 A12 V, 5 A15 V, 4.3 A20 V, 3.25 A5-20 V, 3.25 A USB-A5 V, 2 ADJI 100W USB-C Power Adapter:Max 100 W (total) |
|
| Rated Power | DJI 65W Portable Charger:65 W DJI 100W USB-C Power Adapter:100W |
|
| RC-N2 Controller | Model | RC151 |
| Max Operating Time | Without charging any mobile device:6 hours When charging a mobile device:3.5 hours |
|
| Max Supported Mobile Device Size | 180?G86?G10 mm (L?GW?GH) | |
| Operating Temperature | -10?? to 40?? C (14?? to 104?? F) | |
| Charging Temperature | 5?? to 40?? C (41?? to 104?? F) | |
| Charging Time | 2.5 hours | |
| Charging Type | It is recommended to use a 5V/2A charger. | |
| Battery Capacity | 18.72 Wh (3.6 V, 2600 mAh ?G 2) | |
| Type | 18650 Li-ion | |
| Dimensions | 104.22?G149.95?G45.25 mm (L?GW?GH) | |
| Weight | 375 g | |
| Supported Mobile Device Port Type | Lighting, USB-C, Micro-USB | |
| Video Transmission Operating Frequency | 2.4000-2.4835 GHz 5.170-5.250 GHz5.725-5.850 GHz |
|
| Video Transmission Transmitter Power (EIRP) | 2.4 GHz: < 33 dBm (FCC)< 20 dBm (CE/SRRC/MIC) 5.1 GHz:< 23 dBm (CE) 5.8 GHz:< 33 dBm (FCC)< 14 dBm (CE)< 30 dBm (SRRC) |
Feature:
– 1/1.3?? CMOS Medium Tele & Wide-Angle Dual Primary Cameras
– 46-Min Max Flying Time- Omnidirectional Obstacle Sensing- DJI O4 20km HD Video Transmission- Dual-Camera 48MP Photos- Dual-Camera 4K/60fps HDR Videos
Package Included:
AIR 3 (RC-N2):
1 x AIR 3 Aircraft1 x DJI RC-N2 Remote Controller1 x Intelligent Flight Battery1 x Pair of Low-Noise Propellers1 x Type-C to Type-C PD Cable2 x RC-N2 RC Cable (USB-C/Lighting)1 x Gimbal Protector
Additional information
| Weight | 1.42 kg |
|---|---|
| Mode: No selection | DJI Air 3 (RC-N2) |
