30.5×30.5mm Holybro KAKUTE F4 V2.4 Tekko32 F4 4in1 50A ESC Stack Flight Controller 5V 9V BEC / Atlatl HV V2 0.5/ 25/ 200/ 500/ 800mW VTX for RC Drone FPV Racing
Specification:
Brand:Holybro
Model:Kakute F4 v2.4 Stack
Optional Version:NO VTX/ With VTX
| Kakute F4 v2.4 Flight Controller ( Manual) |
MCU:STM32F405 IMU:MPU6000 Barometer:BMP280 OSD:AT7456E 5x UARTs (1,3,4,4,6,7) 128 Mbit Dataflash chip Battery input voltage:2S-8S BEC 9V/3A – Optimized for DJI O3 Air unit BEC 5V/2A 7x PWM Outputs (6 Motor Output, 1 LED) Supports serial receivers (SBUS, iBus, Spektrum, TBS CRSF, ESLR). Mounting – 30 x 30mm, ?4mm hole with M3 Grommets Dimension – 37x37mm Weight ? 7g JST-SH1.0_8pin port (For 4in1 ESCs) JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX) |

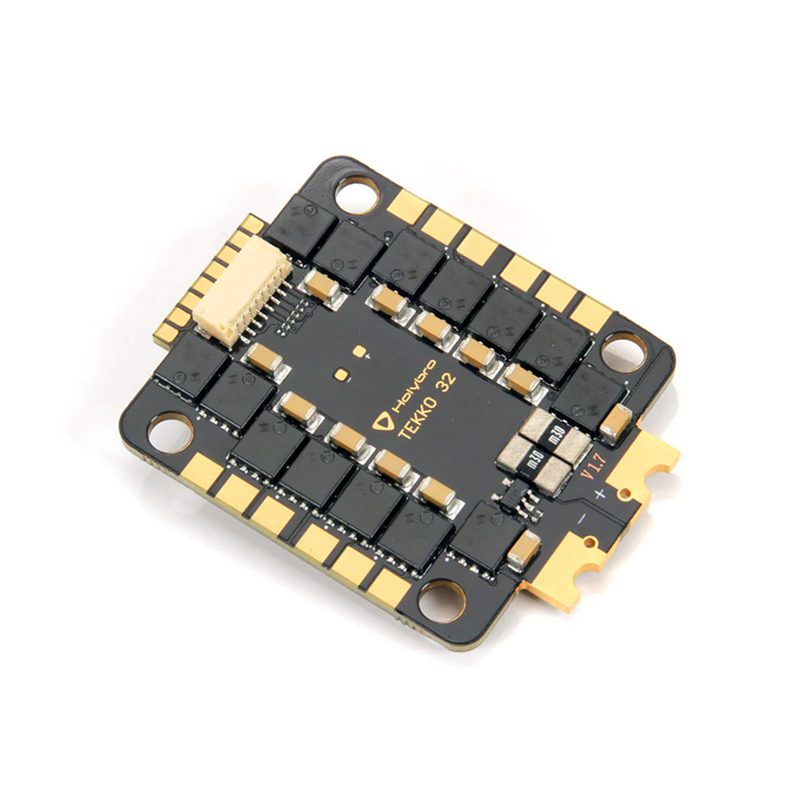

| Tekko32 F4 Metal 4in1 50A ESC ( Pin Cable) |
Continuous Current:50A x4 Burst Current:60A x4 Supports 4-6S battery Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc. ESC telemetry Supported Onboard analog current sensor No output BEC BLHeli_32 firmware 1000uf 35v capacitor included (highly recommended for 6s setup) Amperage meter scale ratio:120 (V1.9 Version) Dimensions:48x37x6mm Weight:13.8g Mounting holes:M4 30.5×30.5mm (M3 grommets included) Features: New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz) PWM Frequency:16k to 96k Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit. |
| NO VTX Version | without VTX Module |
| With VTX Version ( Manual) |
Model:Atlatl HV V2 VTX Output Power:0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW Audio:6.5 MHz Mono Protocolsmart audio2.0 Antenna Connector:MMCX Input Voltage:7 to 28 volts (2-6S LiPo) with absolute maximum 42 volts Dimensions:35x25x7mm (Includes USB height) Mounting Holes:Standard 30.5mm square to center of holes Weight:9.3g ( VTX Table Link ) |
Package Included:
| NO VTX Version | 1x KAKUTE F4 V2.4 FC 1x Tekko32 F4 Metal 4in1 50A ESC 1x Electrolytic capacito:1000uF 35v 1x 8pin to 8pin 1mm pitch 65mm cable 1x 8pin to 8pin 1mm pitch 25mm cable 1x JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System) 1x JST SH 6pin 100mm cable(for Caddx HD Systems) |
| with VTX Version | 1x KAKUTE F4 V2.4 FC 1x Tekko32 F4 Metal 4in1 50A ESC 1x Atlatl HV V2 VTX 1x Electrolytic capacito:1000uF 35v 1x 8pin to 8pin 1mm pitch 65mm cable 1x 8pin to 8pin 1mm pitch 25mm cable 1x JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System) 1x JST SH 6pin 100mm cable(for Caddx HD Systems) 1x 80mm SMA?MMCX Cable 1x JST GHR 4pin 150mm cable |
Additional information
| Weight | 0.056 kg |
|---|---|
| Version: No selection | NO VTX, with VTX |
