30.5×30.5mm Holybro KAKUTE H7 v1.3 Tekko32 F4 Metal 4in1 65A ESC Stack Flight Controller 5V 9V BEC / Atlatl HV V2 0.5/ 25/ 200/ 500/ 800mW VTX for RC Drone FPV Racing
Specification:
Brand:Holybro
Model:KAKUTE H7 V1.3 Tekko32 F4 4in1 65A ESC Stack
Optional Version:NO VTX / With VTX
| Kakute H7 V1.3 ( Manual) |
MCU:STM32H743 32-bit processor running at 480 MHz IMU:MPU6000 Barometer:BMP280 OSD:AT7456E Onboard Bluetooth chip:ESP32-C3 SpeedyBee IOS & Android App Compatible Note:The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) , and turn on automatically when the flight controller is locked (disarm). 6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry) 9x PWM Outputs (8 Motor Output, 1 LED) 2x JST-SH1.0 8pin ESC port (4in1 ESCs, x8/Octocopter compatible) 1x JST-SH1.0 6pin VTX port (For HD System like Caddx Vista & Air Unit) Battery input voltage:7V to 42V BEC 5V 2A Cont. BEC 9V 3A Cont USB Type-C Mounting:30.5 x 30.5mm/?4mm hole with ?3mm Grommets Dimension:35x35mm Weight:8g Firmware: BetaFlight:KakuteH7 (v4.2.11 and above) INAV:KakuteH7 (4.0.0 & above) SD card support added in 4.1.0. ArduPilot:KakuteH7 (4.2.0 & above) |
| Tekko32 F4 Metal 4in1 65A ESC ( Pin Cable) |
Continuous Current:65A x4 Burst Current:75A x4 Supports 4-6S battery Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc. ESC telemetry Supported Onboard analog current sensor No output BEC BLHeli_32 firmware 1000uf 35v capacitor included (highly recommended for 6s setup) Amperage meter scale ratio:180 Dimensions:43 x 44mm / Weight:15.8g Mounting holes:M4 30.5×30.5mm (M3 grommets included) Features: New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz) PWM Frequency:16k to 96k Metal-cased MOSFET for excellent heat dissipation Massive on-board capacitance for noise filtering at 2068uf 3 oz copper PCB design to allow bigger current and better heat dissipation Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit. |
| NO VTX Version | without VTX Module |
| With VTX Version ( Manual) |

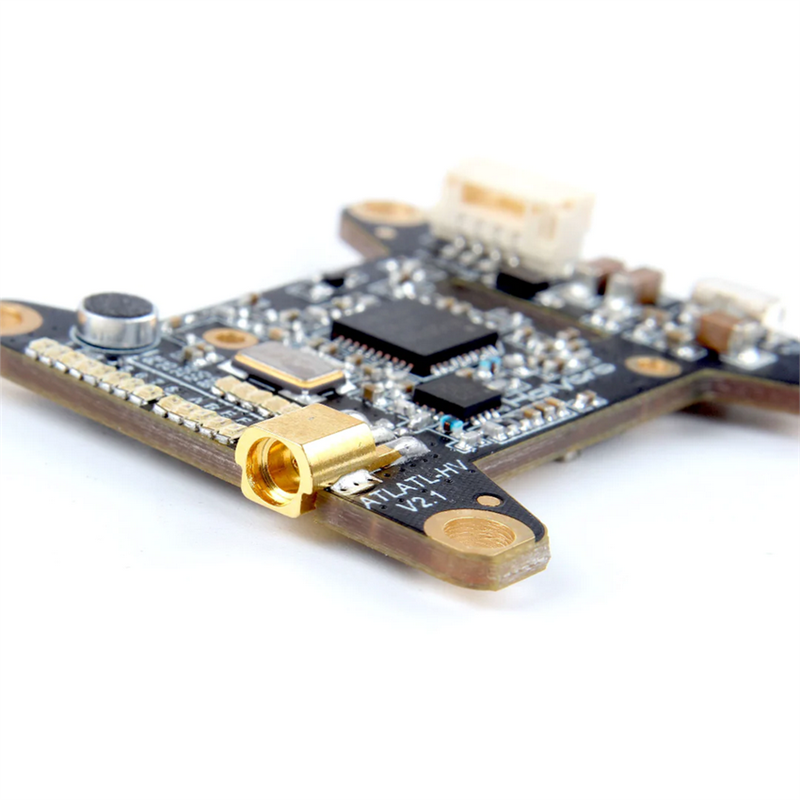

Model:Atlatl HV V2 VTX Output Power:0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW Audio:6.5 MHz Mono Protocolsmart audio2.0 Antenna Connector:MMCX Input Voltage:7 to 28 volts (2-6S LiPo) with absolute maximum 42 volts Dimensions:35x25x7mm (Includes USB height) Mounting Holes:Standard 30.5mm square to center of holes Weight:9.3g ( VTX Table Link ) |
Package Included:
| NO VTX Version | 1x Kakute H7 v1.3 FC 1x Tekko32 F4 Metal 4in1 65A ESC 1x Electrolytic capacito:1000uF 35v 1x 8pin to 8pin 1mm pitch 65mm cable 1x 8pin to 8pin 1mm pitch 25mm cable 1x JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System) 1x JST SH 6pin 100mm cable(for Caddx HD Systems) |
| with VTX Version | 1x Kakute H7 v1.3 FC 1x Tekko32 F4 Metal 4in1 65A ESC 1x Atlatl HV V2 VTX 1x Electrolytic capacito:1000uF 35v 1x 8pin to 8pin 1mm pitch 65mm cable 1x 8pin to 8pin 1mm pitch 25mm cable 1x JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System) 1x JST SH 6pin 100mm cable(for Caddx HD Systems) 1x 80mm SMA?MMCX Cable 1x JST GHR 4pin 150mm cable |
Additional information
| Weight | 0.058 kg |
|---|---|
| Version: No selection | NO VTX, with VTX |
