Surpass Hobby ROCKET RC MINI 2030 3500/4500/5500/6800KV Sensored Brushless Motor for 1/18 Drift Sports Flat Remote Cars Vehicles Models Parts
Description:
Item Brand:Surpass hobby ROCKET
Item Number:MINI 2030
Item Name:Motor/esc/program card
Material:Metal
Color:Red,black,blue and titanium
Product Size:Motor size is about 20*31mm(diameter*length)
Product Weight:Motor Weight is about 35g
Compatible Models:1/18 drift speed racing rc cars vehicles models
Recommended ESC:Mini 28 pro sensored esc(not included)
Online Manual Download:Please Click Here
Specifications:

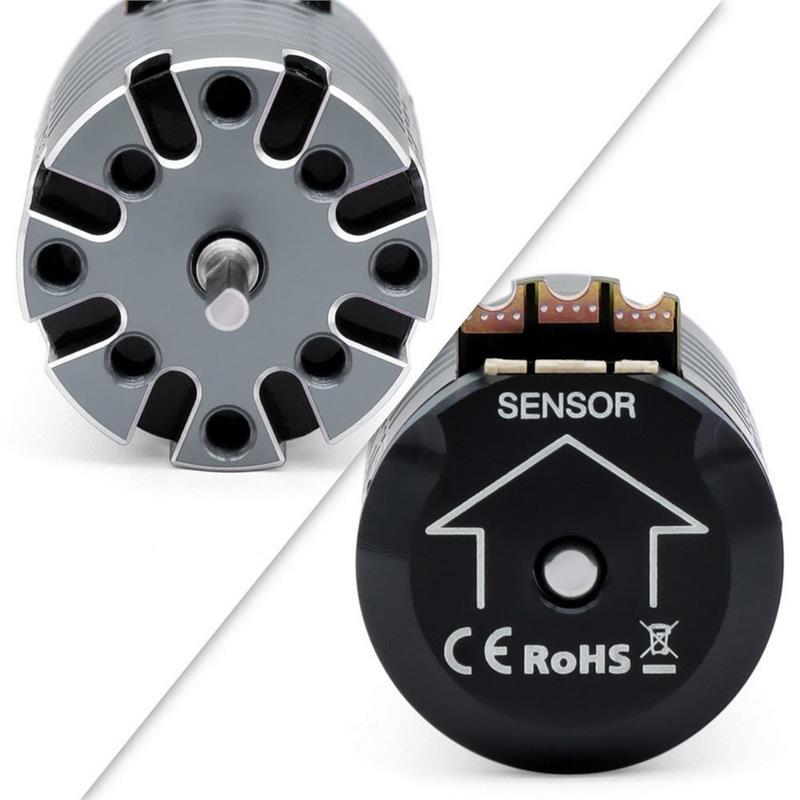

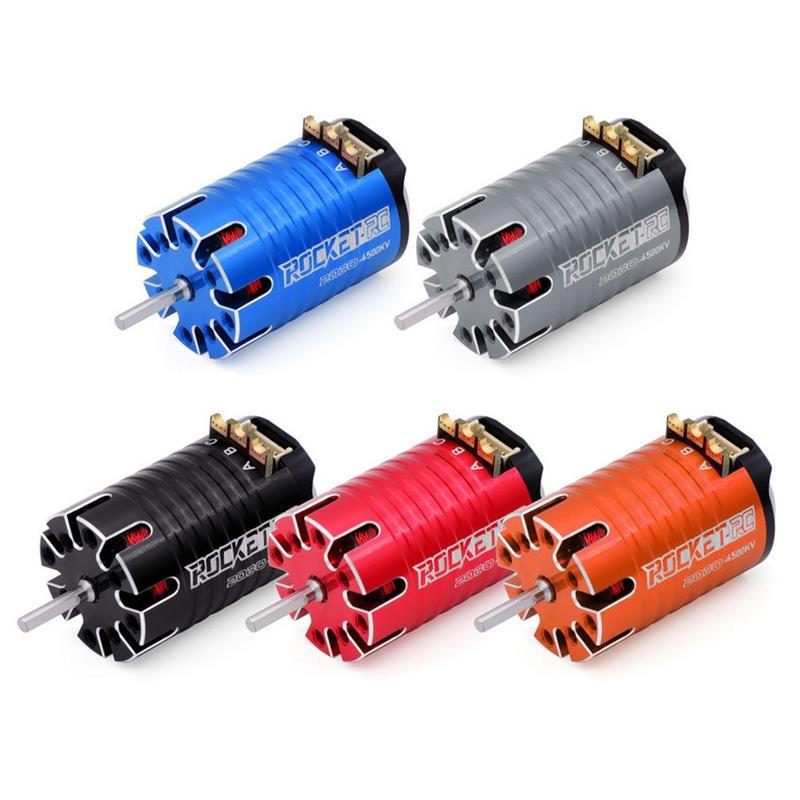

Product:MINI 2030 Sensored Brushless Motor
Sensor Timing:0-5ɳ
KV:3500/4500/5500/6800KV
Color:Silver/Red/Black
Watts:120W
Max Voltage:??8.4V
Max Amps:10/12/14/16A
Rotor Poles:2
IO(7.4V):0.6/0.9/1.4/1.6A
Resistance(m??):0.175/0.100/0.072/0.051
Max RPM:50000
Rotor Size(mm):??10×15
Shaft(mm):??2×10
Features:
Surpass Hobby patent-Resistance-free design of the rotor.
The Maximum power of motor 120w & output around 92%.
The thickened gold plated PCB circuit board easy welding ESC cables, more perfect car frame wiring.
The standard sensor port 5PIN-1.27 terminal sensor wires connection.
High slot full resistance internal resistance for high power output.
NMB imported from Thailand, Peilin runs extremely smoothly at high speed.
Unique stator adopts 0.2mm silicon steel sheet, efficiency rate can reach 94%.
Package Included:
1x MINI 2030 Sensored Brushless Motor
1x Cable
Additional information
| Weight | 0.07 kg |
|---|---|
| KV: No selection | 3500KV, 4500KV, 5500KV, 6800KV |
| Color: No selection | Black, Black 1, Black 2, Black 3, Red, Red 1, Red 2, Titanium, Titanium 1, Titanium 2, Titanium 3 |
