RIDEN RD6018 RD6018W USB WiFi DC to DC Voltage Step Down Power Supply Module Buck Converter Voltmeter Multimeter 60V 18A 1080W
Note before buying:
1. RD6018 series has two versions:RD6018 and RD6018-W,RD6018-W have WIFI board , RD6018 don’t have . RD6018-W can use WIFI board to connect APP, also use USB micro cable to connect PC solftware . RD6018 don’t have WIFI board, only support PC software by connecting with USB micro cable, no support APP. For wifi board to connect PC software, now it did not support.
Note:WiFi connection is a test function, due to poor compatibility of some computers, if you cannot connect PC software via WiFi, please ignore this function. For this function, we do not provide any guarantee and technical support, and we will decide whether to keep this function based on customer feedback.
2. For PC software, it only support win 7 and above for now. For APP, it only support android 5.0 and above. For APP and PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can make order, or else stop buying. If you don’t test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.

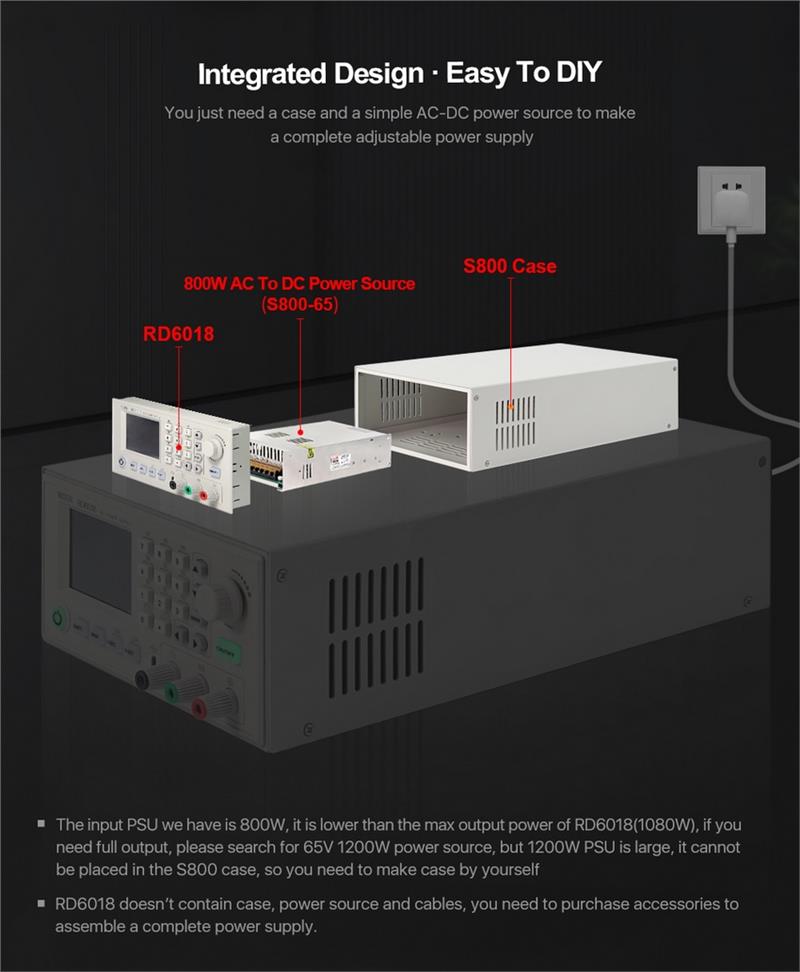

3. For input AC-DC switch power supply, The input PSU we have is 800W, it is lower than the max output power of RD6018(1080W), if you need full output, please search for 65V 1200W power source, but 1200W PSU is large, it cannot be placed in the S800 case, so you need to make case by yourself
4. There is a BACKUP fuse in the RD6018/RD6018W box, if you burn the fuse, you can insert the fuse in the socket next to the burned one for temporary use, but the fuse cannot support big currnet flow, so it is better to remove the damaged fuse and solder the good fuse on the same position
5. If RD6018W can connect to the hotspot shared by the mobile phone but cannot connect to the router, you need to shut down the client isolation/ AP isolation and WMM function.
6. Please use the matching front-end power supply. (Product ID:1995201) If the instrument is damaged due to the incorrect power supply, we will not provide after-sales guarantee.
Technical parameters:
| Model | RD6006/RD6006-W | RD6012/RD6012-W | RD6018/RD6018-W | RD6006P/RD6006P-W | RD6012P/RD6012PW | RD6024/RD6024W |
| Suitable Shell | / | / | ID:1995241 | / | / | ID:1995241 |
| Suitable power supply | / | / | ID:1995201 | / | / | ID:1995203 |
| Input voltage range | 6-70.00V | 7-70.00V | 7-70.00V | 6-70.00V | ||
| Output voltage range | 0-60.00V | 0-60.000V | 0-60.000V | 0-60.00V | ||
| Output current range | 0-6.000A | 0-12.00A | 0-18.00A | 0-6.0000A | 0-6.0000A/0-12.000A | 0-24.00A |
| Output power range | 0-360W | 0-720W | 0-1080W | 0-360W | 0-720W | 0-1440W |
| Input voltage measurement resolution | 0.01V | |||||
| Output voltagesetting measurement resolution | 0.01V | 0.001V | 0.01V | |||
| Output current setting measurement resolution | 0.001A | 0.01A | 0.0001A | 0.001A/ | 0.01A | |
| 0.0001A | ||||||
| Battery voltage measurement resolution | 0.01V | |||||
| Input voltage measurement accuracy | ??(1%+5 digits) | |||||
| Output voltage accuracybetween setting and measurement | ??(0.3%+3 digits) | ??(0.5??+4 digits) | ??(0.3%+3digits) | |||
| Output currentaccuracybetween setting and measurement | ??(0.5%+5 digits) | ??(1??+6 digits) | ??(0.5%+5digits) | |||
| Battery voltage measurement accuracy | ??(0.5%+3 digits) | |||||
| Automatic cut off current valuewhen charging | 10mA | 100mA | Set by yourself | Set by yourself | Set by yourself(higher than 100mA) | |
| Output ripple typical | 100mV VPP | 250mV VPP@6A | 20mV VPP | 100mV@12A??150mV@24A VPP | ||
| Working temperature range | -10??~40?? | |||||
| External sensor Temperature range: | -10??~100??/0?H~200?H | |||||
| External sensor Temperature accuracy: | ??3??/??6?H | |||||
| Constant voltage moderesponse time | 2ms (0.1A-5A Load) | |||||
| Constant voltage mode loadregulation | ??(0.1%+2 digits) | |||||
| Constant current mode loadregulation | ??(0.1%+3 digits) | |||||
| Capacity measurement range | 0-9999.99Ah | |||||
| Energy measurement range | 0-9999.99Wh | |||||
| Capacity and energy statistical error | ??2?? | |||||
| Buck working mode | Voltage drop >1Vand >10% | (input voltage??1.1) -2 | (input voltage??1.1) -1 | |||
| Cooling fan start condition | Output voltage>40V or Output current>4A or System temperature>45?? | Output current>8A or System temperature>45?? | Output current >4A or System temperature>45?? | Output current>4A or System temperature>50?? | Output current>8A or System temperature>45?? | |
| Cooling fan shut down condition when working | Output voltage<40Vand Output current<3.9Aand System temperature<45?? | Output current<7.9Aand System temperature<45?? | Output current <3.9A and System temperature <45?? | Output current <3.9A and System temperature <50?? | Output current <7.9A and System temperature <45?? | |
| Over temperature protection | System temperature>80?? | |||||
| Screen brightness setting | 0-5(6 level in total) | |||||
| Screen | 2.4inch color HD display | |||||
| Weight(with package) | About 0.58kg | About0.61kg | About0.68kg | About0.62kg | About 0.66kg | About 0.72kg |
| Product dimension | 167*81*65mm | 167*81*69mm | 167*81*65mm | 167*81*69mm | ||
| Support USB communication | YES | |||||
| Support WiFicommunication | Only W version has WiFi communication |
Documents:
RD6018(W) operation instructon:Click here to open
APP download:
Android system:download at file link (Support android 5.0 -android 10.0):Click here to open or Search RdPower to download , support Android 5.0 and above phone
IOS system:Search RdPower to download , support IOS10.0-IOS13.4 System
Instruction video for manual:
a. Battery Charging Function Introduction:https://youtu.be/irTbqfqtgU0
b. Output Voltage and Output Current Setting:https://youtu.be/S6Kan66dNsk
c. Data Group Quick Storage and Call out:https://youtu.be/eo5saPjOGpo
d. Keypad lock and unlock:https://youtu.be/zxpmasJyQ6Y
e. System Setting:https://youtu.be/Q9d3rIgIrOc
f. Main Page Style Setting:https://youtu.be/f51VDiY2VHE
g:Storage Data Setting:https://youtu.be/i1kTeurS13I
h:System Information:https://youtu.be/Um4NQObeeJE
i:IOS APP Download, Installation and Connection:https://youtu.be/nH2HYwop0TE
j:IOS APP Operation:https://youtu.be/lXSw1CM9IY8
k:Android APP Download, Installation and Connection:https://youtu.be/QwyBEUCnp9c
l:Anroid APP Operation:https://youtu.be/hqrF4keTfbE
m:PC Software Download and basic operation:https://youtu.be/mjt1RMaah1Y
o:Firmware Upgrade:https://youtu.be/NOoLfDw0DiY
p:Calibration:https://youtu.be/c9sn1wY2mjE
q:Logo Update:https://youtu.be/vuVhBsohWts
Package includes:(optional)
RD6018 version:
1 x RD6018 power supply without WiFi module
RD6018W version:
1 x RD6018W power supply with WiFi module
Additional information
| Weight | 0.55 kg |
|---|---|
| The Type: No selection | RD6018, RD6018W |
