50A 100A 200A 300A Car Battery Switch DC 32V Disconnecter Power Isolator Cut Off Rally Switch Kit For Car Motorcycle Truck Boat

50A 100A 200A 300A Car Battery Switch DC 32V Disconnecter Power Isolator Cut Off Rally Switch Kit For Car Motorcycle Truck Boat
Specification:
Name:Car Battery Switch
Type:50A / 100A / 200A / 300A

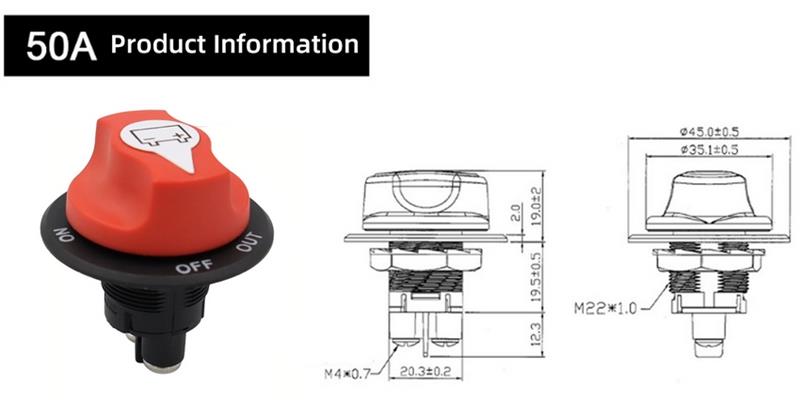

-50A:
Mounting hole diameter:22mm
Diameter of terminal post:4mm
Continuous rating:50AMPS 50VDC MAX
Rated starting current:300A for 5 seconds
Intermittent rated current:75A
Contact resistance:50M MAX
-100A:
Mounting hole diameter:29mm
Diameter of terminal post:6mm
Continuous rating:100AMPS 32VDC MAX
Rated starting current:500A for 5 seconds
Intermittent rated current:150A
Contact resistance:50M MAX
– 200A:
Mounting hole diameter:38mm
Diameter of terminal post:8mm
Continuous rating:200AMPS 32VDC MAX
Rated starting current:1000A for 5 seconds
Intermittent rated current:300A
Contact resistance:50M MAX
– 300A:
Mounting hole diameter:52mm
Diameter of terminal post:10mm
Continuous rating:300AMPS 32VDC MAX
Rated starting current:2000A for 5 seconds
Intermittent rated current:450A
Contact resistance:50M MAX
Features:
1.High-Quality Construction:Crafted from premium ABS and metal materials, our Car Battery Switch is designed to ensure maximum strength and durability. It’s robust, resistant to aging and abrasion, guaranteeing long-lasting usage and optimal performance over time.
2.Waterproof with Protective Cover:Our Battery Switch comes with a protective waterproof cover that safeguards the keyhole. Its compact design and sleek modern appearance add aesthetic value, making it not only functional but also visually appealing. It’s easy to install and wire, offering professional-level reliability.
3.Safe Battery Disconnection:This battery isolator switch ensures safe disconnection of the battery when your vehicle or boat is not in use, eliminating any power draw. It features two clearly marked positions, ON and OFF, for easy and safe operation.
4.Efficient Power Handling:Rated for 75 Amps intermittent and 50 Amps continuous at a maximum of 50V DC, our Car Battery Switch ensures efficient power management. It boasts a cranking rating of 300 Amps for 5 seconds and a maximum contact resistance of 50 milliohms, ensuring optimal performance even in high-demand situations.

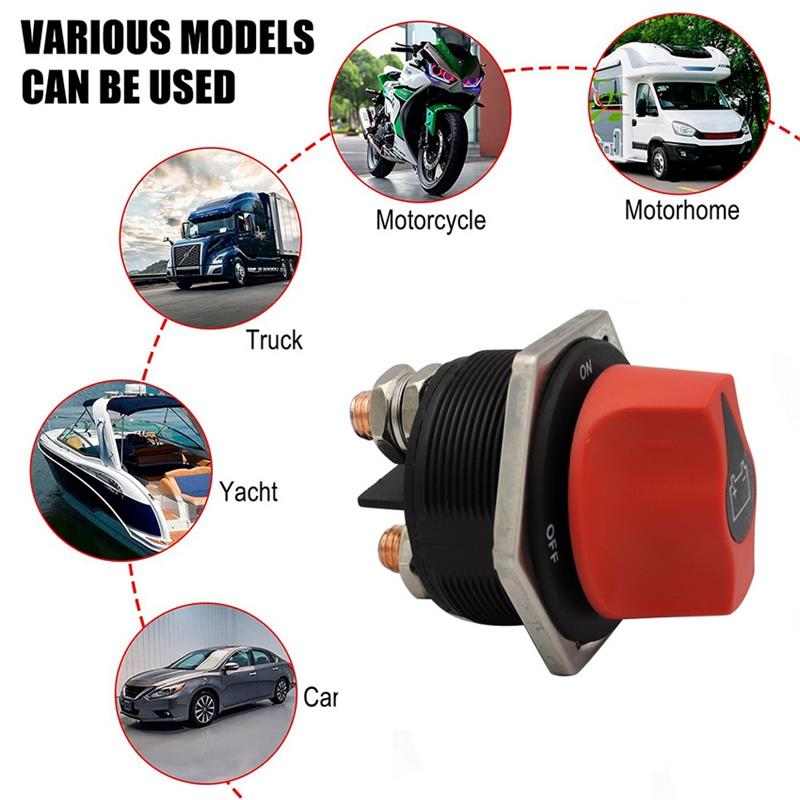

5.Wide Range of Applications & Quality Assured:The waterproof battery isolator switch is ideal for use in cars, off-road vehicles, trucks, motorcycles, boats, and more. It offers high reliability and professional characteristics.
Package Includes:
1x Car Battery Switch
