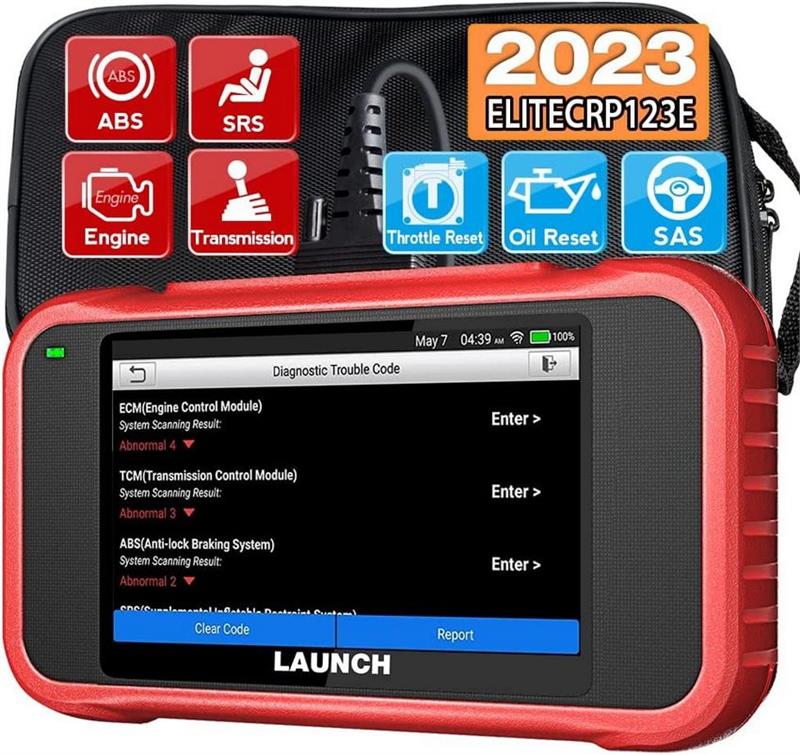

LAUNCH CRP123E Automobile Fault Diagnosis Instrument Automobile Detector OBD2 Engine ABS Airbag SRS Transmission Diagnostic
Introduction:
Creade Professional 123E is an evolutionary smart solution for passenger car diagnosis. It inherits from LAUNCHrsquos advanced diagnostic technology and is characterized by covering a wide range of vehicles, with powerful testing functions and providing accurate results.
CRP123E supports all 10 OBDII test patterns for comprehensive diagnosis. CRP 123E also supports ABS system diagnosis. SRS, ESP and AT.
Specification:
Brand:LAUNCH
Screen:5inch touch screen
RAM:1G
ROM:8GB
Battery:4000 mAh rechargeable lithium battery
OBD II input voltage range:9~18V
Charging Method:DC 5V charging cable or diagnostic cable via vehicle connection DLC
Dimension:228mm x 125mm x 34.5mm
Working temperature:-10 to 50 degrees (14 to 122 degrees)
Storage temperature:-20 to 70 degrees (-4 to 158 degrees)
Language:English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese
Features:
1. Smart Diagnosis (Auto Detection):Once the tool and the vehicle are successfully connected, the system starts the auto detection process. Once the whole process is finished successfully, a diagnostic report will be automatically generated and sent to your email box (if linked).
2. Manual Diagnosis:If auto detection fails, manual diagnosis is also available. Diagnostic functions include:version information, read DTCs, clear DTCs, and read data stream (supports 3 display modes:Value, Graph, and Fused).
3. OBD II Diagnosis:10 modes of OBD II test supported, including EVAP, O2 Sensor/M Readiness, MIL Status, VIN Information and On-Board Monitor Tests etc.
4. One-click update:It allows you to update your diagnostic software and APK online.
5. Diagnostic History:This function provides quick access to tested vehicles and users can choose to view test report or continue from last operation, no need to start from scratch.
6. Diagnostic Feedback:Please use this option to submit the vehicle issue to us for analysis and troubleshooting.
7. DTC Library:Allows you to retrieve the definition of Diagnostic Trouble Code from the abundant DTC database.
8. Displays the real-time voltage of the battery after successfully connected to the vehicle.
Frequently asked questions:
1. The system stops while reading the data stream. What is the reason
It may be caused by a thin connector. Turn off this tool firmly.
Plug in the connector and turn it back on.
2. main unit displays flash when starting the engine.
Caused by electromagnetic problems, and this is a normal phenomenon.
3. no response when communicating with the on-board computer.
Please confirm the proper voltage of the power supply and check whether the throttle
It has been closed, the transmission is in neutral, and the water is in
Right temperature
4. What to do if the system does not start automatic entrance detection
Check the following possible reasons:
bull if the tool is properly connected to the DLC vehicle.
Bull if the ldquoautomatic detection in the connection switch is off. If so, slide it to In.
5. why are there so many fault codes
Usually, itrsquos caused by a bad connection or grounding circuit.
6. How to update system software
1. Turn on the tool and ensure a stable internet connection.
2. Press ldquosettingrdquo in the working menu, select ldquoaboutrdquo->ldquoversionrdquo and press ldquoDetect the
System version to enter the system update page.
3. Follow the onscreen instructions step by step to finish the process. Can.
Take several minutes depending on the speed of the internet. Be patient. After.
The update finished successfully, the tool will restart and enter automatically work menu.
Packing List:
1x Creade 123E Professional Headset
1x Obd II Diagnostic Cable
1x DC 5V Charging Cable
1x User Manual
1x Carry Bag
Note:
1. CRP123E is an upgraded version of CRP123 and Creade VII+, supports more cars
2.Fast chassis auto-detection, support Wifi connection, one key upgrade
3. Automatically generates and uploads diagnostic reports
Additional information
| Weight | 1 kg |
|---|
