PTS200 V2 100W Electric Soldering Iron Portable Quick Warm-Up Tin Melting Open Source Supports PD3.0 Firmware Upgradeable Battery Not Included T12/TS100 Compatible

PTS200 V2 100W Electric Soldering Iron Portable Quick Warm-Up Tin Melting Open Source Supports PD3.0 Firmware Upgradeable Battery Not Included T12/TS100 Compatible
Features:

– Powerful and Portable:PTS200 V2 is a highly capable portable electric soldering iron with a maximum power output of 100W, offering desktop station-level performance in a compact size.
– Quick Heat-up:With just 8 seconds, it can reach a temperature of 450 degrees, enabling rapid tin melting for efficient soldering.
– Wide Compatibility:Supports PD3.0 and QC2.0 QC3.0 protocols, compatible with fast charging adapters, power banks, and DC power supply (DC to USB-C cable required).
– ESP32 MCU and Open-source Software:Utilizes ESP32 MCU and open-source software, allowing users to customize their firmware with continuous updates available.
– One-button Heating Mode:Simplifies the soldering process, making it easier and more efficient.
– Durable and Heat-dissipating Design:CNC metal body with ergonomic design ensures durability, reliability, and effective heat dissipation.
– OLED Display:Features a 0.96-inch OLED high-definition screen for clear and detailed information.
– Precision Gyroscope and Sleep Function:Built-in precision gyroscope enables high sensitivity automatic sleep function for power-saving.

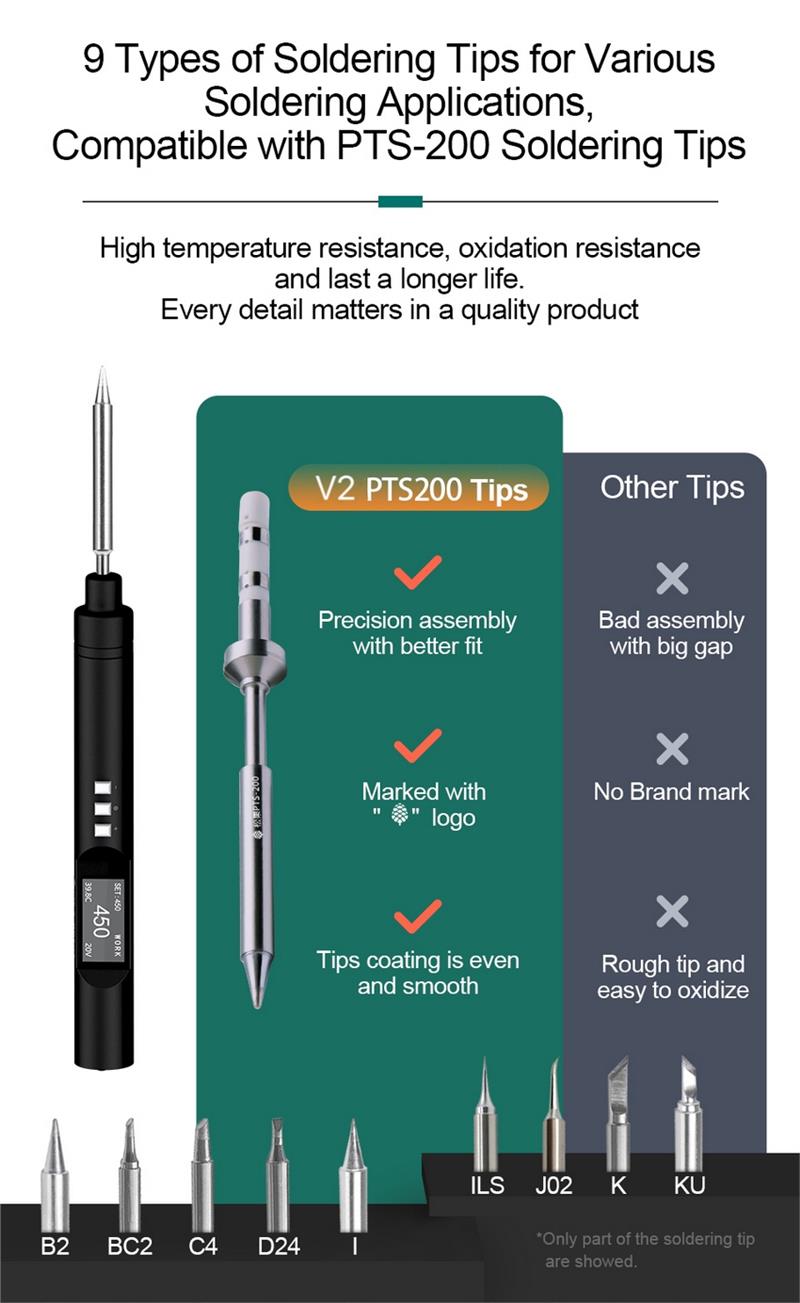

Versatile Compatibility:Compatible with T12/TS100/TS101 heating cores using different fasteners, providing convenient usability.
– Customizable Settings:Users can name the soldering head and calibrate temperature curves using the multi-segment calibration function.
– Adjustable Inspiration Level and Sleep Time:Offers adjustable inspiration level for awakening the machine and sleep time settings.
– Large Font Mode and Language Support:Supports large font mode and easy switching between Chinese and English.

Specifications:

Screen:0.96 inch OLED
Power and Data Interface:TYPE-C
Total Length (with TS welding head):188mm
Total Length (with T12 welding head):232mm
Weight:About 48g
Maximum Output Power:100W (depending on power supply)
Temperature Control Range:50-450 degrees
Temperature Stability:??5%
Soldering Iron Head Resistance:4 ?? (customized heating core)
PD Input Voltage:9V 2A/12V 1.5A/15V 3A/20V 5A

Package Included:

1 x PTS200 V2 Soldering Iron with Metal Protection Cap
1 x Fastener for T12 Heating Core
2 x Insulating Sheath
1 x 100W Heating Element
