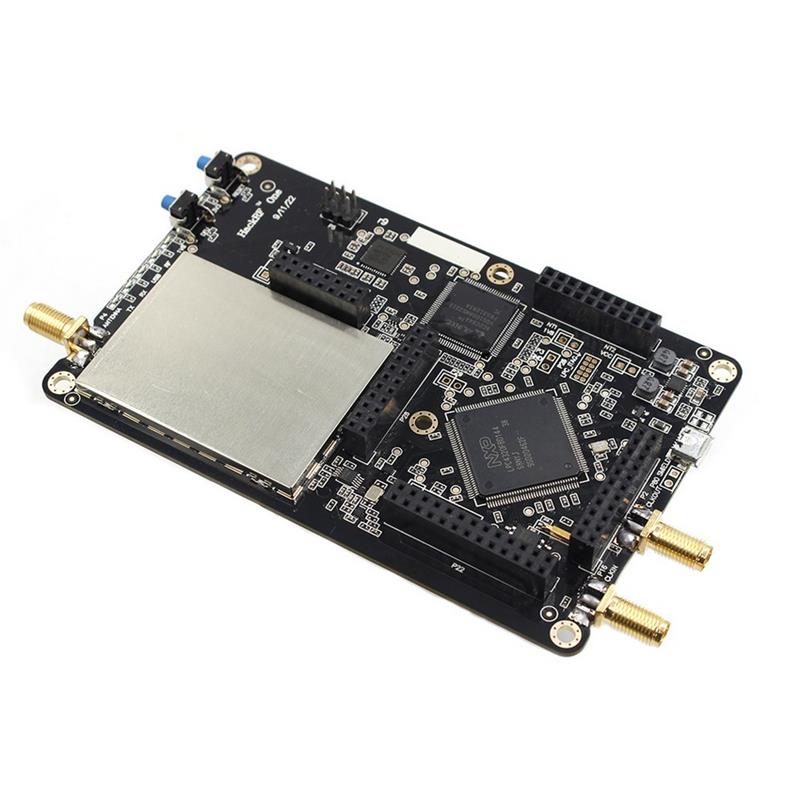

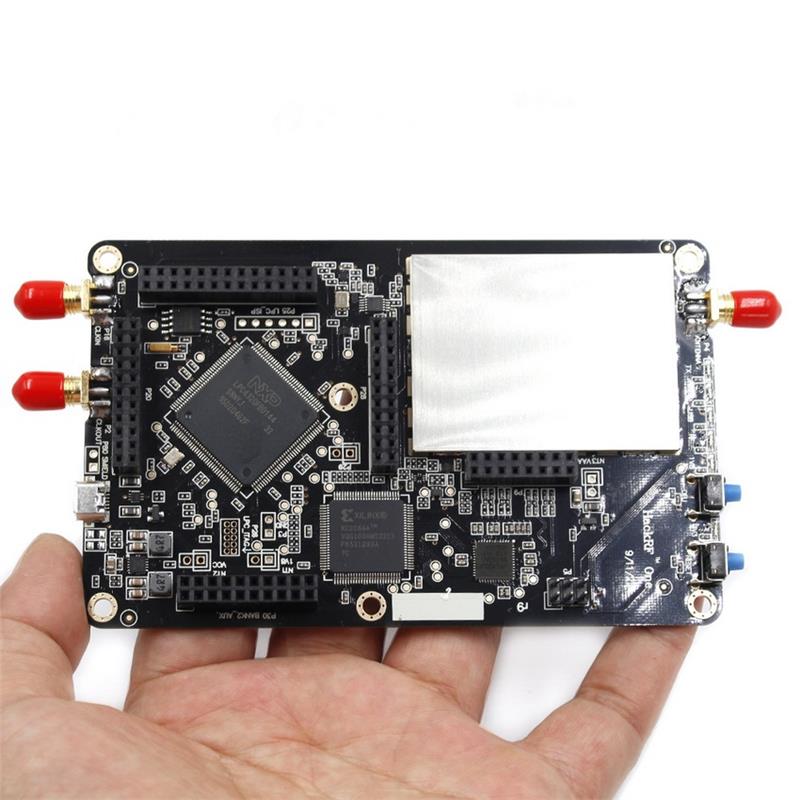

HackRF One Radio Platform 1MHz to 6GHz Software Defined Radio Platform Development Board RTL SDR Demo Board Kit Dongle Receiver Ham Radio
Specification:
Operating Frequency:1 MHz to 6 GHz
Transceiver Type:Half-duplex
Sampling Rate:Up to 20 million samples per second
Quadrature Samples:8-bit I and 8-bit Q
Compatibility:Works with GNU Radio, SDR#, and other software-defined radio applications
RX and TX Gain:Software-configurable for flexible signal amplification
Baseband Filter:Software-configurable for optimal signal processing
Antenna Port Power:Software-controlled with a maximum of 50 mA at 3.3 V
Antenna Connector:SMA female
Clock Input and Output:SMA female for synchronization purposes
Programming:Convenient buttons for easy programming
Expansion:Internal pin headers for future expansion options
USB Connectivity:Hi-Speed USB 2.0 for seamless data transfer
Power Source:USB-powered for easy setup and operation
Open Source Hardware:Offers the ability for customization and community-driven development
Features:
1. Wide Frequency Range:The SDR development board covers an impressive frequency range from 1 MHz to 6 GHz, making it suitable for a variety of radio applications.
2. Flexible Transceiver:The half-duplex transceiver allows for both transmission and reception of radio signals, providing versatility in testing and development.
3. High Sampling Rate:With a sampling rate of up to 20 million samples per second, the board can capture and process signals with precision and accuracy.
4. Software Compatibility:It is compatible with popular software-defined radio applications such as GNU Radio and SDR#, offering a wide range of tools and capabilities for signal processing and analysis.
5. User-Friendly Design:The board features convenient buttons for programming and internal pin headers for future expansion, ensuring a user-friendly experience for both beginners and advanced users.
Package Include:
1?? Module Board
Additional information
| Weight | 0.1 kg |
|---|
