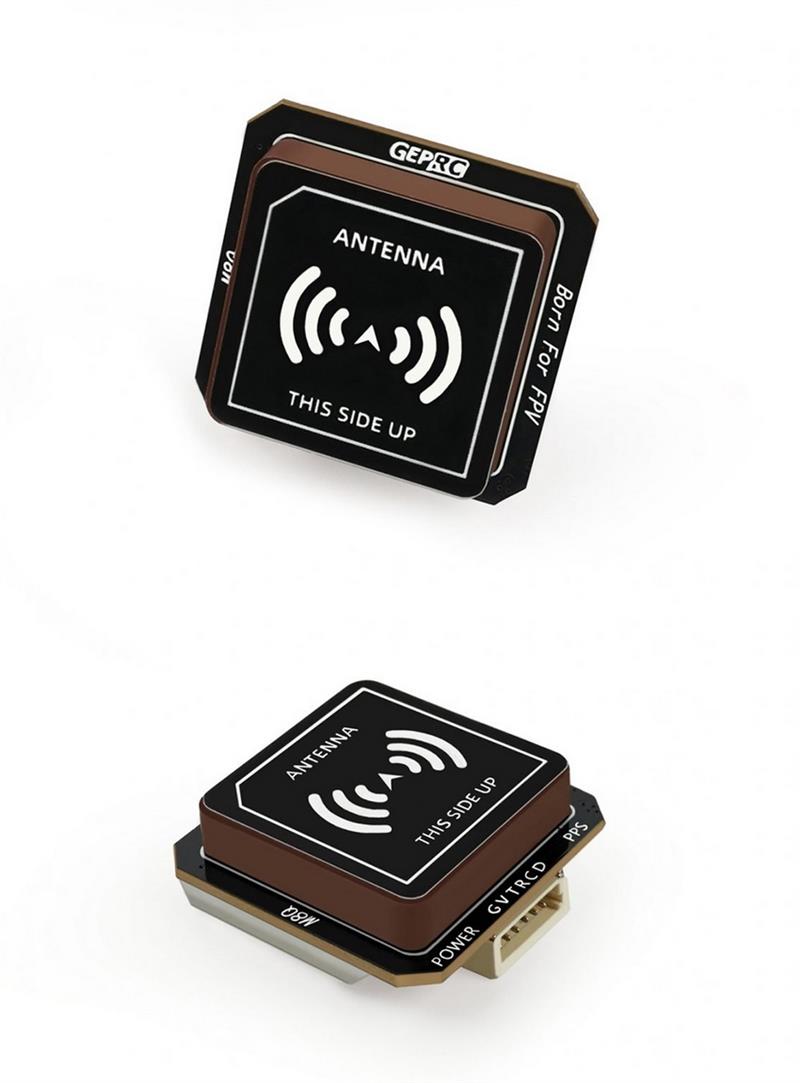

GEPRC GEP M8Q GPS Module 3.3-5V Built-in QMC5883L Compass for RC Drone FPV Racing Multi-Rotor Fixed-wing RC Airplane

GEPRC GEP M8Q GPS Module 3.3-5V Built-in QMC5883L Compass for RC Drone FPV Racing Multi-Rotor Fixed-wing RC Airplane
Specifications:
Brand:Geprc
Model:GM8Q GPS
Optional Version:GPS+BDS / GPS+GLONASS
Input Voltage:3.3V-5V
Receiving Format:GPS??GLONASS??BDS (Choose GLONASS or BDS)
Channel:72ch
Compass:QMC5883L
Barometer?MS5611
Baud Rate:115200bps
Output Connector:SH1.0-6P
Communication Protocol:UBLOX(GPS)?sI2C(Mag&Baro)
Output Frequency:10Hz
MAG Alignment?CW 180ɳ flip
Speed Accuracy:0.05 m / s
Horizontal positioning accuracy:horizontal <2.5M, SBAS < 2.0M
Timing Accuracy:30 ns
Receiving Sensitivity:Trace -162dBm, Capture-160dBm
Dynamic Characteristics:Max Height:50000m, Max Speed:500m/s
Max Acceleration:4G
Size:22mm x 22mm x 8.5mm
Weight:8g
Features:
Rapid Positioning Speed:The GEPRC GEP-M8Q GPS module offers fast positioning, allowing for quick acquisition of accurate location data. It enhances the efficiency of your FPV drones, multi-rotors, fixed-wing aircraft, and other model products.
Stable Connection:This GPS module ensures a stable connection, providing reliable and uninterrupted communication between your devices and the GPS system. Enjoy consistent and precise navigation for your aerial activities.
Advanced Design:The GEP-M8Q features a unique appearance design that sets it apart from other GPS modules. Its sleek and modern look adds style and sophistication to your drone setup.
Compact and Lightweight:With its small size and lightweight construction, the GEP-M8Q is designed to minimize weight and size impact on your drones or other devices. It offers optimal performance without compromising maneuverability.
Convenient Terminal Design:The SH1.0-6Pin terminal design eliminates the need for soldering, making installation hassle-free and convenient. It simplifies the setup process, saving you time and effort.
Package Includes:
1 x M8Q GPS module
1 x SH1.0-6Pin terminal cable
1 x User Manual
1 x GEPRC Sticker
2 x Heat shrink tube
