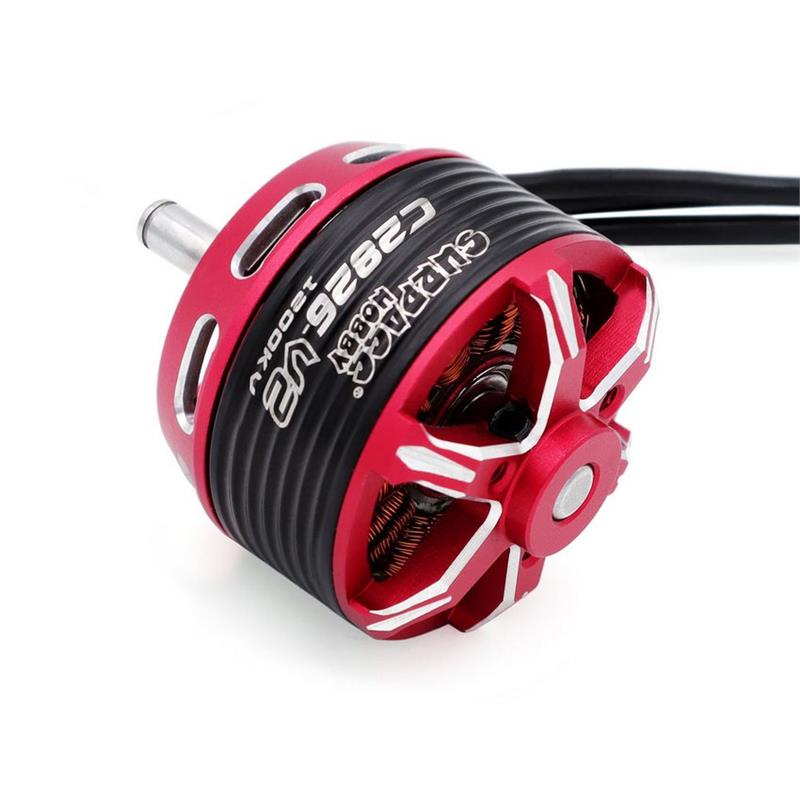

SURPASS-HOBBY C28 Series V2 C2826 1000KV/ 1200KV/ 1350KV/ 1900KV Outrunner Brushless Motor 2-3S for RC Airplane
Overview:
Brand:SURPASS-HOBBY
Model:C2826-V2
Item Number:SP-228260-01
KV(RPM/Volt):1000V, 1200KV, 1350KV, 1900KV (optional)
Specifications:

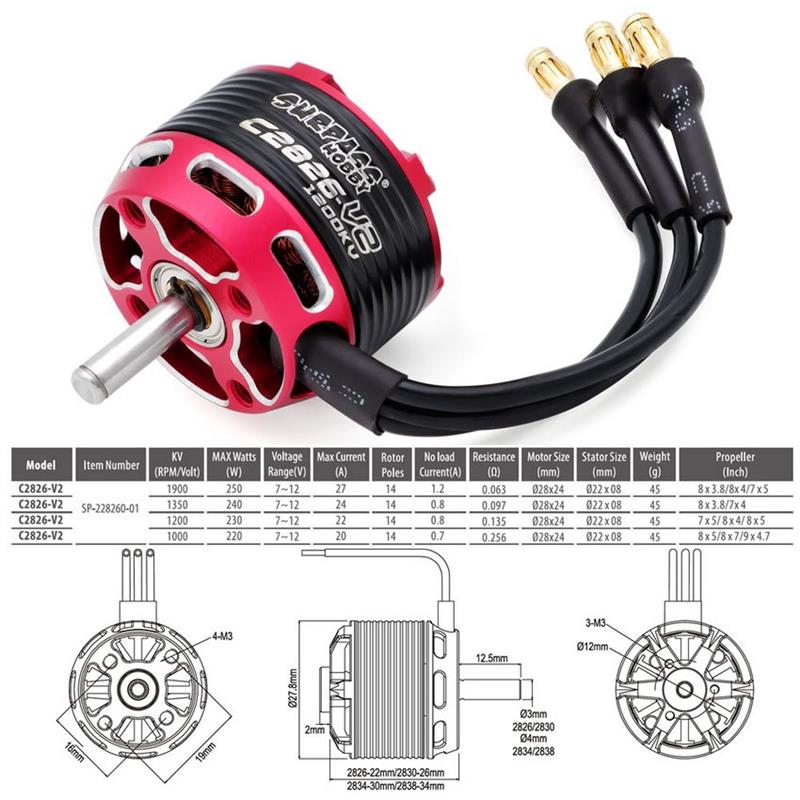

KV | Max Watts(W) | Voltage Range(V) | Max Current(A) | Rotor Poles | No Load Current(A) | Resistance(??) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Propeller(Inch) |
1900 | 250 | 7~12 | 27 | 14 | 1.2 | 0.063 | 28×24 | 22×08 | 45 | 8×3.8/8×4/7×5 |
1350 | 240 | 7~12 | 24 | 14 | 0.8 | 0.097 | 28×24 | 22×08 | 45 | 8×3.8/7×4 |
1200 | 230 | 7~12 | 22 | 14 | 0.8 | 0.135 | 28×24 | 22×08 | 45 | 7×5/8×4/8×5 |
1000 | 220 | 7~12 | 20 | 14 | 0.7 | 0.256 | 28×24 | 22×08 | 45 | 8×5/8×7/9×4.7 |
Features:
– 14 Pole Hi-torque rotor design, stable output power.
– Fits all fixed wing aircraft model.
– CNC machine 6061 T-six aluminum front and rear cover.
English Manual, Click Here
Package Includes:
1x SURPASS-HOBBY C2826 V2 Brushless Motor
Additional information
Weight | 0.1 kg |
---|---|
KV: No selection | 1000KV, 1200KV, 1350KV, 1900KV |
