GPS CSG+ V2 Tame Clock GPS Corrected Signal Generator Dual Channel Adjustable Frequency Reference Source 10KHz-220MHz

GPS CSG+ V2 Tame Clock GPS Corrected Signal Generator Dual Channel Adjustable Frequency Reference Source 10KHz-220MHz
Features:
Step into the world of precision with our GPSDO GPS Tame Clock. Based on the open-source design found here, this tool combines the accuracy of GPS technology with advanced signal generation.
Highly Adjustable Frequency:Our GPS disciplined oscillator is a true power source, boasting an adjustable frequency range of 10KHz-220MHz. Its dual-channel capability allows independent adjustment for each channel, making it the perfect tool for high-precision instruments and audiophile audio equipment.
Robust Support:Equipped to support both Beidou and GPS , this GPSDO ensures enhanced accuracy and performance.
User-friendly Experience:Save up to 5 frequencies for each channel to recall at your convenience, making it easier to achieve the perfect frequency.
Diverse Backlit Display:The LCD screen comes with either a green or white backlight. Items are shipped at random unless specified in the order.
Specifications:
Power Supply Voltage:DC8-13V
Power Consumption:<150mA
Adjustable Frequency:10KHz-220MHz
Frequency Accuracy:??0.2Hz
Output Level:12dBm??2dB (can be customized to any value from -10dBm to 10dBm; amplitude can be calibrated)
Frequency Synthesizer Crystal Oscillator:TCXO
Phase Noise:-132dBc at 10KHz
Output Type:Square Wave
Harmonic Rejection:Even harmonics are better than -50dBc and odd harmonics are better than -10dBc
Package Includes:

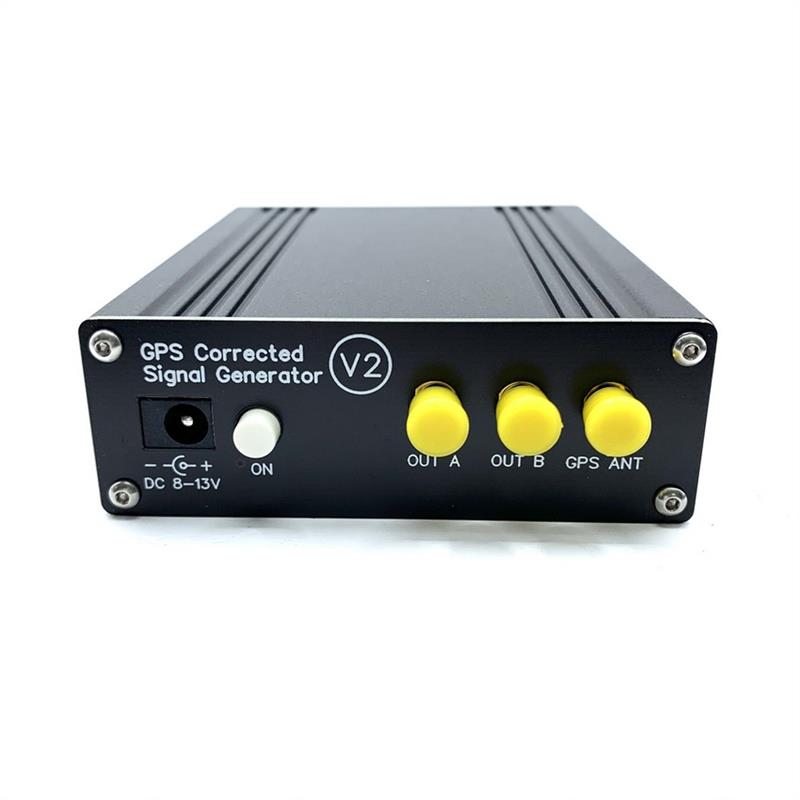

1 x GPSDO GPS Tame Clock Main Unit
1 x GPS Antenna (3m/9.8ft feeder)
1 x Power Supply (110-240V, US specification plug. European customers will need to provide their own adapter)
