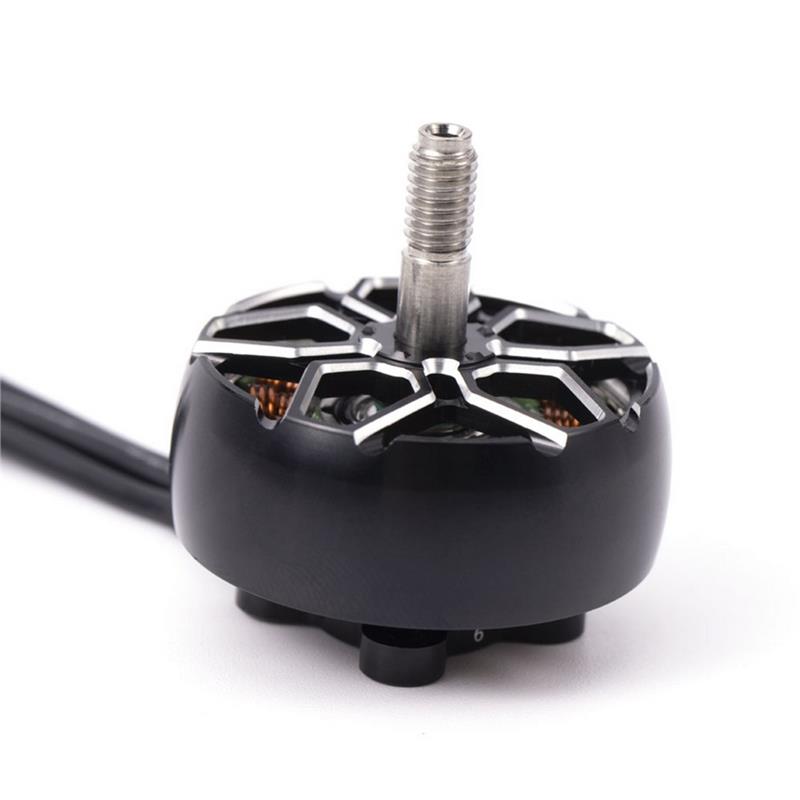

iFlight XING2 2809 1250KV 6S Cinelifter Brushless Motor for Long Range Cinematic RC Drone FPV Racing
Specifications:( Drawing Picture and Test Table)
Brand:iFlight
Model:XING2 2809
KV:1250KV
Weight(included wire):60.7g
Dimension:??35.33*21.7mm
Interphase Resistance:65.46m??
Input Volts:24V
Peak Current:49.23A
Max Watt:1147.1W
Mounting Holes:19*19 ??3mm
Rotor Specifications:Unibell
Shaft Diameter:4mm
Shaft Protruding Length:15mm
Lead:260mm/18AWG
Magnet:N52H Curved
Configuration:12N14P
Bearing Type:NSK
Bearing Specification:??11??55
Winding:Single Strand copper winding
Features:
Powerful Performance:1250KV Motor for optimal power and precision.
Sturdy Design:5mm titanium alloy shaft and 7075 aluminum bell for increased crash resistance.
Quality Components:Long-lasting NSK 11x5x5 bearings and center slotted N52H curved arc magnets for improved performance.
Motor Protection:Features XING O-ring bearing gap protection and motor wires protector.
Balanced Operation:Dynamically balanced for a smoother flight experience.
Package Includes:
1 x XING2 2809 Brushless Motor
4 x M3x8 screws
1 x M5 Flange Nut
Additional information
| Weight | 0.1 kg |
|---|---|
| Quantity: No selection | 1 PC |
| KV: No selection | 1250KV |
