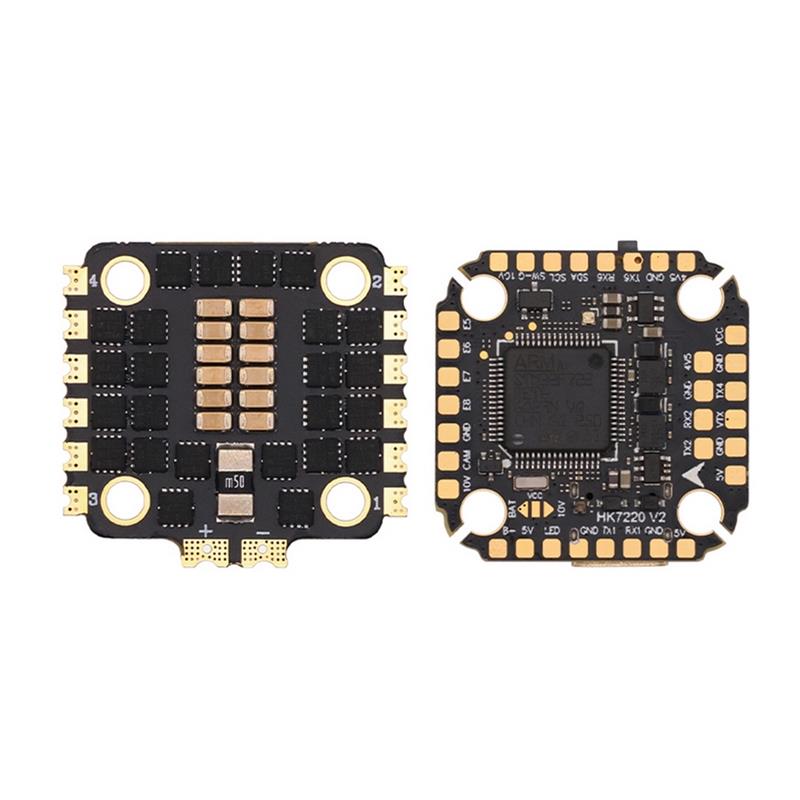

20x20mm HAKRC 35A Mini F7 DJI Stack F7220V2 F7 2-6S Flight Controller & 8B35A 35A BL_S 4in1 ESC for RC FPV Racing Drone
Specifications:
Brand:HAKRC
Model:35A Mini F7 DJI Stack
Net Weight:13.2g
Package Weight:56g
Package Size:?64*64*35mm
Mounting Hole Spacing:20*20mm
Hole Diameter:M4
| F4 Flight Controller | Mounting Hole Spacing:20*20mm ??4mm Processor:STM32F722RET6 Gyroscope:ICM42688 Dual Gyroscope BEC:5V/2A ; 10V/2A Storage:16MB Input Voltage:2S?6S Firmware:HAKRCF722V2 Uart Ports:6 Supports external programmable LEDs Comes with a 6P sky socket |
| 35A 4in1 ESC | Mounting Hole Spacing:20mm*20mm ??4mm Continuous Current:35A Peak Current:40A (10s) Input Voltage:2S-6S Current Ratio:300 Supports ESC telemetry data transmission Configuration Software:BLHeliSuite16.7.14.9.0.3 Supports signal modes:PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 |
Features:
High-Speed Processor:With an STM32F722RET6 processor, enjoy precise, responsive drone control for an improved flight experience.
Dual Gyroscope:The ICM42688 dual gyroscope offers enhanced stability for high-performance flight maneuvers.
Efficient ESC:Our kit includes a 35A ESC that supports a peak current of 40A for up to 10 seconds, suitable for high-powered drones.
Telemetry Data Transmission:Our ESC supports telemetry data transmission, providing vital feedback for fine-tuning your flight performance.
Broad Compatibility:Supports signal modes like PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, and input voltages from 2S to 6S, making it a versatile choice for different drones.
Package Includes:
1x HAKRC 35A Mini F7 Stack
8x M2 Orange Shock Absorption
1x 8P Cable
1x DJI 6P Connection Cable
1x 35v270uf Capacitor
1x XT60 Power Plug
1x Red and Blue Power Cable
4x M2x25mm Screws
4x Black Nuts
Additional information
| Weight | 0.051 kg |
|---|
