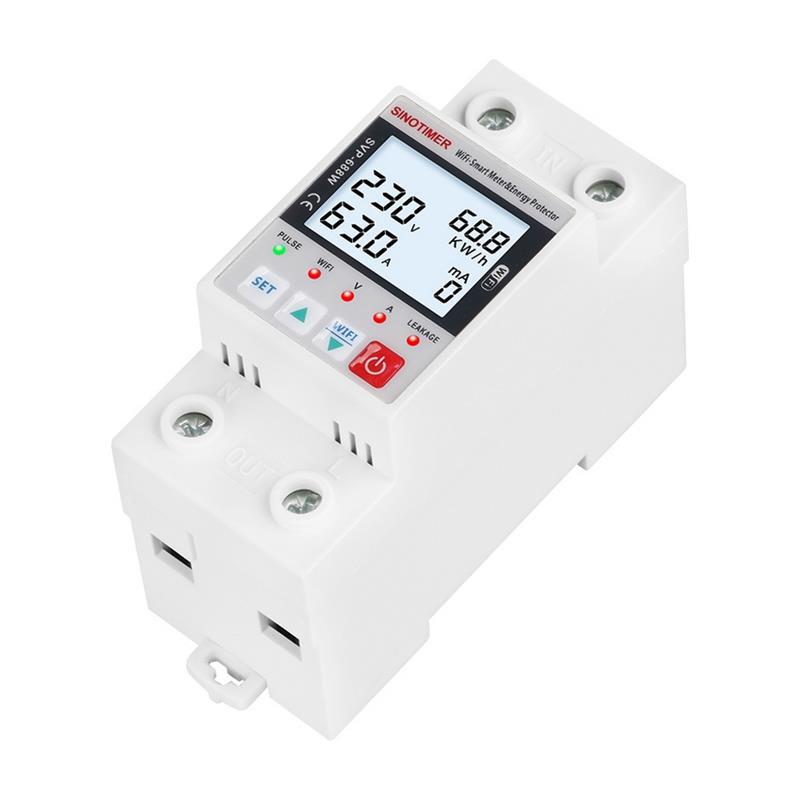

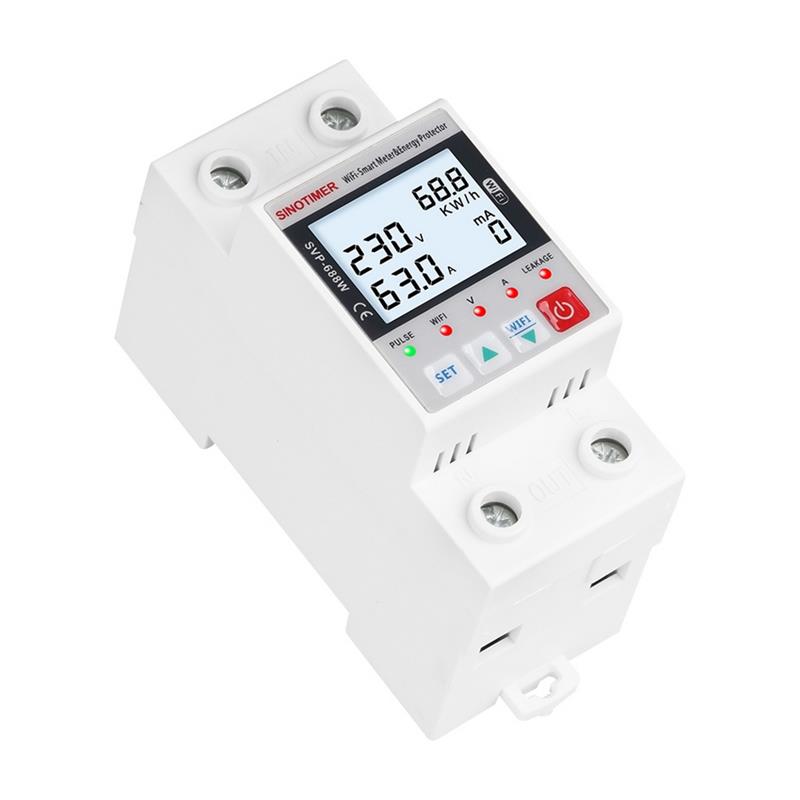

SINOTIMER SVP688 WiFi Energy Meter Remote Control Voltage/Current/Leakage Protection Real-Time Monitoring Adjustable Parameters Three Timing Modes Ensure Efficient Energy Management

SINOTIMER SVP688 WiFi Energy Meter Remote Control Voltage/Current/Leakage Protection Real-Time Monitoring Adjustable Parameters Three Timing Modes Ensure Efficient Energy Management
Features:
Remote Control and Monitoring:The SVP688 WiFi Energy Meter allows you to remotely control the ON/OFF function from anywhere using your smartphone. Stay in control of your devices even when you’re away.
Real-Time Monitoring:Review current, voltage, leakage current, and total kWh consumption directly from your phone. Keep track of your energy usage and make informed decisions for efficient energy management.
Adjustable Protection Parameters:Customize the over-voltage, under-voltage, over-current, and leakage current protection settings either through the app or directly on the protector itself.
Voltage Protection Range:The under-voltage protection range is adjustable from 145V to 210V (default:175V), while the over-voltage protection range is adjustable from 240V to 300V (default:275V).
Current Protection Range:The over-current protection range is adjustable from 1A to 63A (default:63A), providing reliable protection for various electrical loads.
Electric Leakage Protection:Enjoy the added safety of electric leakage protection, with an adjustable range of 10mA to 99mA (default:50mA). This feature can be turned off if not required.
Reconnect Time and Protect Times:Set the desired reconnect time (delay on time) from 10s to 99s (default:30s), and adjust the over-current and leakage protect times from 1 to 30 (default:5). These features can also be turned off.
Over Temperature Protection:Set the over-temperature protection range from 10?FC to 85?FC through the app. This parameter can only be adjusted using the app.
Three Timing Modes:Choose between timing mode, countdown mode, or cycle timing to conveniently manage the operation of your devices.
Specifications:
Brand:SINOTIMER
Model:SVP688
Rated Voltage:230VAC
Rated Current:63A
WiFi Compatibility:Smartlife/TUYA
Leakage Protection Range:10mA – 99mA (adjustable, default:50mA)
Reconnect Time (Delay On Time):10s – 99s (adjustable, default:30s)
Over Current and Leakage Protect Times:1 – 30 (adjustable, default:5)
Over Temperature Protection:10?FC – 85?FC (app adjustable only)
Timing Modes:Timing Mode, Countdown Mode, Cycle Timing
Optional Type:
Type A:No Wifi with Light
Type B:Wifi with Light
Type C:Wifi without Light
Package Included:
1 x Energy Metering Switch Timer (Type as your choice)
